Installing Front Power Windows

Fit power windows unit in the door.

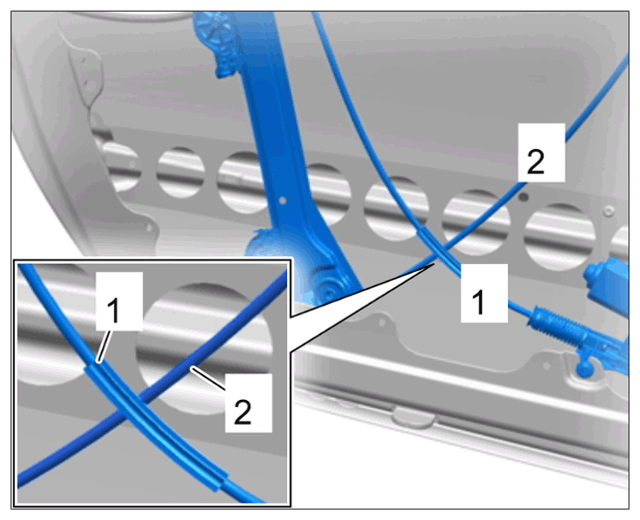

Make sure that the cables are arranged in the position shown. The cable guide with protection -1- must be positioned before the cable guide without protection -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Loosely screw in fastening parts.
Tighten fastening points to the specified tightening torque in the sequence shown.

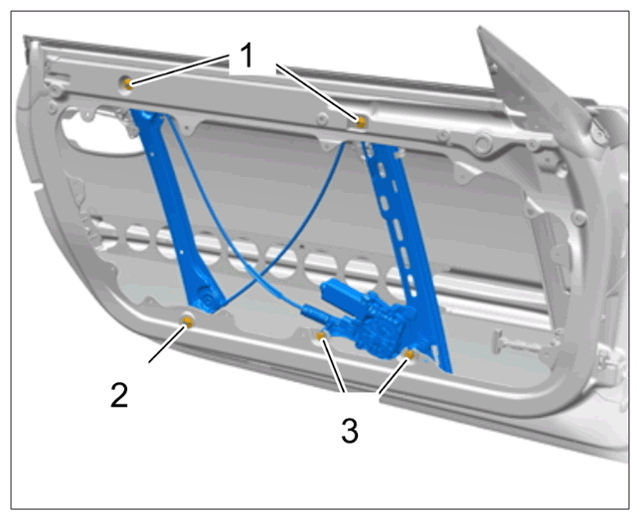

Fig 1: Front Power Windows Screws Tightening Sequence

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

4.1 Tighten fastening nuts for power windows unit -1 and 2- to the specified torque > Tightening torque 9.7 Nm (7.5 ftlb.) +/- 0.9 Nm (0.5 ftlb.) .
4.2 Tighten fastening screws for window regulator motor -3- to the specified torque > Tightening torque 4.7 Nm (3.5 ftlb.) +/- 0.5 Nm (0.3 ftlb.) .
