Removing And Installing Luggage Compartment Light

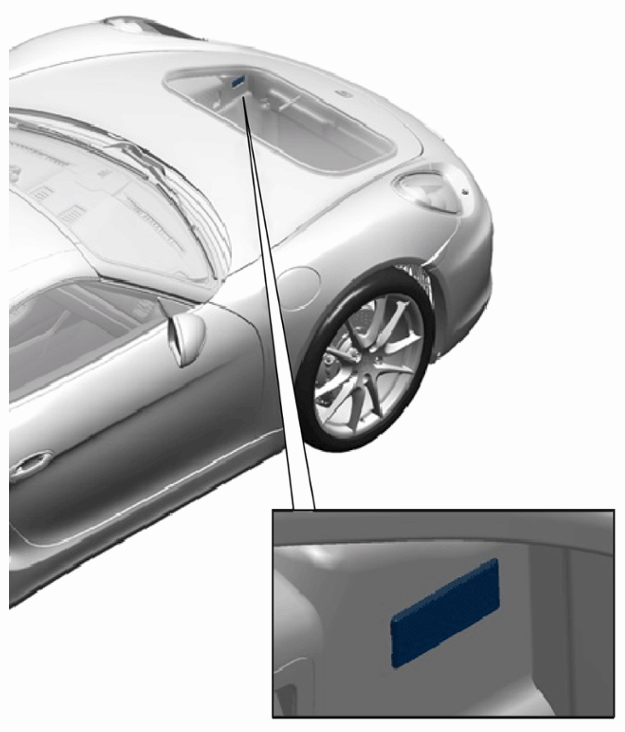

G14956272Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unclip luggage compartment lamp -arrow-  and pull it out of the trim panel.
    G14956273Courtesy of PORSCHE CARS NORTH AMERICA, INC.

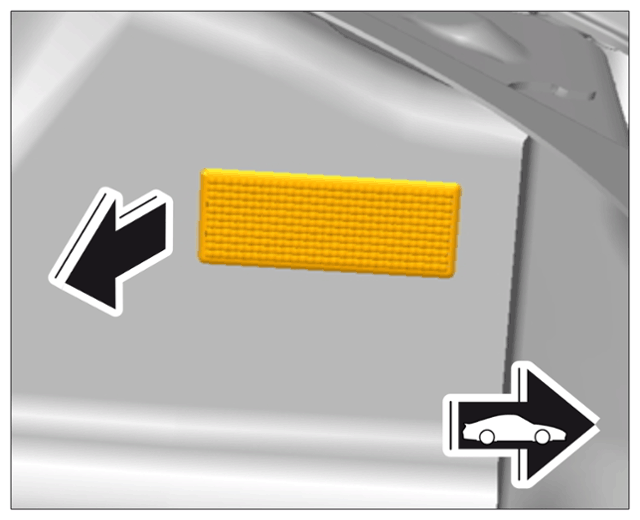

  2. Disconnect electric plug connection and remove luggage compartment lamp.
  3. Installation is performed in reverse order.
