Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Retaining bracket to retaining frame M6 x 20 Tightening torque 13 Nm (9.5 ftlb.)
Retaining bracket and passenger's airbag unit to retaining frame M6 x 30 Tightening torque 10 Nm (7.5 ftlb.)
Retaining bracket to dashboard M5 x 20 Tightening torque 3 Nm (2 ftlb.)
Retaining bracket to passenger's airbag unit M5 x 20 Tightening torque 3 Nm (2 ftlb.)

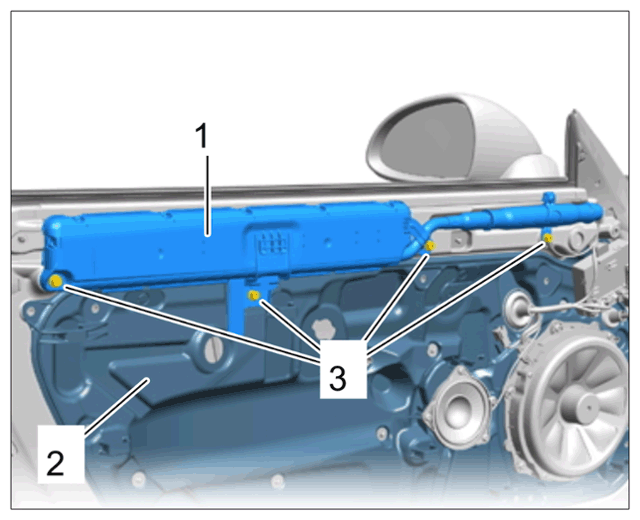

Head airbag to door M6 x 25 Tightening torque 10 Nm (7.5 ftlb.)
G14954879Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for head airbag
Fastening nut for front airbag sensor   Tightening torque 9 Nm (6.5 ftlb.)
Fastening nut for side airbag sensor   Tightening torque 9 Nm (6.5 ftlb.)
Triggering unit to body Fastening nut Tightening torque 10 Nm (7.5 ftlb.)
Fastening screws for knee airbag on passenger's side Torx screw Tightening torque 13 Nm (9.5 ftlb.)
Fastening screws for knee airbag on driver's side Torx screw Tightening torque 13 Nm (9.5 ftlb.)
Front side airbag to seat frame   Tightening torque 7.5 Nm (5.5 ftlb.)

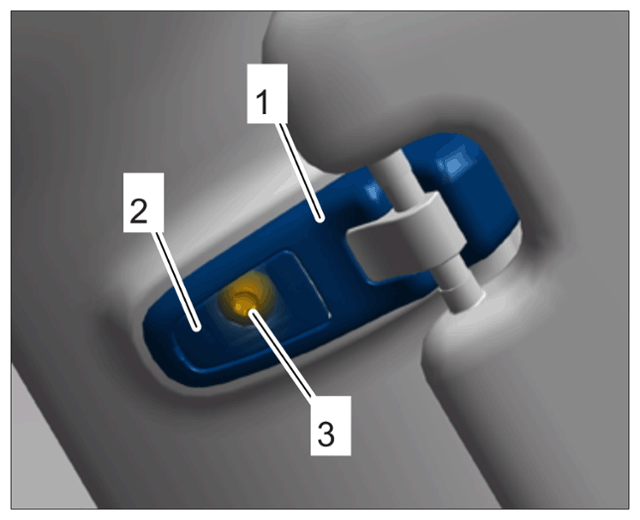

Sun visor bracket, inner   Tightening torque 5.5 Nm (4 ftlb.) +/- 0.5 Nm (0.3 ftlb.)
G14954881Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing inner sun visor bracket

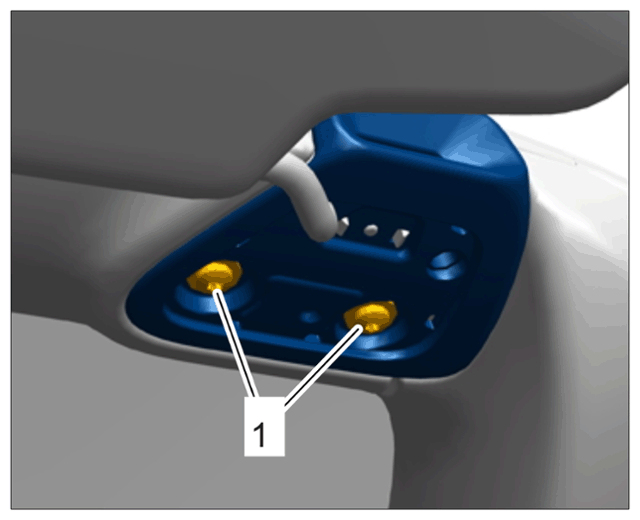

Sun visor bracket, outer   Tightening torque 9.6 Nm (7.5 ftlb.) +/- 0.5 Nm (0.3 ftlb.)
G14954883Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing outer bracket

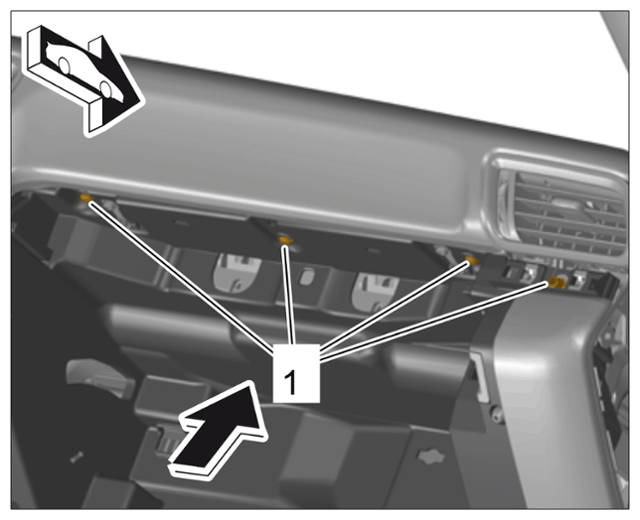

Fastening screws for glove compartment, top   Tightening torque 3.2 Nm (2 ftlb.)
G14954885Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Securing glove compartment at the top

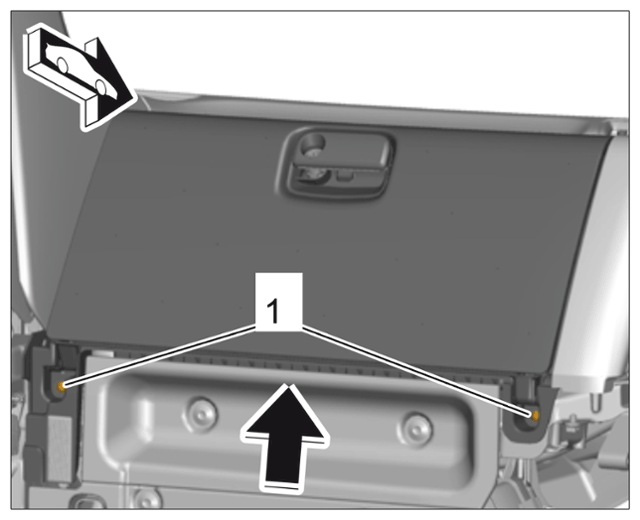

Fastening screws for glove compartment, bottom   Tightening torque 13 Nm (9.5 ftlb.)
G14954887Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Securing glove compartment at the bottom

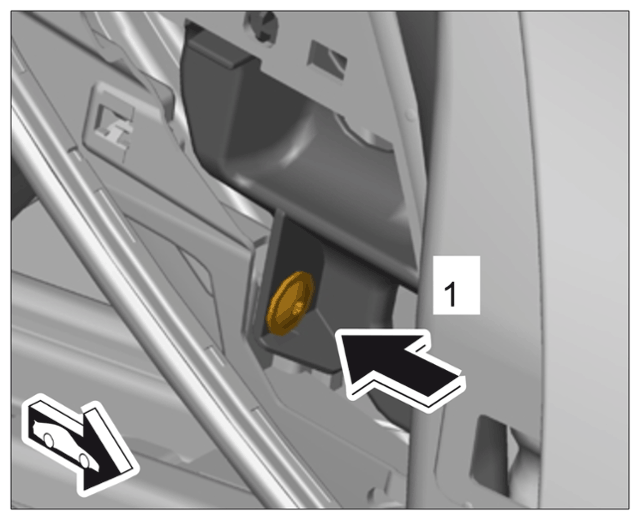

Fastening screw for glove compartment, side   Tightening torque 3.2 Nm (2 ftlb.)
G14954889Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Securing glove compartment at the sides

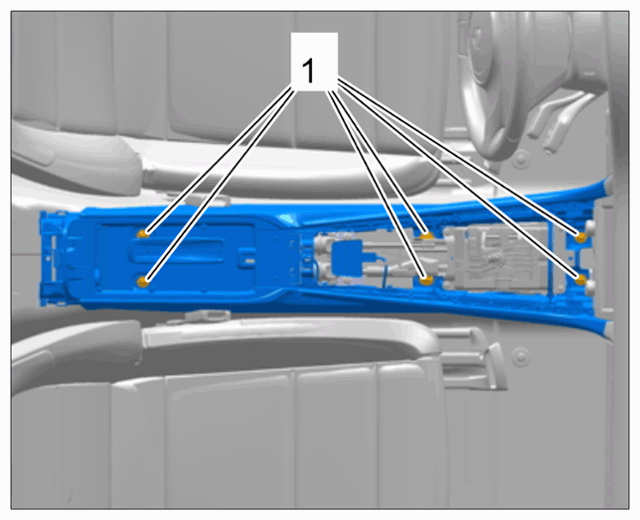

Fastening screw securing centre console at the top to tunnel   Tightening torque 9.7 Nm (7.5 ftlb.) +/- 0.9 Nm (0.5 ftlb.)
G14954891Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosening centre console at the top
Fastening screw for upper part of centre console   Tightening torque 3.2 Nm (2 ftlb.) - 0.3 Nm (0.2 ftlb.)

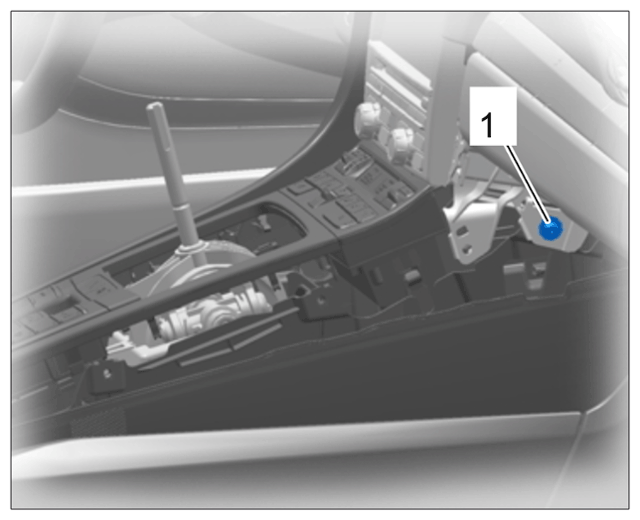

Fastening screw for centre console, front   Tightening torque 3.2 Nm (2 ftlb.) +/- 0.3 Nm (0.2 ftlb.)
G14954893Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosening centre console at the front
Fastening screw securing footwell outlet vent trim   Tightening torque 3.2 Nm (2 ftlb.) +/- 0.3 Nm (0.2 ftlb.)

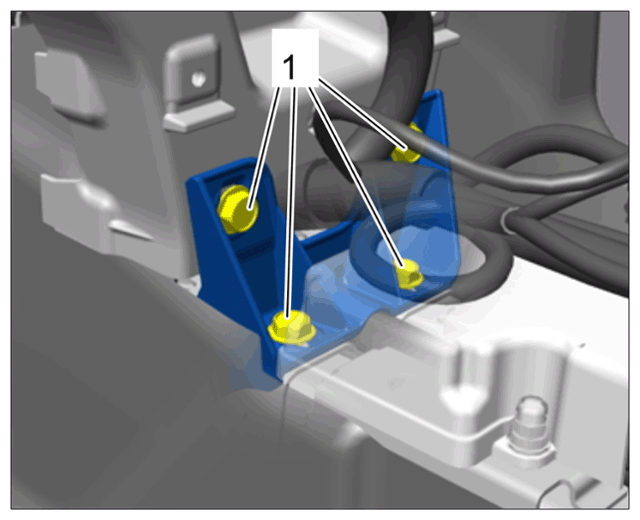

Fastening screws securing tunnel support to body/dashboard bracket   Tightening torque 23 Nm (17 ftlb.)
G14954895Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for upper part of tunnel support

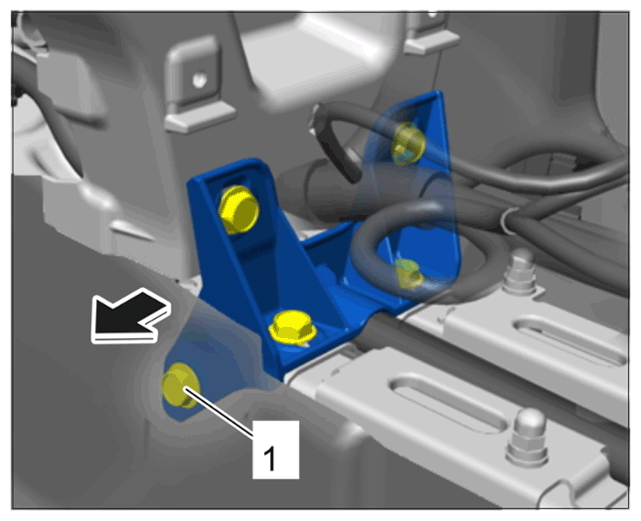

Fastening screw securing tunnel support at the side to body   Tightening torque 23 Nm (17 ftlb.)
G14954897Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for tunnel support at the lower side

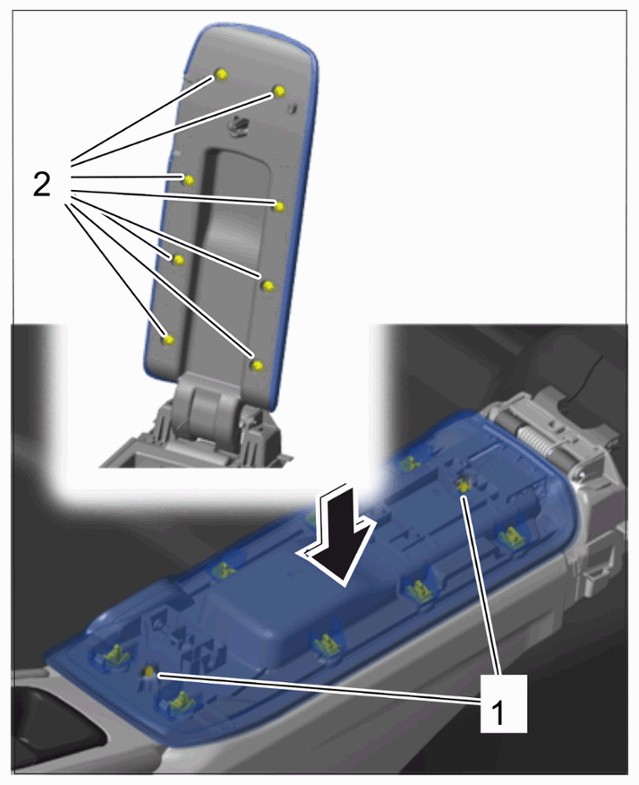

Fastening screws securing upper part of lid to lower part of lid Item 2 Tightening torque 3.2 Nm (2 ftlb.)
G14954899Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installing upper part of lid

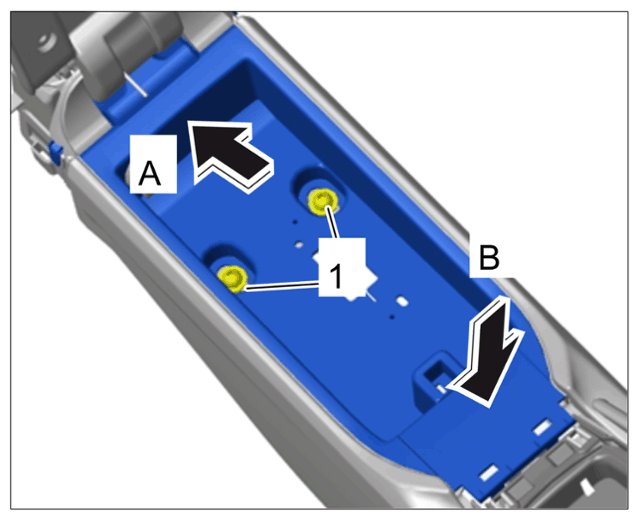

Fastening screw for storage compartment in centre console   Tightening torque 9.7 Nm (7.5 ftlb.)
G14954901Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installing storage compartment

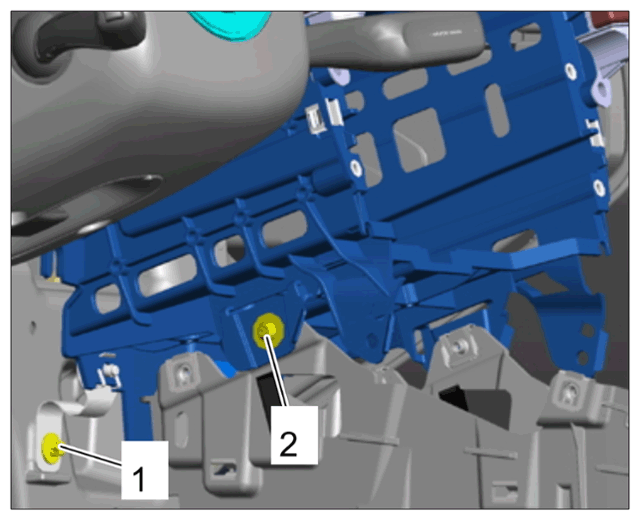

Fastening screws securing upper part of tunnel support to dashboard bracket   Tightening torque 12 Nm (9 ftlb.)
G14954903Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Securing upper part of tunnel support
Fastening screw securing fire extinguisher holder to seat frame   Tightening torque 10 Nm (7.5 ftlb.)
Fastening screw securing tray to fire extinguisher holder   Tightening torque 10 Nm (7.5 ftlb.)
Fastening nuts Item 1; Item 9: M8 hexagon nut Tightening torque 20 Nm (15 ftlb.)
Fastening nuts Item 6: M8 hexagon nut Tightening torque 33 Nm (24 ftlb.)
Fastening screws Item 2; Item 3; Item 5; Item 7; Item 10: Hexagon socket head bolt, M10 x 25 Tightening torque 55 Nm (41 ftlb.)
Fastening screws Item 4; Item 8: Hexagon socket head bolt, M14 x 70 Tightening torque 160 Nm (118 ftlb.)
Impact protection Item 1 Length 215 mm
Impact protection Item 2 Length 185 mm
Impact protection Item 3 Length 370 mm
Impact protection Item 4 Length 177 mm
Impact protection Item 5 Length 170 mm
Protective film for paintwork Item 1 Length 212 mm
Protective film for paintwork Item 2 Length 253 mm
Fastening nut for air intake frame   Tightening torque 5 Nm (3.5 ftlb.) 0.5 Nm (0.4 ftlb.) 0.75 Nm (0.5 ftlb.)

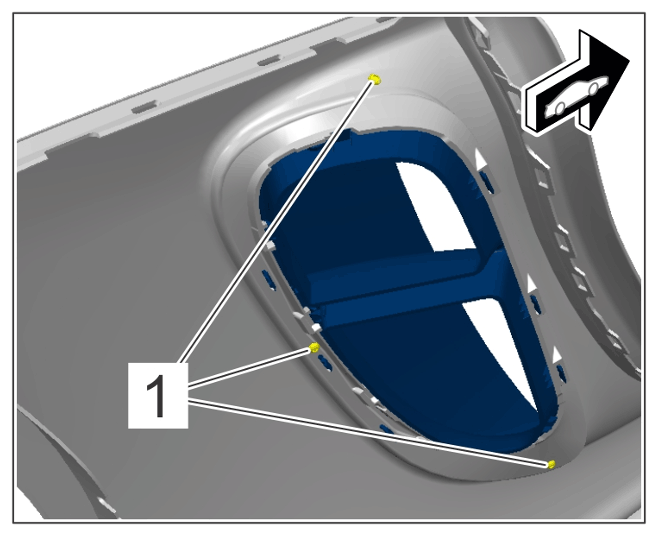

Screws for air grille (side air intake cover) Item 1 Tightening torque 1.6 Nm (1 ftlb.)
G14954905Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
Fastening screw, front   Tightening torque 3 Nm (2.2 ftlb.)
Fastening screws, rear   Tightening torque 3 Nm (2.2 ftlb.)

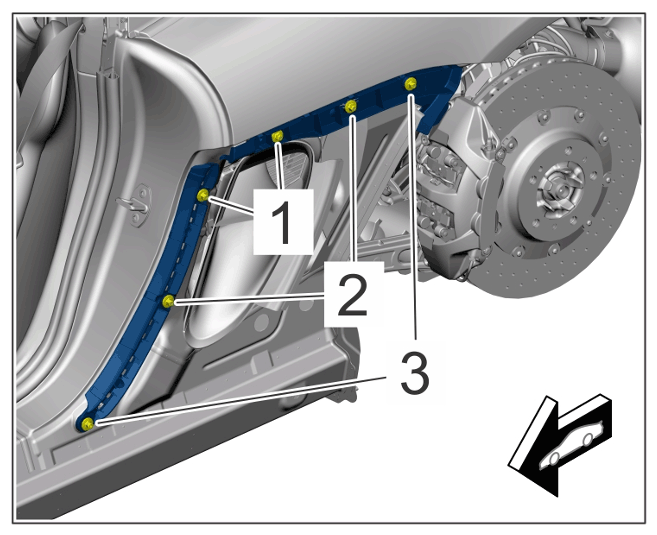

Nuts on retaining strip for door entry guard T6/22 x 10.5/Tightening sequence, Item 1, 2, 3 Tightening torque 2.5 Nm (1.8 ftlb.)
G14954907Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts on door entry guard retaining strip

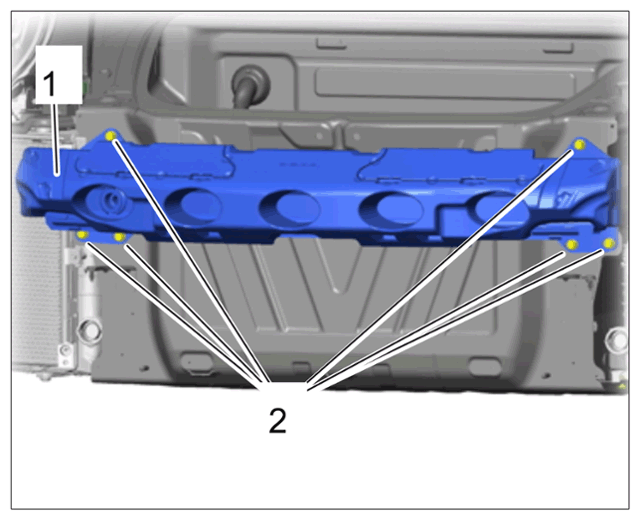

Fastening screw for securing bumper to bodyshell Item 2 Tightening torque 23 Nm (17 ftlb.) +/- 2 Nm (1.5 ftlb.)
G14954909Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front bumper

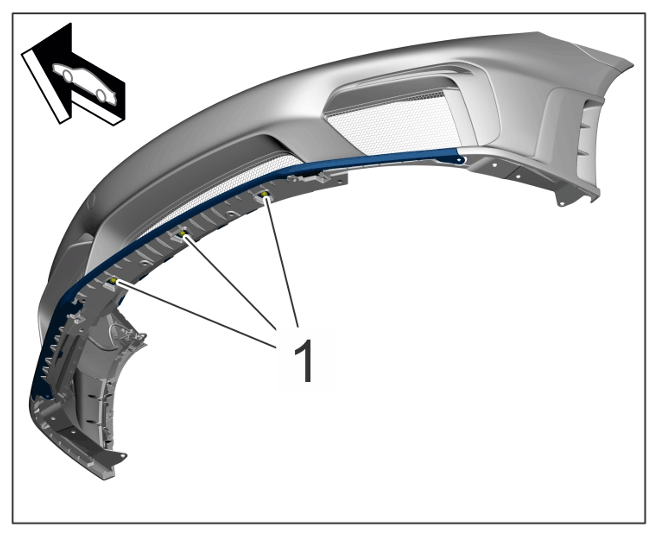

Screws for front spoiler Item 1 Tightening torque 3.2 Nm (2.4 ftlb.)
G14954911Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bolts

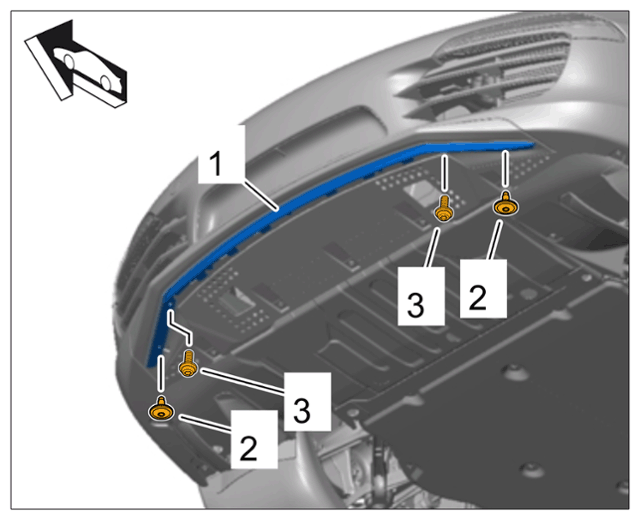

Fastening screws for front spoiler Items 2 + 3 Tightening torque 2.7 Nm (2 ftlb.) +/- 0.2 Nm (0.1 ftlb.)
G14954913Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosening front spoiler

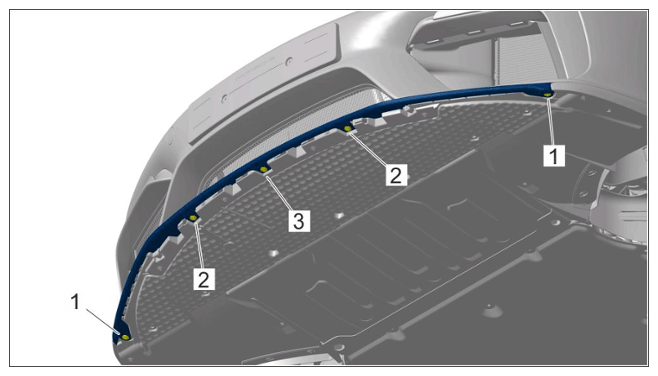

Fastening screws for front spoiler Observe the specified tightening sequence Tightening torque 3.2 Nm (2.4 ftlb.)
G14954915Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws for front spoiler

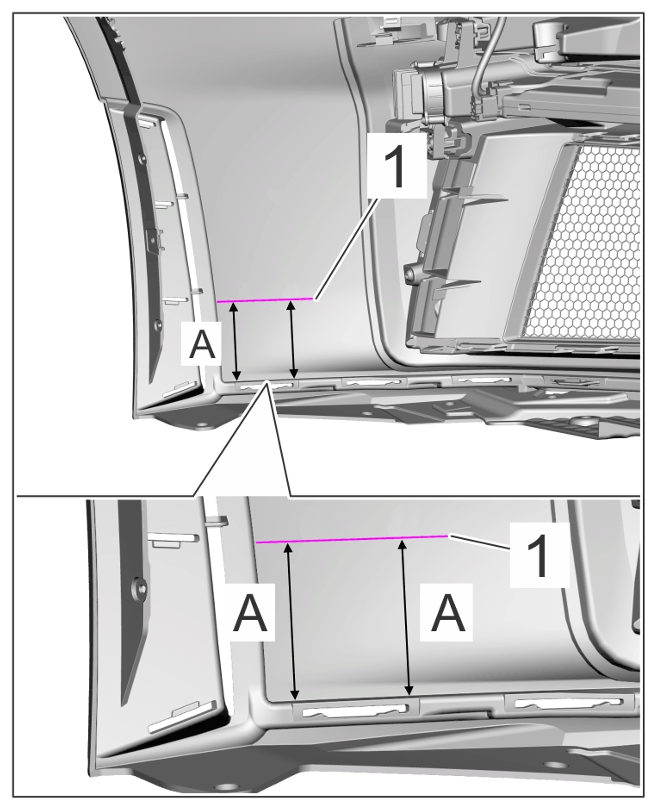

Distance marking line Item A Length 64 mm
G14954917Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Marking line

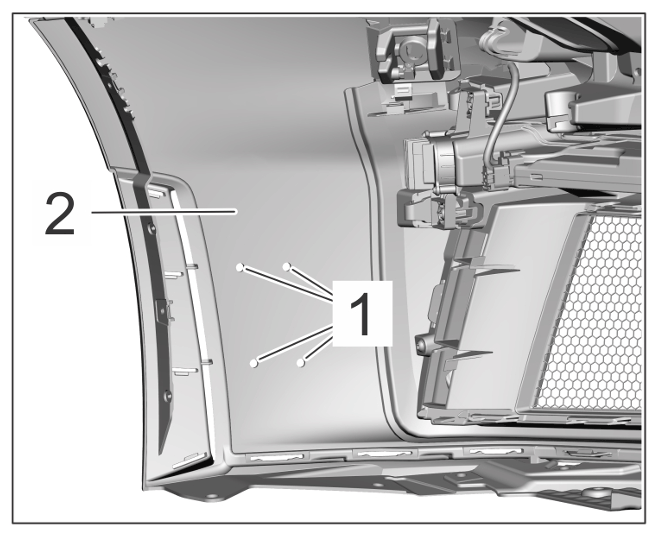

Bore diameter Item 1 Diameter 8 mm
G14954919Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Holes

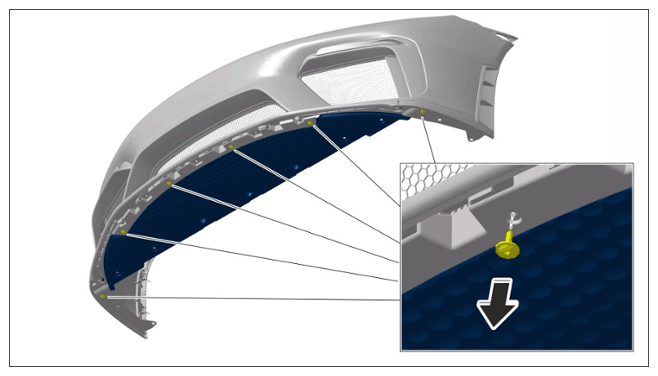

Lower part on front bumper   Tightening torque 2.5 Nm (1.8 ftlb.)
G14954921Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lower part of front apron

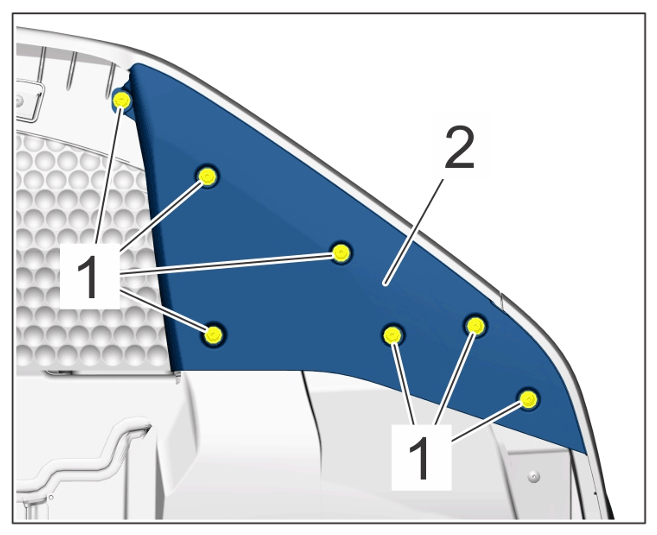

Screws on front plate (at the sides) Item 1 Tightening torque 2.8 Nm (2.1 ftlb.)
G14954923Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bolts

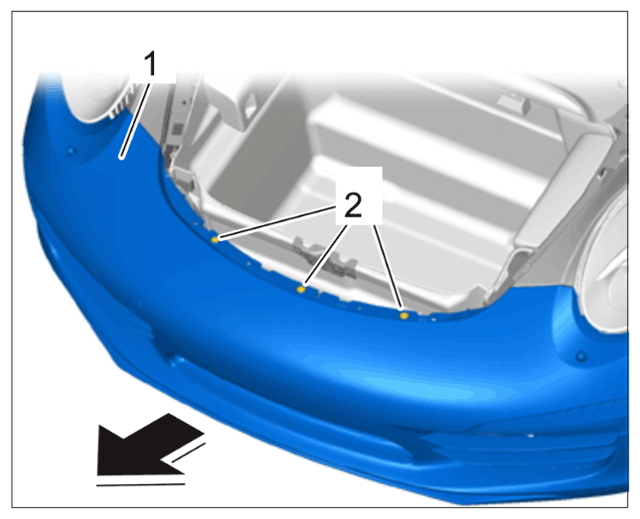

Fastening screw securing front apron to body Item 2 Tightening torque 3.2 Nm (2.4 ftlb.) +/- 0.6 Nm (0.4 ftlb.)
G14954925Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosening front bumper at the top

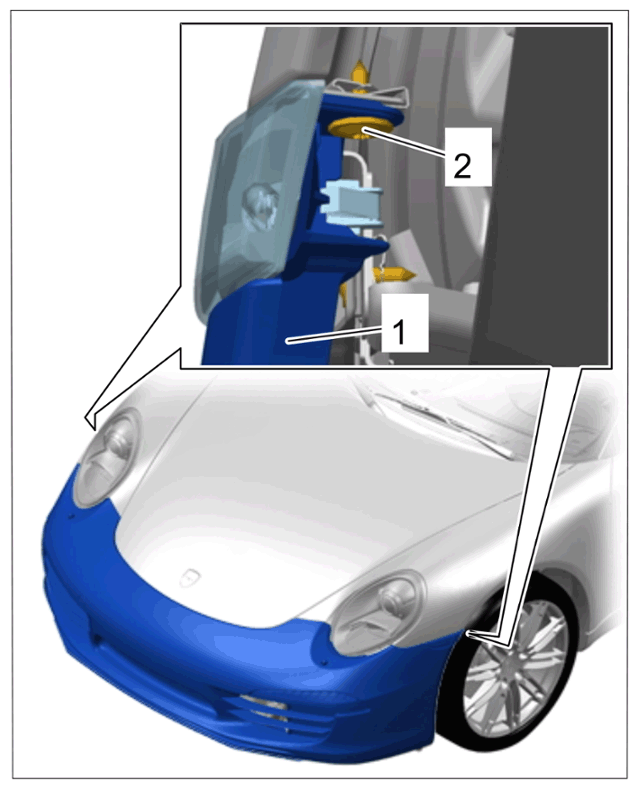

Fastening screw securing front bumper to body Item 2 Tightening torque 3.2 Nm (2.4 ftlb.) +/- 0.6 Nm (0.4 ftlb.)
G14954927Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosening front bumper at the sides

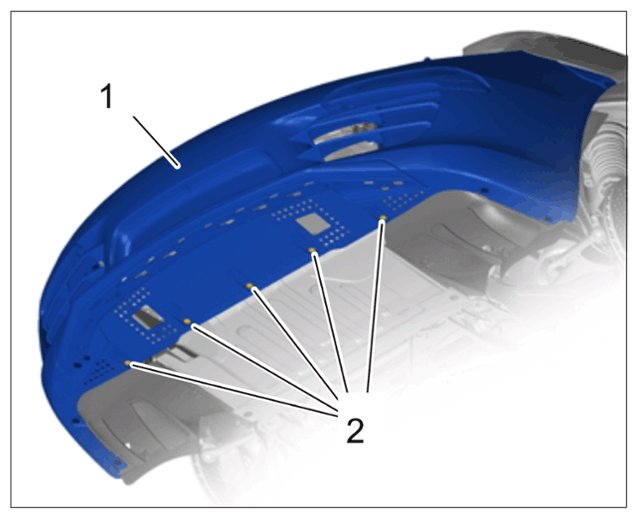

Fastening screw bumper front apron to body Item 2 Tightening torque 3.2 Nm (2.4 ftlb.) +/- 0.6 Nm (0.4 ftlb.)
G14954929Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosening front bumper at the bottom

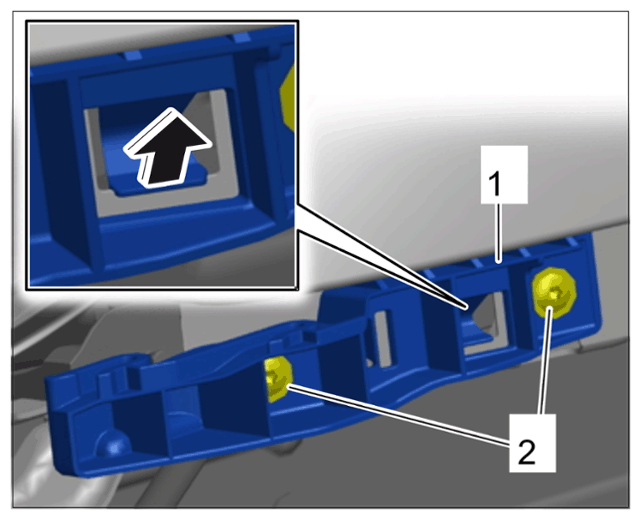

Fastening screws on retaining strip Item 2 Tightening torque 3.2 Nm (2.4 ftlb.) +/- 0.6 Nm (0.4 ftlb.)
G14954931Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing retaining strip

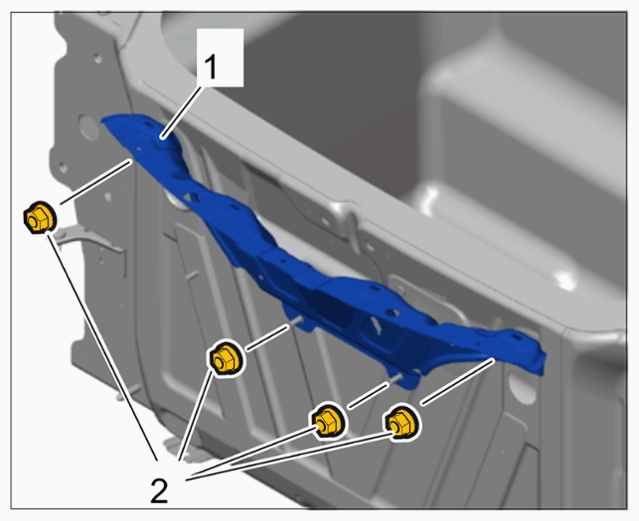

Fastening nut securing front retaining strip to body Item 2 Tightening torque 10 Nm (7.4 ftlb.)
G14954933Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing front retaining strip

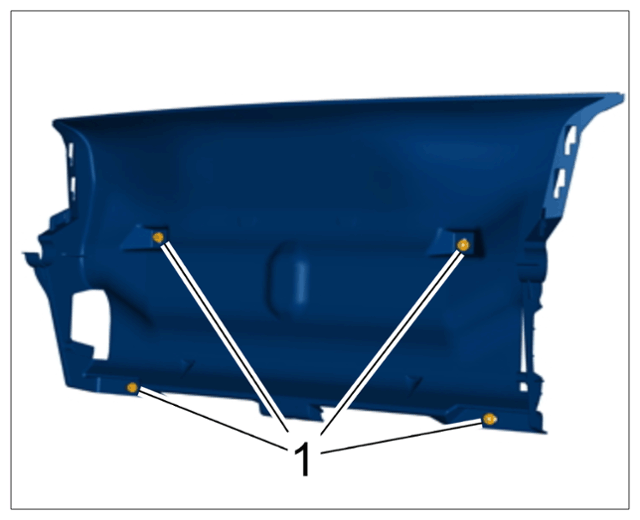

Fastening nuts securing front radiator frame to body Item 1 Tightening torque 9.7 Nm (7.2 ftlb.)
G14954935Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tightening torque for front radiator frame

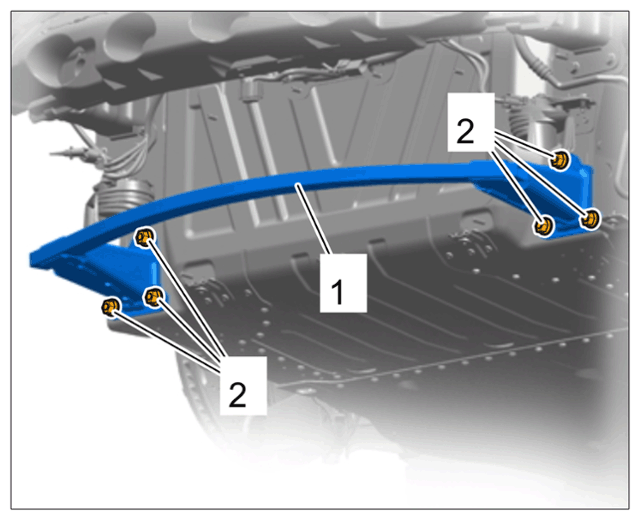

Fastening nut for pedestrian protection Item 2 Tightening torque 23 Nm (17 ftlb.)
G14954937Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing pedestrian protection

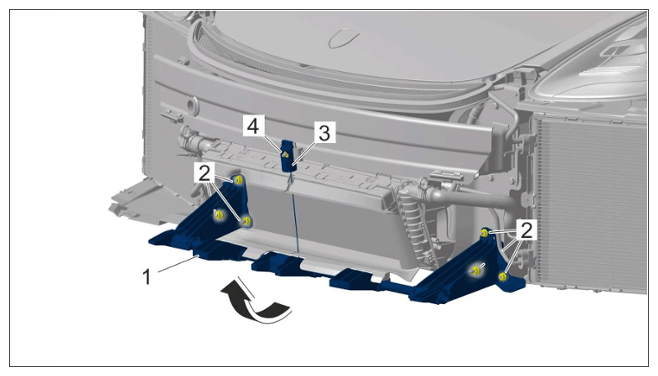

G14954938Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tension rope

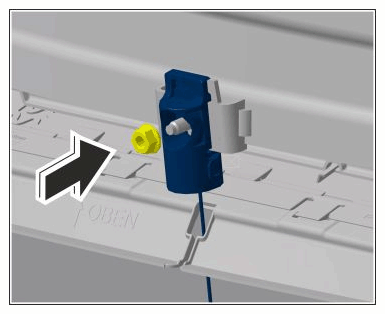

Fastening nut on pedestrian protection clamping device   Tightening torque 23 Nm (17 ftlb.)
G14954941Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tensioning device mounting

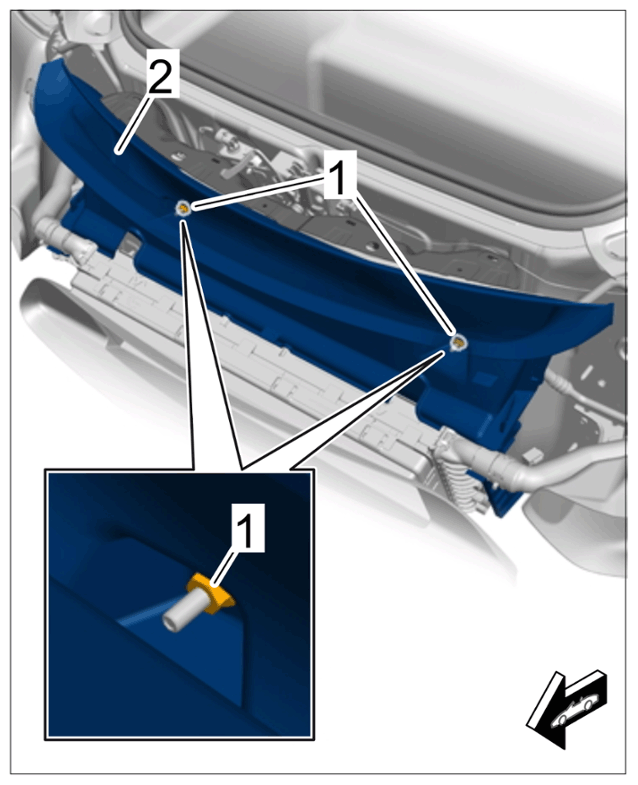

Fastening nut for air guide   Tightening torque 10 Nm (7.4 ftlb.)
G14954943Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosening air guide

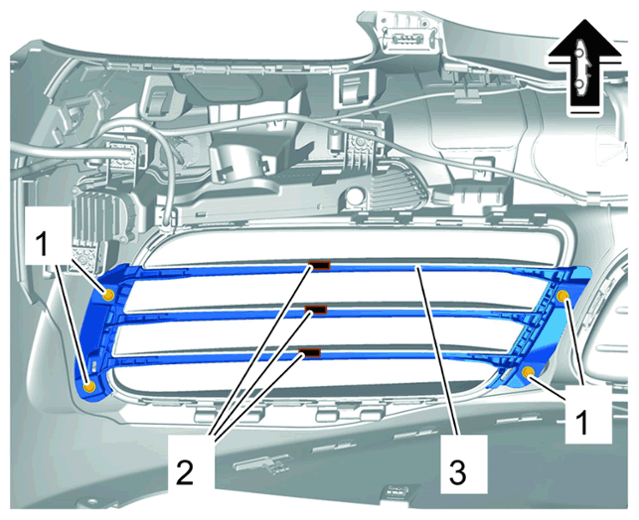

Fastening screws securing air grille to front bumper Item 1 Tightening torque 2.5 Nm (1.8 ftlb.) +/- 0.25 Nm (0.2 ftlb.)
G14954945Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing inner part of air grille

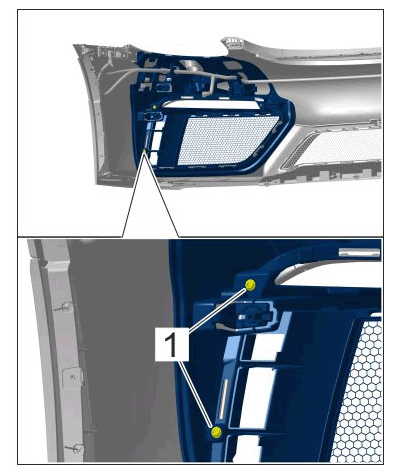

Front air grille (at the sides) to front apron   Tightening torque 2.5 Nm (1.8 ftlb.)
G14954947Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws on front air grille (at the sides)

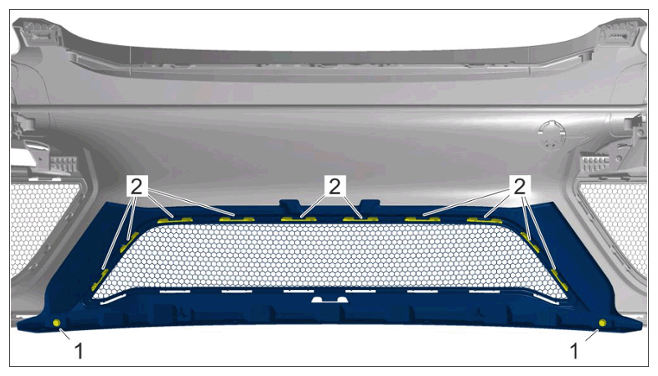

Radiator grille on front apron   Tightening torque 2.5 Nm (1.8 ftlb.)
G14954949Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Radiator grille

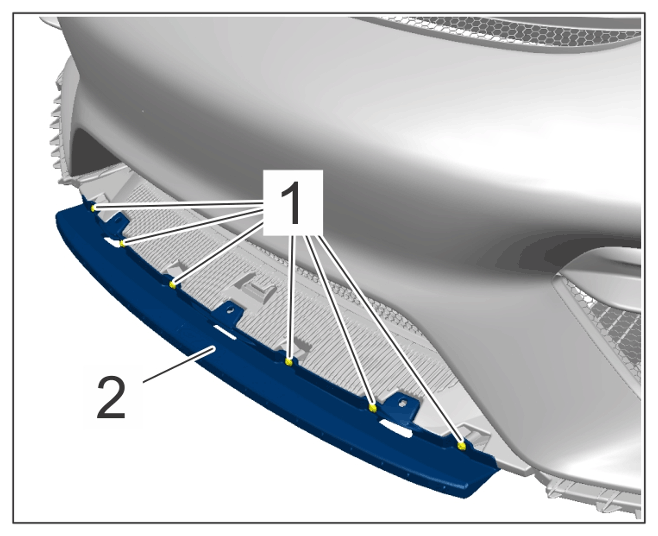

Front spoiler (reinforcement) Item 1 Tightening torque 2.8 Nm (2.1 ftlb.)
G14954951Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bolts

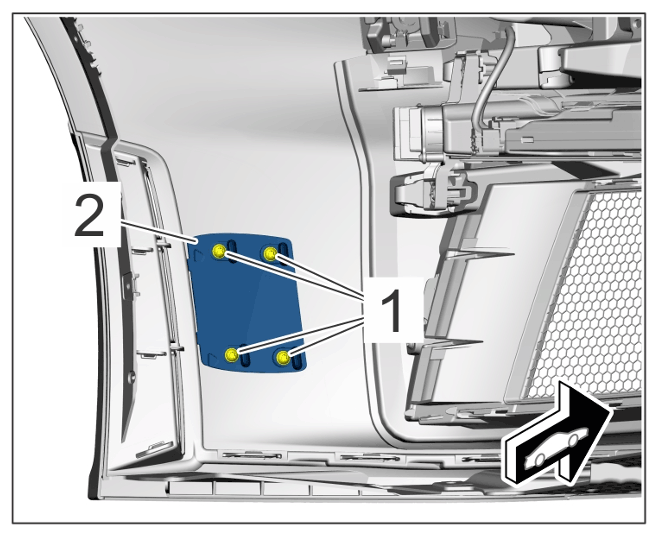

Screws on retainer plate for front spoiler (at the sides) Item 1 Tightening torque 2.5 Nm (1.8 ftlb.)
G14954953Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Retainer plate

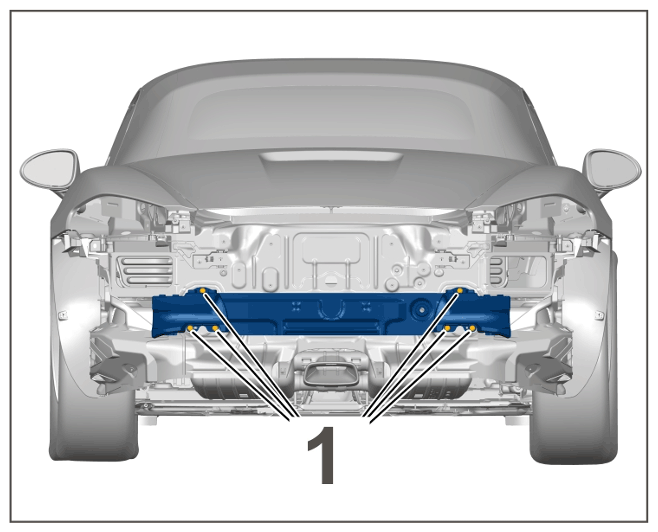

Fastening screws on rear bumper Item 1 Tightening torque 23 Nm (17 ftlb.)
G14954955Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws

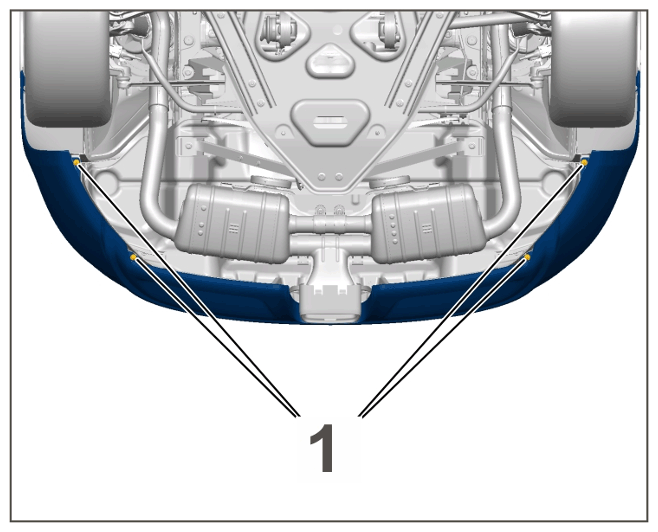

Fastening screws at bottom of rear apron   Tightening torque 3.2 Nm (2.4 ftlb.)
G14954957Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws at bottom

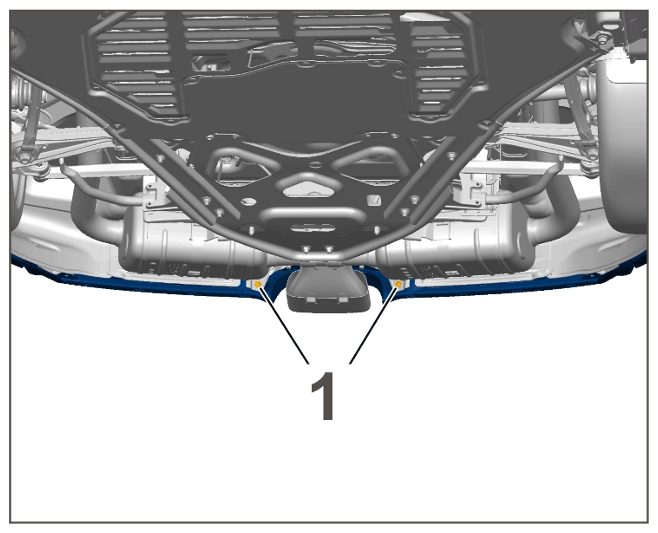

Fastening screws at bottom of rear bumper at bottom   Tightening torque 4.5 Nm (3.3 ftlb.)
G14954959Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lower fastening screws at the centre

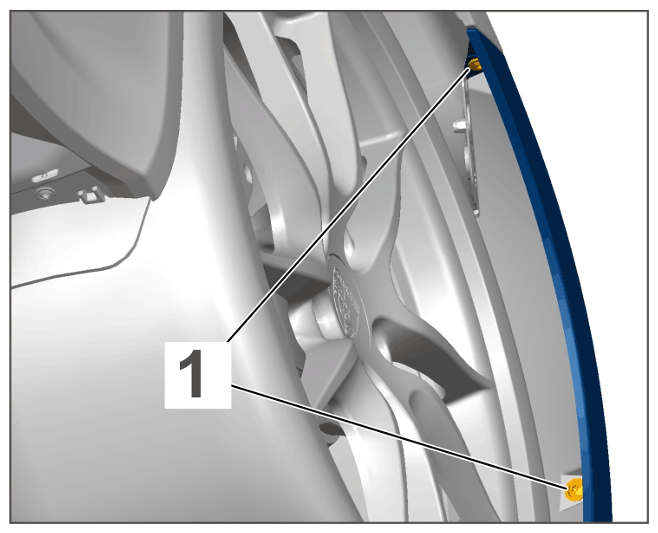

Fastening screws for rear bumper wheel house   Tightening torque 3.2 Nm (2.4 ftlb.)
G14954961Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws wheel house

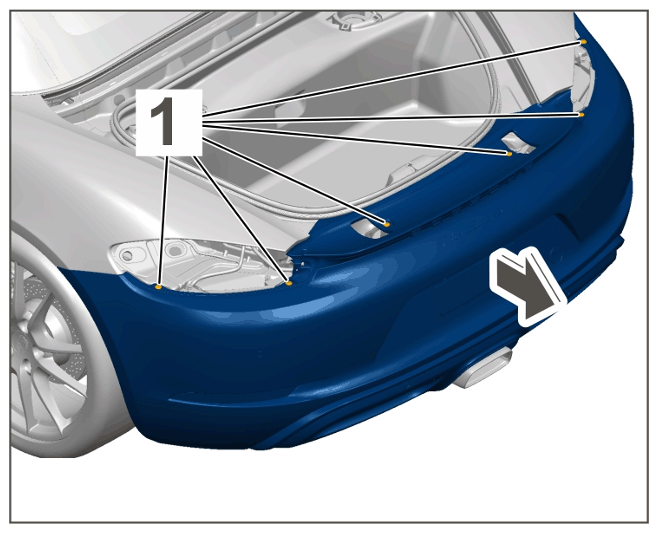

Fastening screws at top of rear bumper   Tightening torque 3.2 Nm (2.4 ftlb.)
G14954963Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws at top
Fastening screws on the trim element (logo) Item 1 Tightening torque 2.4 Nm (1.8 ftlb.) + 10 % +/- 15 %
G14954965Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws

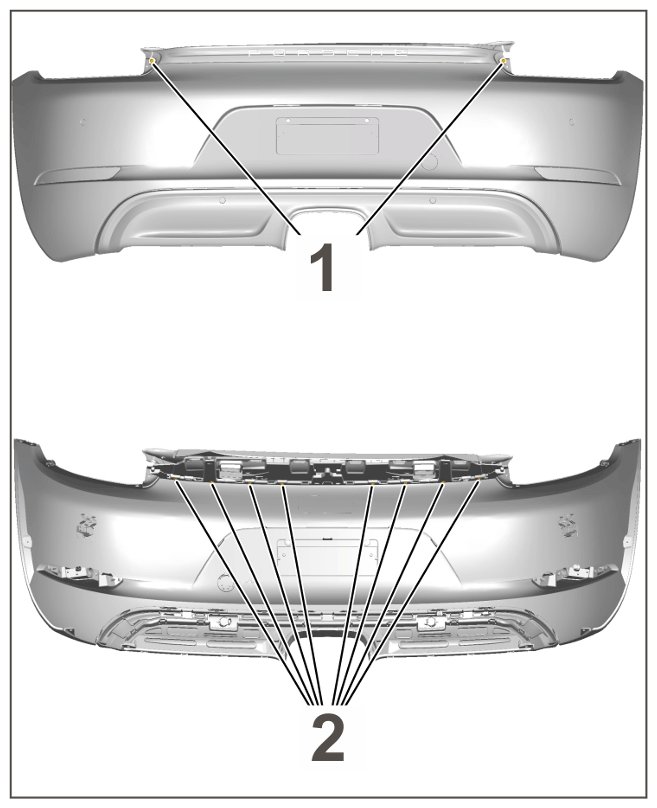

Fastening screw for cover Item 2 Tightening torque 2.4 Nm (1.8 ftlb.) + 10 % - 15 %
G14954966Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws

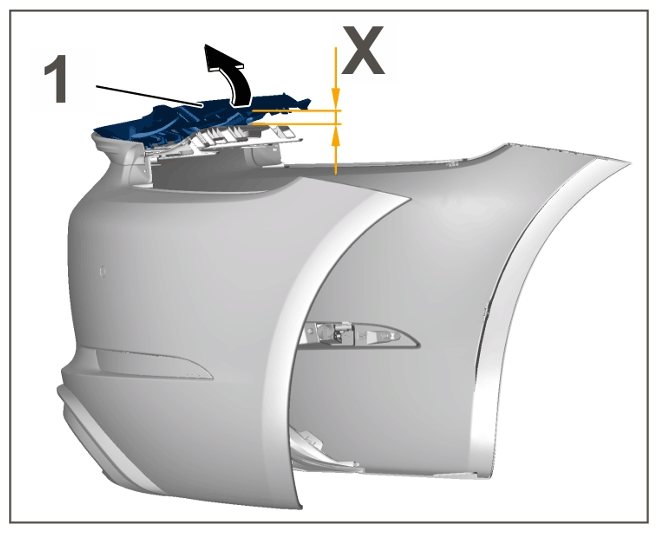

Distance from cover to rear bumper Item X Length 5 cm +/- 1 cm
G14954969Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cover

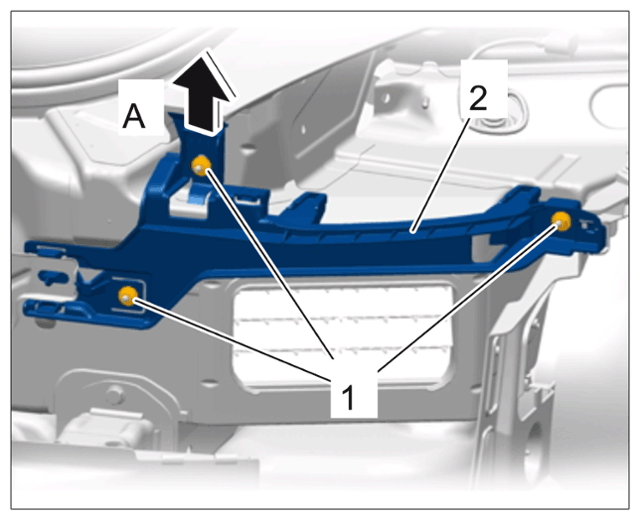

Fastening screws on retaining strip Item 1 Tightening torque 7 Nm (5.2 ftlb.) + 0.7 Nm (0.5 ftlb.) - 1 Nm (0.7 ftlb.)
G14954971Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installing rear retaining strip

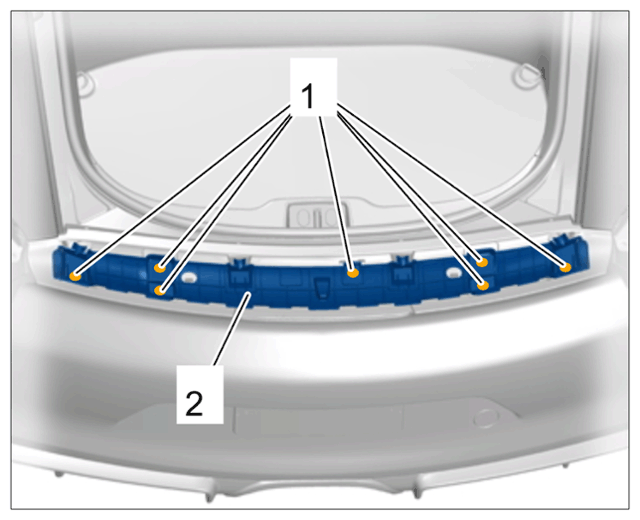

Fastening screws on retaining strip rear spoiler Item 1 Tightening torque 3.2 Nm (2.4 ftlb.) +/- 0.6 Nm (0.4 ftlb.)
G14954973Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing retaining strip for rear spoiler

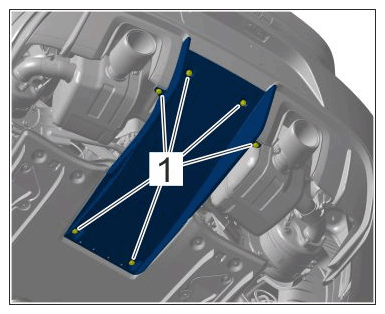

Mounting for lower part of rear spoiler (diffuser)   Tightening torque 3 Nm (2.2 ftlb.)
G14954975Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lower part of rear spoiler

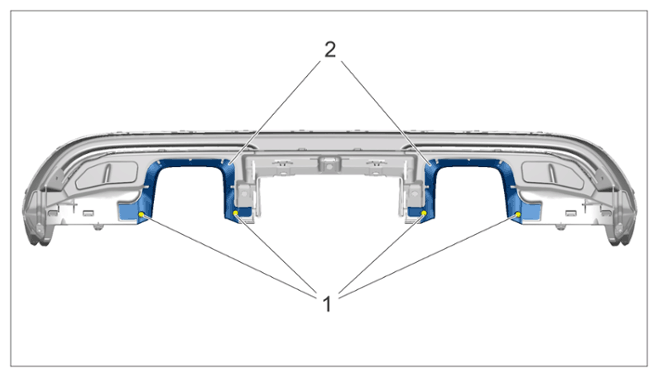

Screws on trim frame for tailpipe cover Item 1 Tightening torque 2.5 Nm (1.8 ftlb.)
G14954977Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Trims

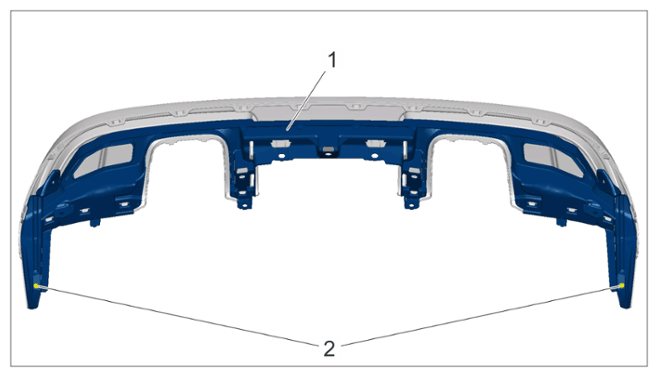

Retaining frame for rear apron Item 2 Tightening torque 2.5 Nm (1.8 ftlb.)
G14954979Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear apron

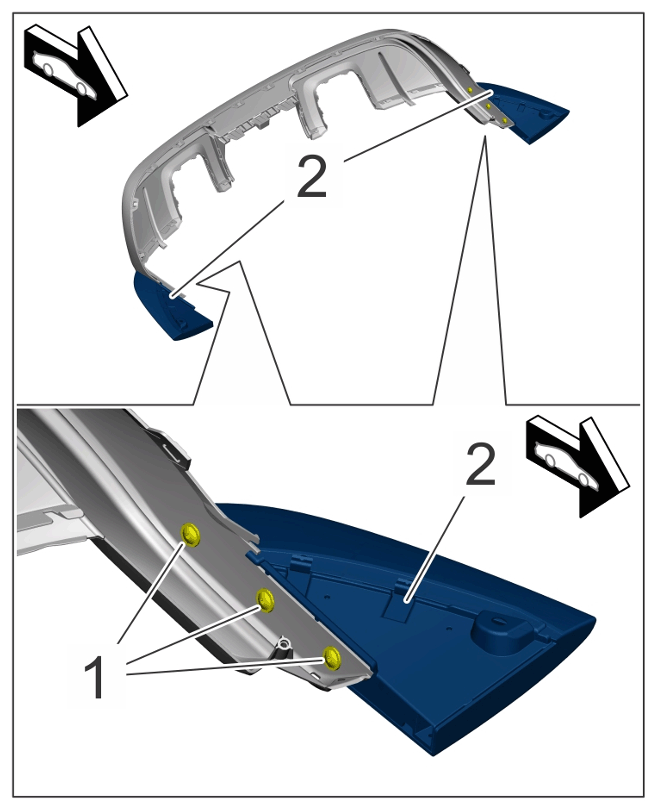

Screws lower part of rear spoiler (at the sides) Item 1 Tightening torque 2.5 Nm (1.8 ftlb.)
G14954981Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bolts

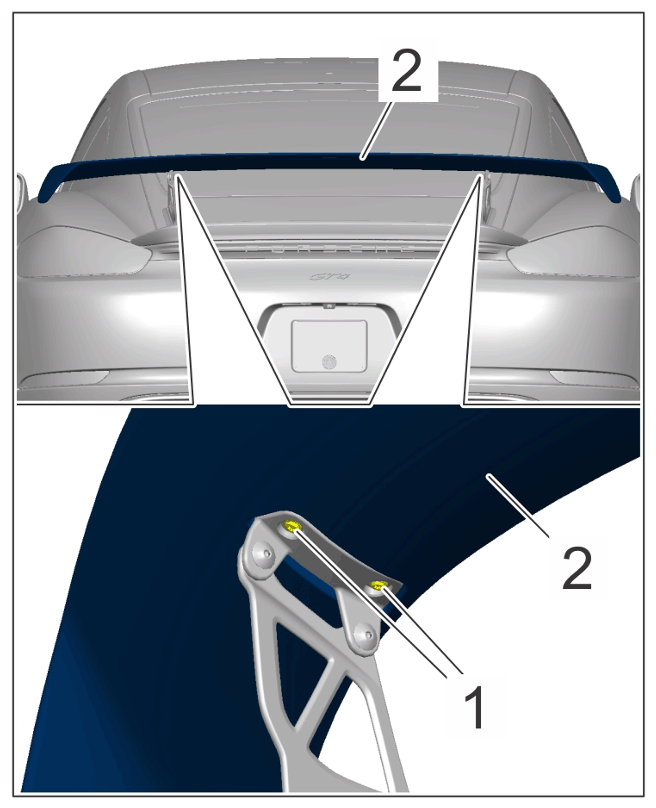

Rear spoiler (wing) Item 1 Torque 8 Nm (5.9 ftlb.)
G14954983Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

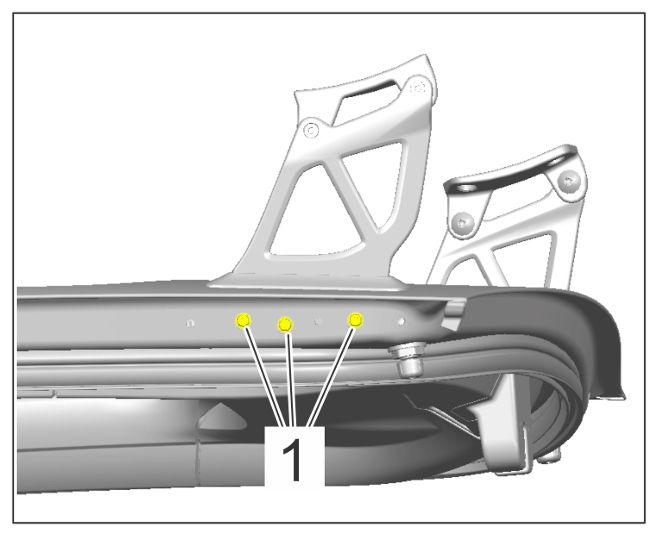

Rear spoiler (wing struts) Item 1 Torque 8 Nm (5.9 ftlb.)
G14954985Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

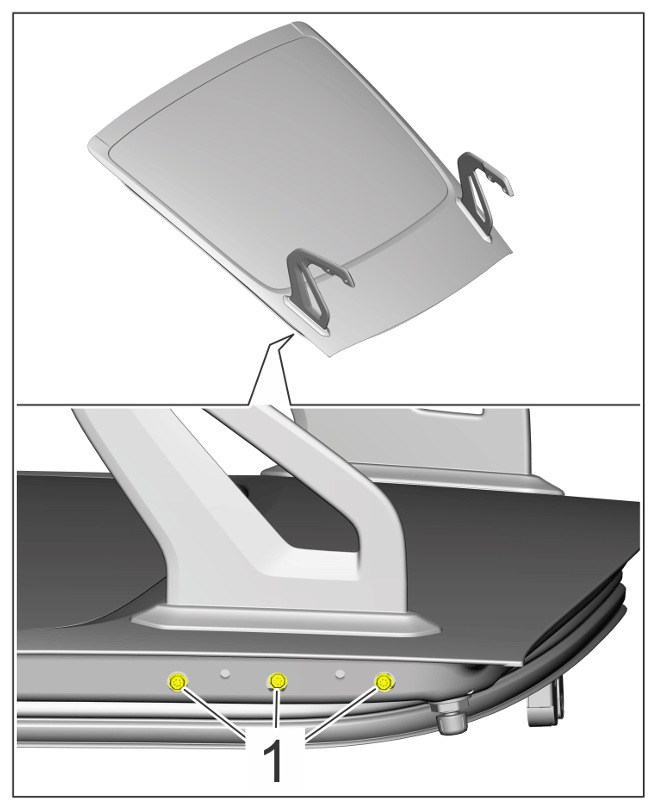

Outer screws rear spoiler (wing struts) Item 1 Replace screws Torque 8 Nm (5.9 ftlb.)
G14954987Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Outer screws

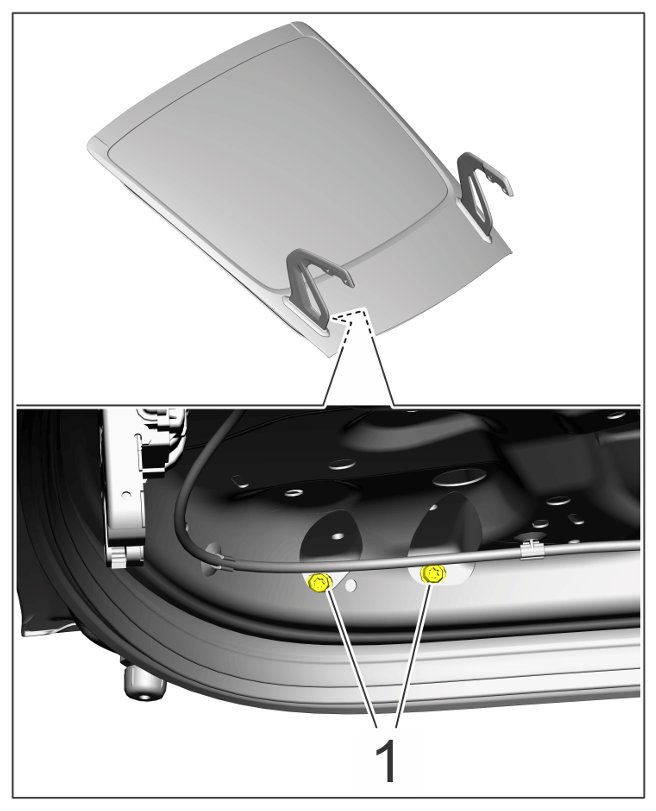

Inner screws for rear spoiler (wing struts) Item 1 Replace screws Torque 8 Nm (5.9 ftlb.)
G14954989Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Inner screws

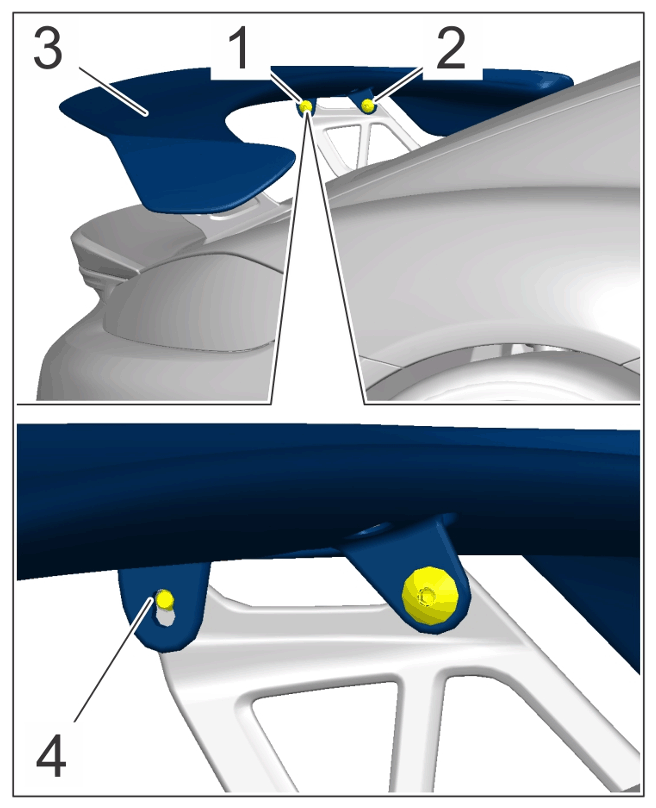

Rear spoiler (wing) Item 1 and Item 2 Torque 8 Nm (5.9 ftlb.)
G14954991Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Adjustment position 1 (on-road driving)

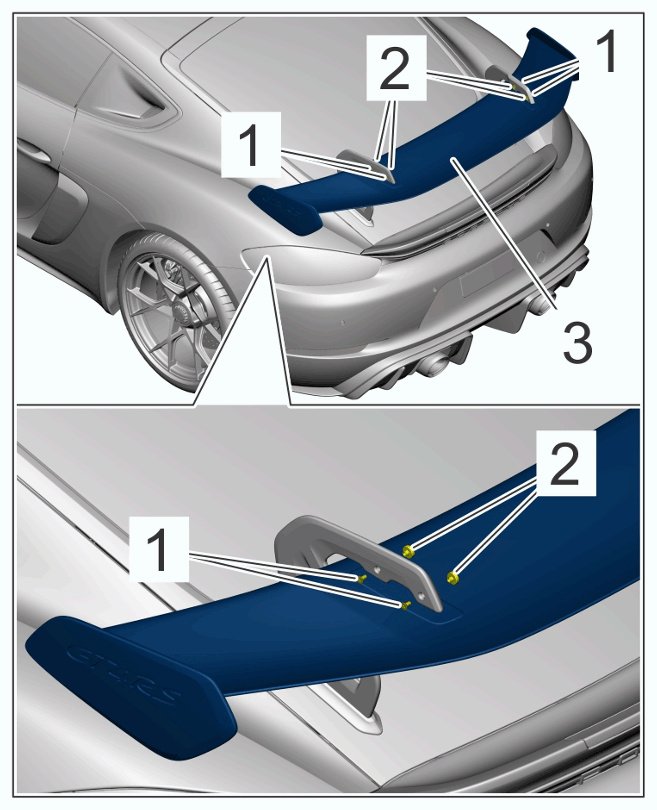

Screws on rear spoiler (wing) Item 1 Replace screws (nuts Item 2 can be reused) Torque 8 Nm (5.9 ftlb.)
G14954993Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening elements

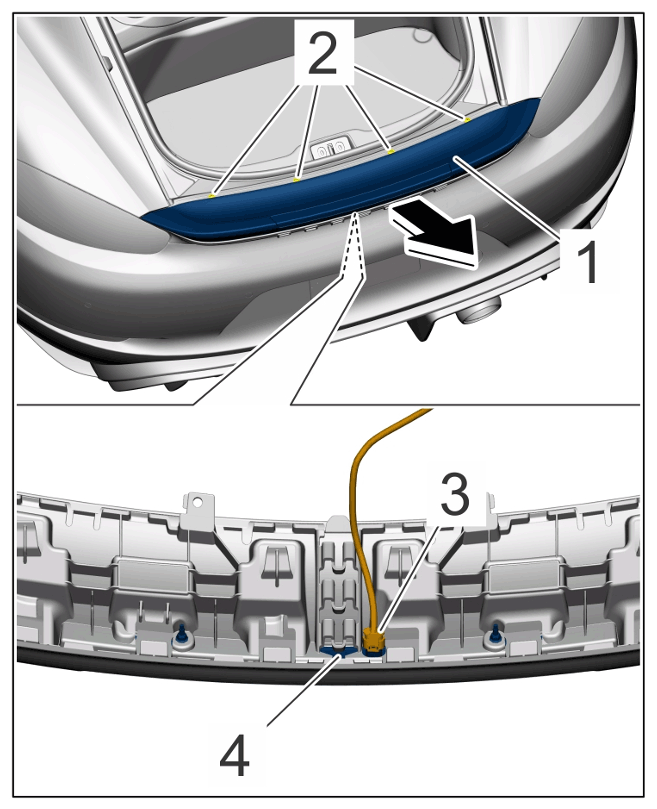

Screws for rear spoiler Item 2 Torque 3.2 Nm (2.4 ftlb.)
G14954995Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear spoiler

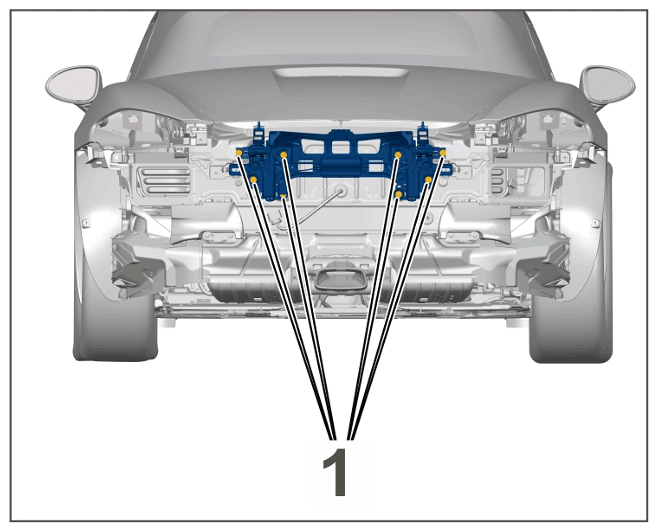

Fastening nuts on spoiler drive Item 1 Tightening torque 9.7 Nm (7.5 ftlb.) - 20 %
G14954997Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening nuts

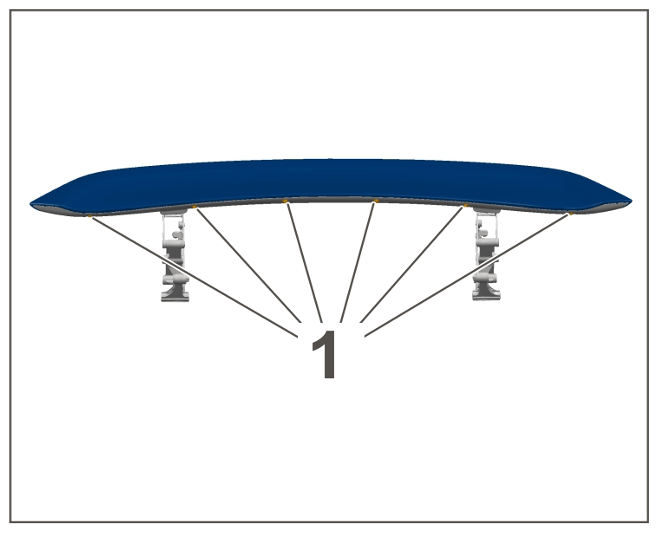

Fastening screws for upper part of rear spoiler   Tightening torque 2.2 Nm (1.5 ftlb.)
G14954999Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws for upper part

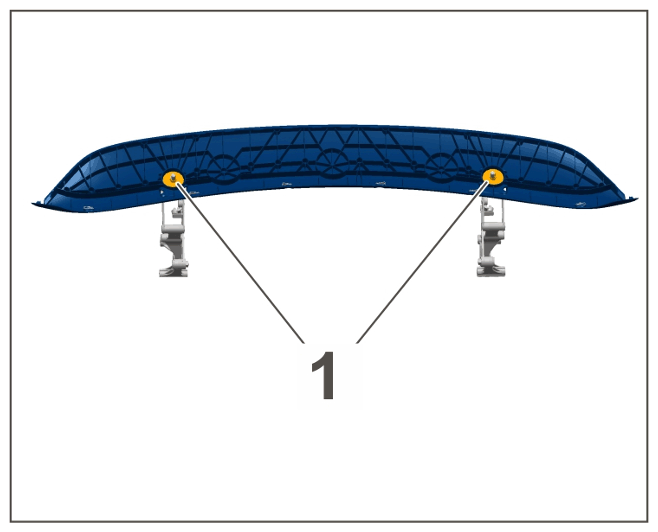

Fastening nut for lower part of rear spoiler   Tightening torque 15 Nm (11 ftlb.) +/- 10 %
G14955001Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening nuts for lower part

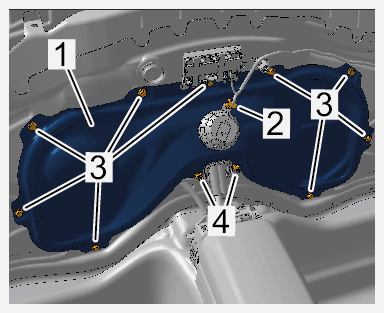

Fastening screws for rear wall cover item 3 Tightening torque 9.7 Nm (7.2 ftlb.)
G14955003Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear wall flap
Fastening nuts for rear wall cover item 4 Tightening torque 9.7 Nm (7.2 ftlb.)
G14955005Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear wall flap
Fastening screw for door window Use special tool Tightening torque 7 Nm (5 ftlb.) +/- 0.9 Nm (0.5 ftlb.)
G14955007Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Securing door window glass
Fastening screw for door window Directly at the screw Tightening torque 14 Nm (10.5 ftlb.) +/- 1.8 Nm (1.5 ftlb.)

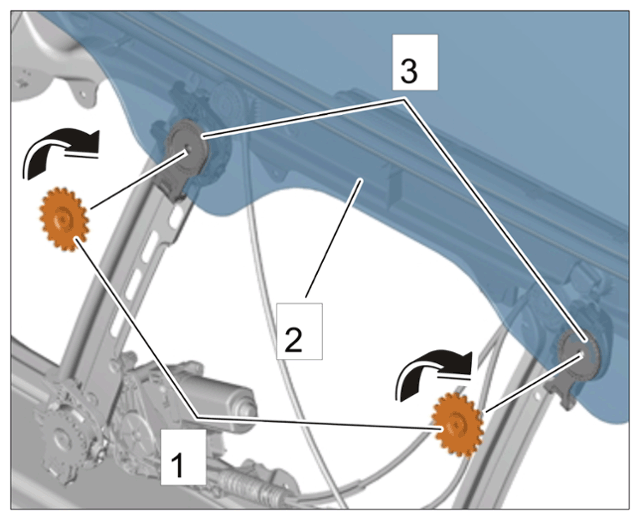

G14955009Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Securing door window glass
Window regulator motor to power windows mechanism   Tightening torque 4.7 Nm (3.5 ftlb.) +/- 0.5 Nm (0.3 ftlb.)

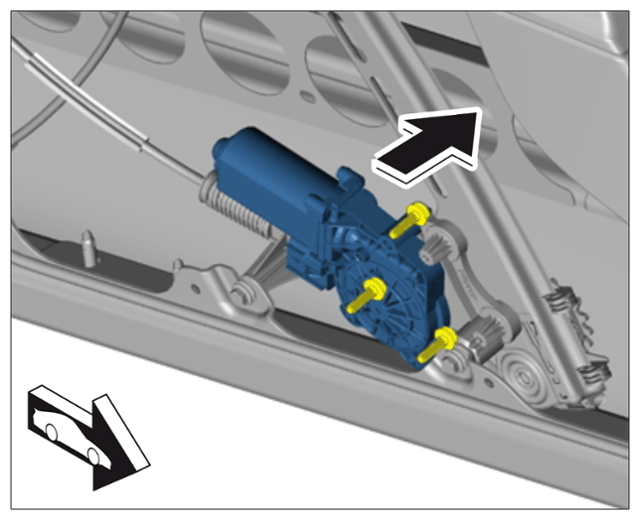

G14955011Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing window regulator motor
Fastening nut for power windows mechanism   Tightening torque 9.7 Nm (7.5 ftlb.) +/- 0.9 Nm (0.5 ftlb.)

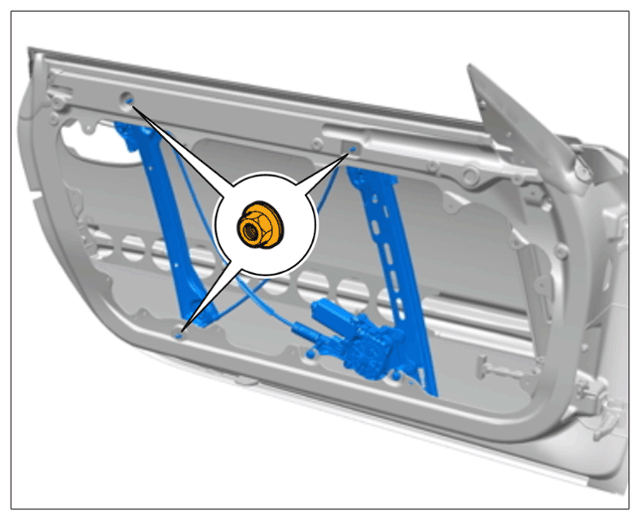

G14955013Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screwing off fastening nuts
Insertion depth of front door window Z1 Adjustment value 3.5 mm +/- 1 mm
G14955015Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Insertion depth of front door window
G14955016Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Insertion depth of front door window
Insertion depth of rear door window Z2 Adjustment value 6.0 mm +/- 1 mm

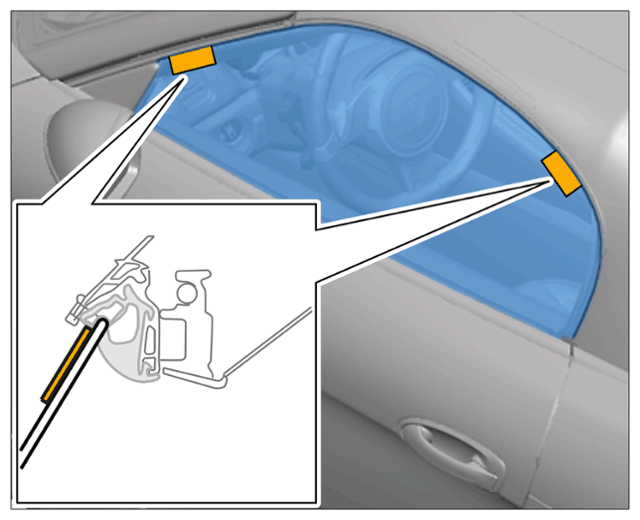

G14955017Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Insertion depth of front door window
G14955018Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Insertion depth of front door window
Measuring point gap Z2 X Gap dimension 5 mm

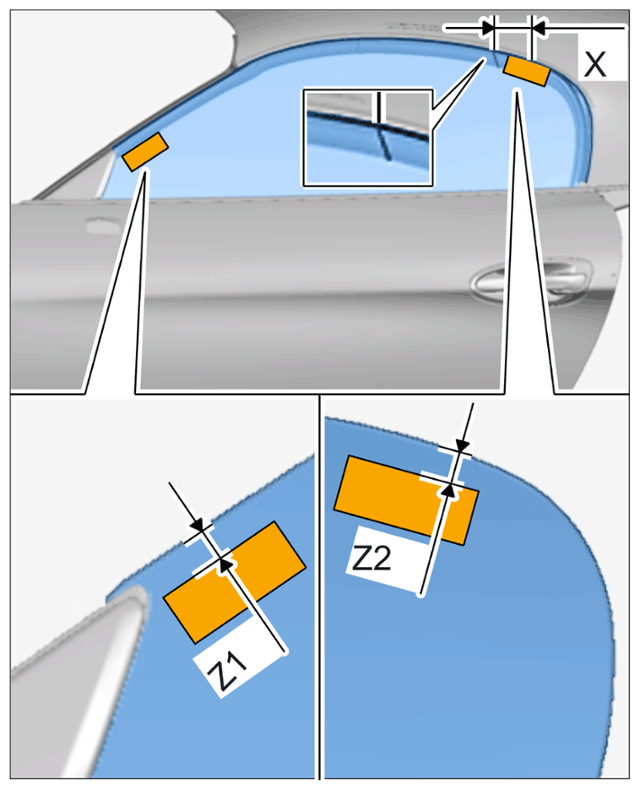

G14955020Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Applying markings
Measuring point gap X Gap dimension 100 mm

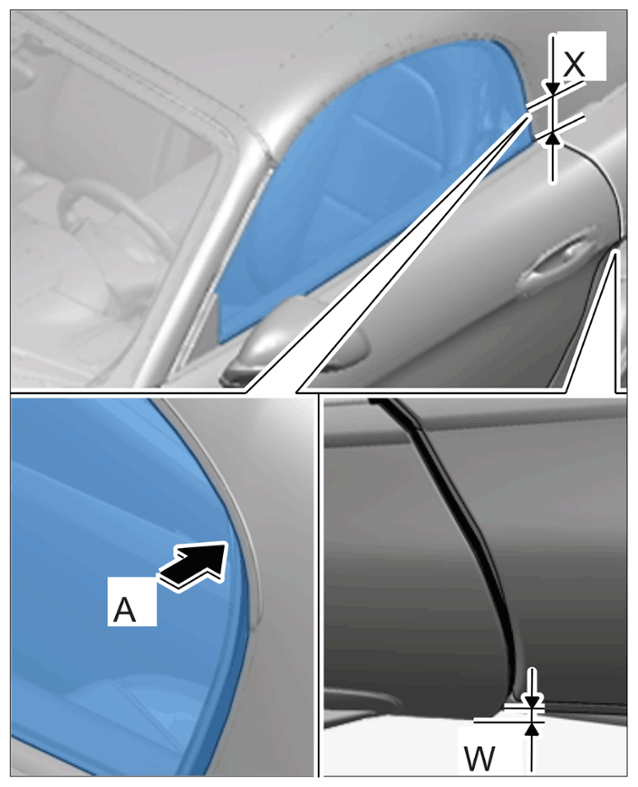

G14955025Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Door in open position
Door opening W Adjustment value 8 mm
G14955026Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Door in open position
Door window with respect to rear side window Illustration 4 Gap dimension 7 mm +/- 0.8 mm

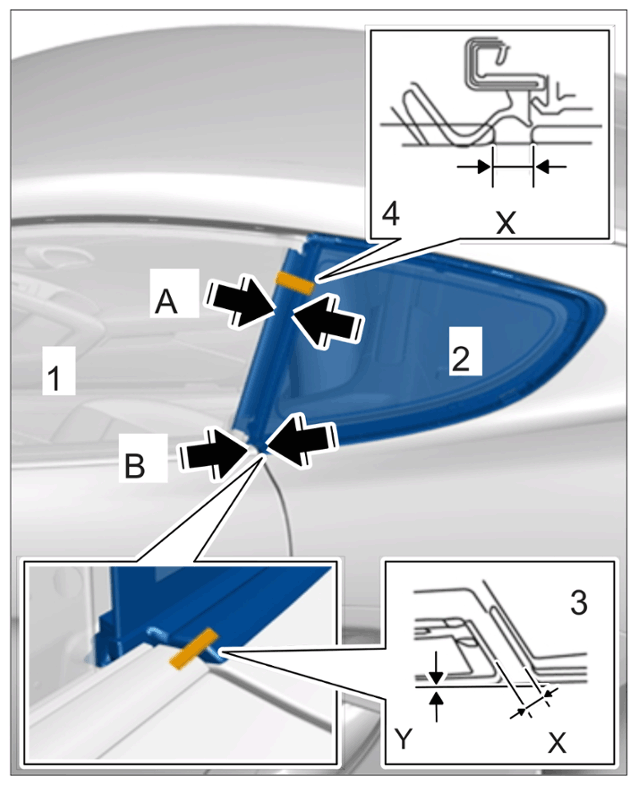

G14955029Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap/offset between door window and side window
Door shaft moulding with respect to rear side window rubber Illustration 3 Gap dimension 3.5 mm + 0.7 mm - 0.5 N
G14955030Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap/offset between door window and side window

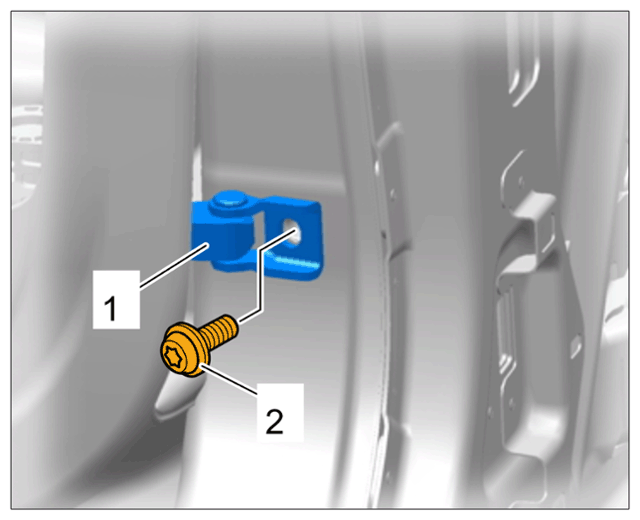

Fastening screw securing door arrester to body   Tightening torque 35 Nm (26 ftlb.)
G14955033Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosening door arrester on body side

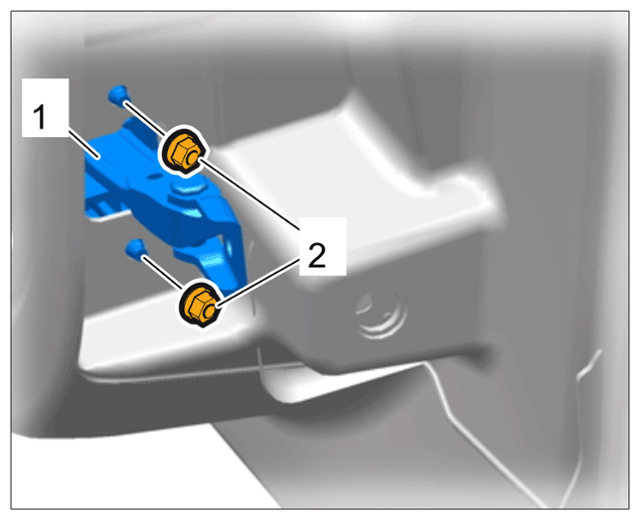

Fastening nut securing door arrester to door   Tightening torque 10 Nm (7.5 ftlb.)
G14955035Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing door arrester

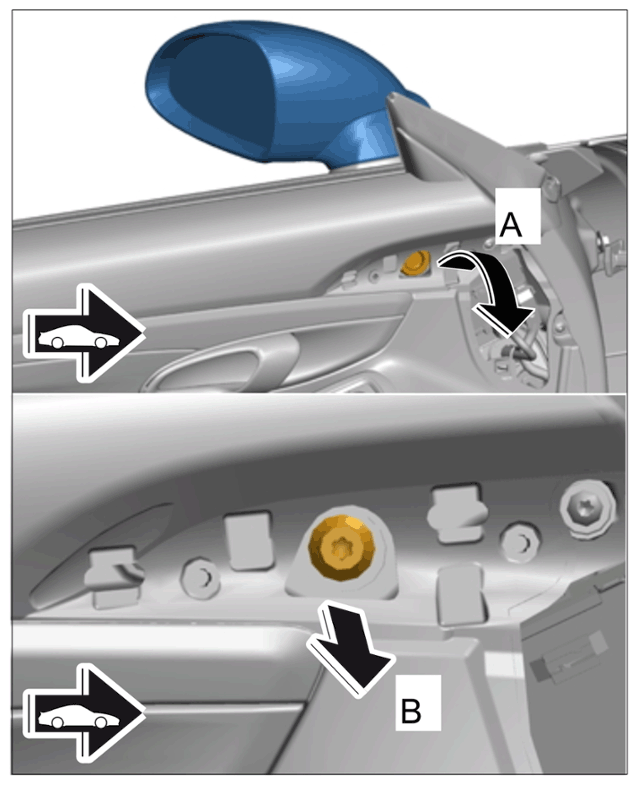

Fastening screw for exterior mirror   Tightening torque 23 Nm (17 ftlb.)
G14955037Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosening rear-view mirror

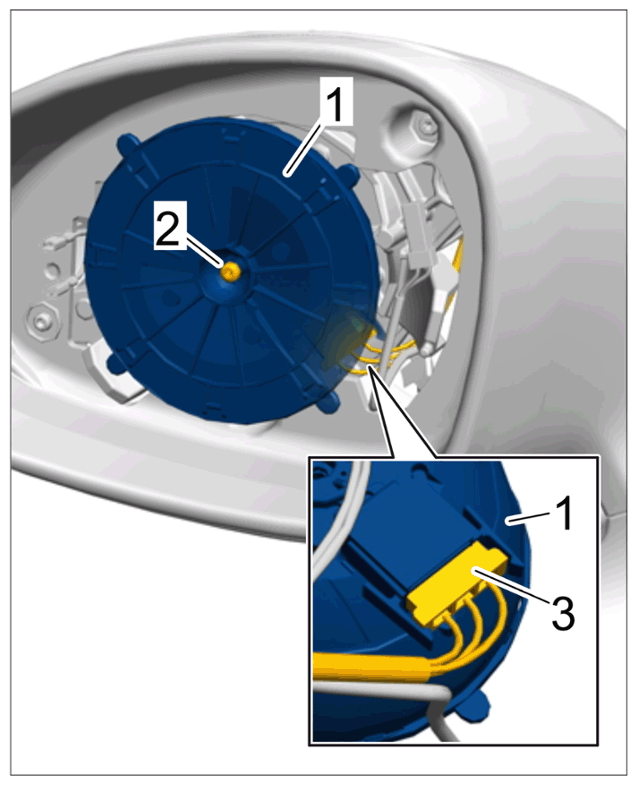

Fastening screw for mirror adjusting motor Item 2 Tightening torque 1 Nm (0.5 ftlb.) +/- 0.15 Nm (0.1 ftlb.)
G14955039Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mirror adjusting motor

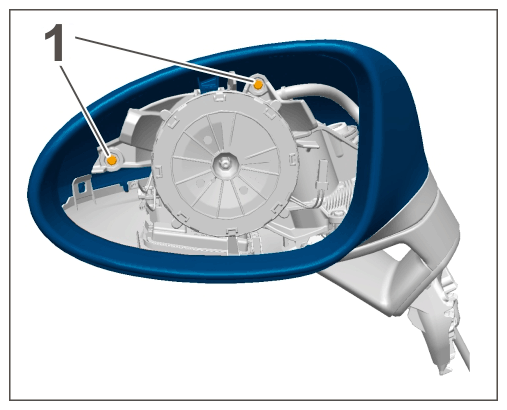

Fastening screws for upper part of housing Item 1 Tightening torque 0.55 Nm (0.4 ftlb.) +/- 0.25 Nm (0.18 ftlb.)
G14955041Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for upper part of housing

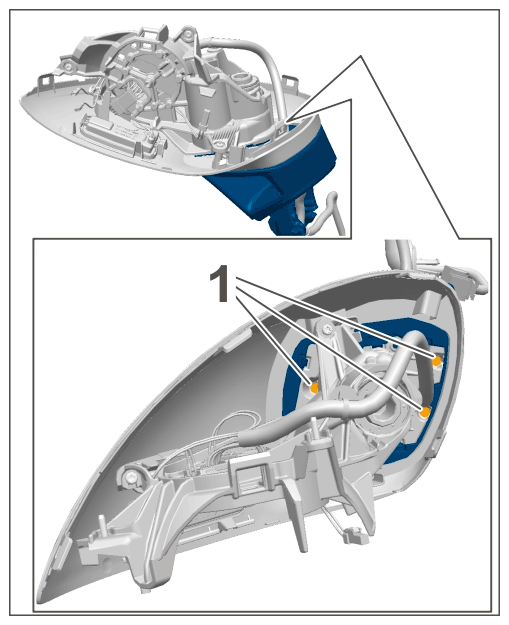

Fastening screws for mirror base Item 1 Tightening torque 0.75 Nm (0.55 ftlb.) +/- 0.25 Nm (0.18 ftlb.)
G14955043Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing mirror base

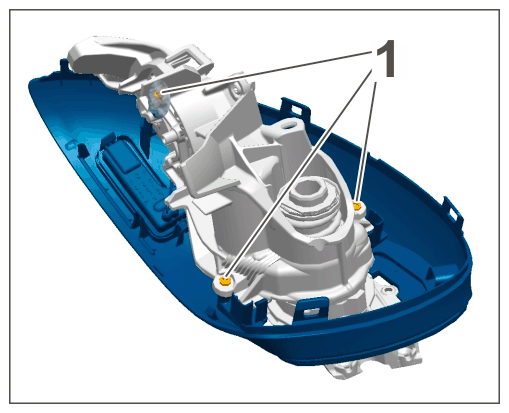

Fastening screws for lower part of housing Item 1 Tightening torque 0.55 Nm (0.4 ftlb.) +/- 0.25 Nm (0.18 ftlb.)
G14955045Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrewing fastening screws

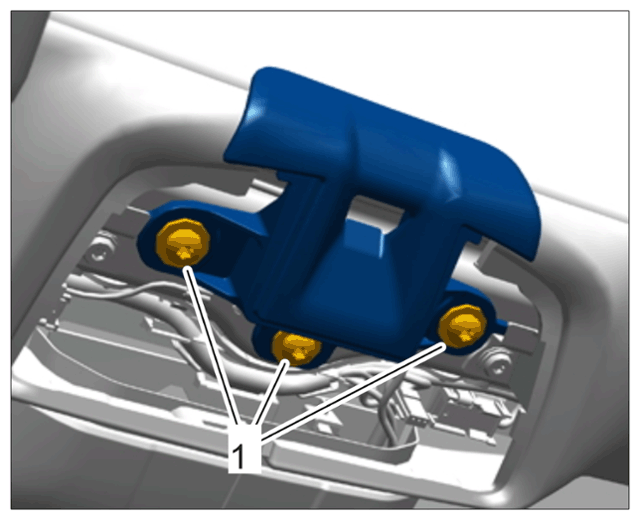

Fastening screw for front lock   Tightening torque 9.7 Nm (7.5 ftlb.)
G14955047Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing lock
Fastening screw for belt strap guide   Tightening torque 46 Nm (34 ftlb.)

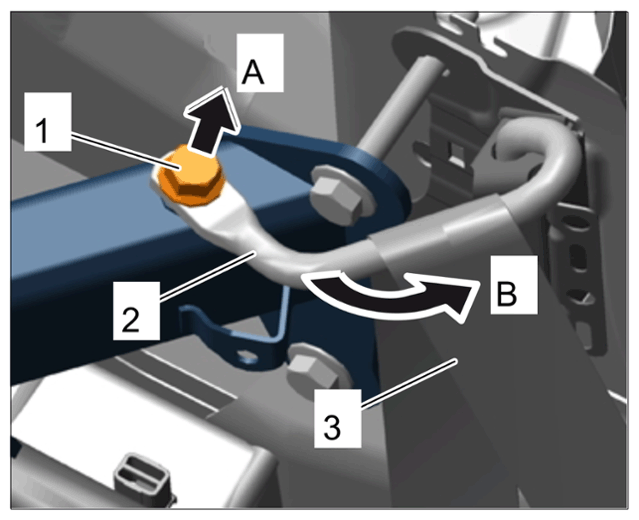

G14955049Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosening side fastening screws

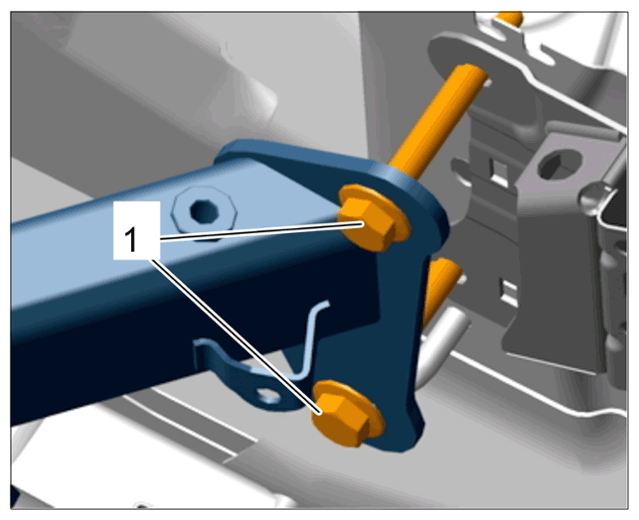

Fastening screw for roll-over bar, side   Tightening torque 46 Nm (34 ftlb.)
G14955051Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosening side fastening screws

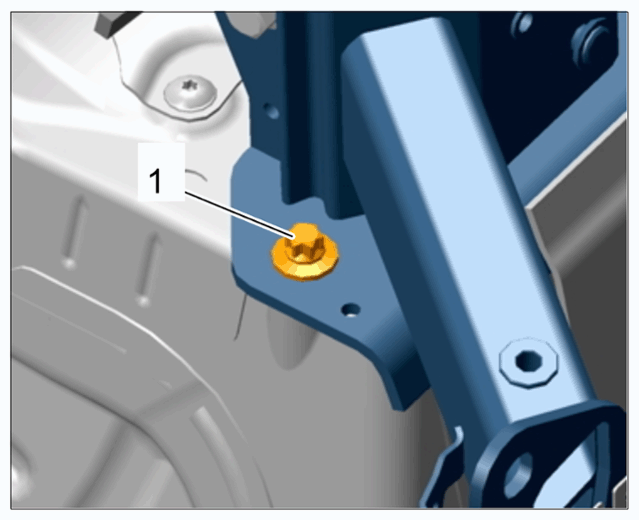

Fastening screw for roll-over bar, front   Tightening torque 46 Nm (34 ftlb.)
G14955053Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosening front fastening screws
Fastening screw for roll-over bar, rear   Tightening torque 46 Nm (34 ftlb.)

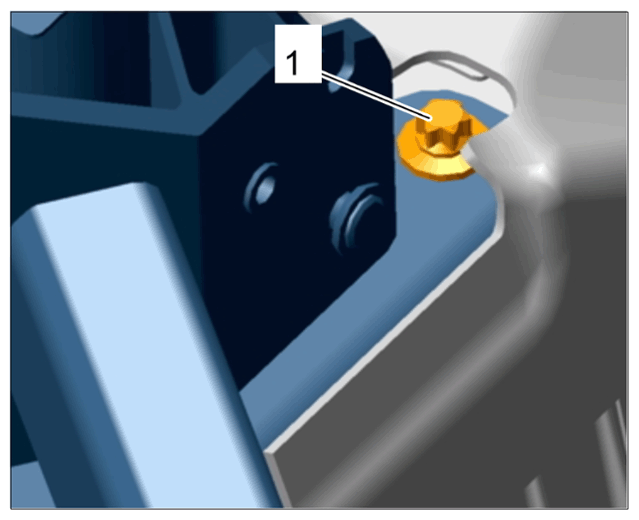

G14955055Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosening rear fastening screws

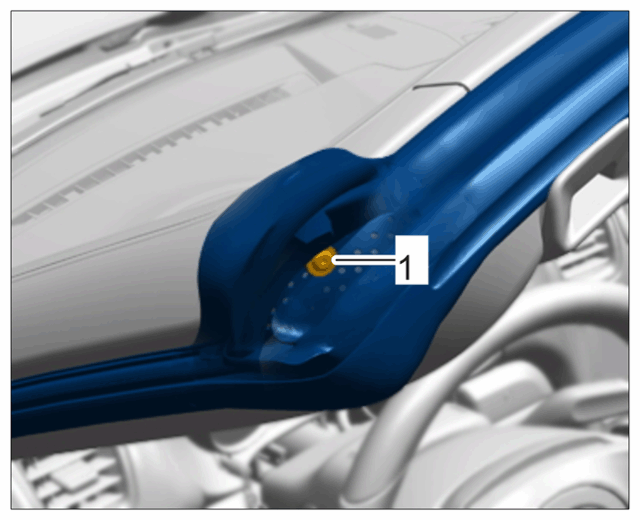

Fastening screw for seal for cowl panel frame   Tightening torque 4.0 Nm (3.0 ftlb.)
G14955057Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting point for seal for cowl panel frame

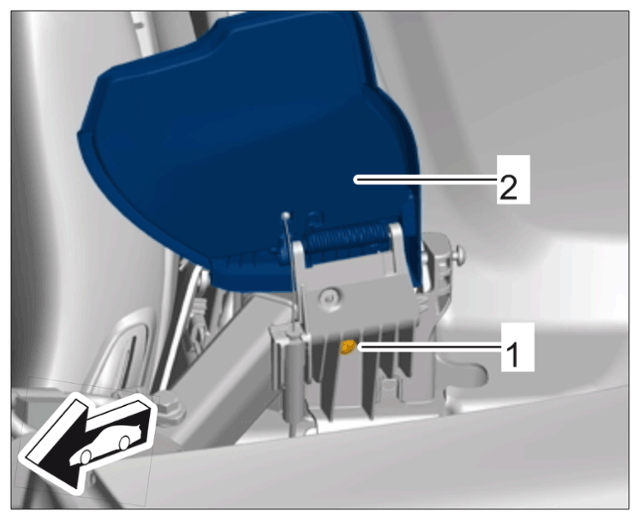

Fastening screw for flap   Tightening torque 9.7 Nm (7.5 ftlb.)
G14955059Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing lower part of flap

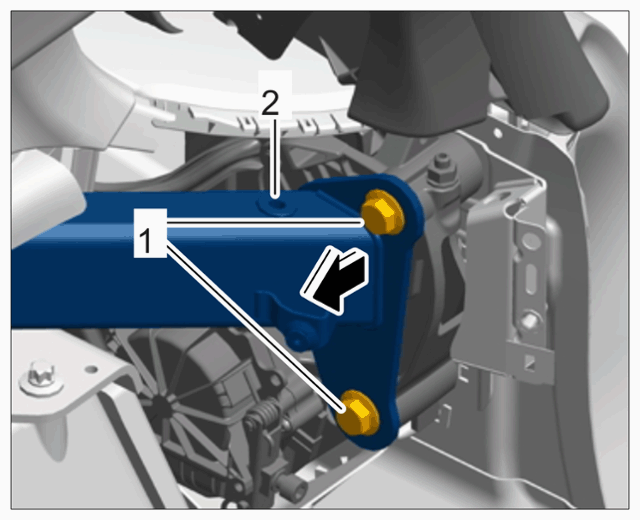

Fastening screw for convertible top support/roll-over bar, front   Tightening torque 46 Nm (34 ftlb.)
G14955061Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Detaching convertible top at the front

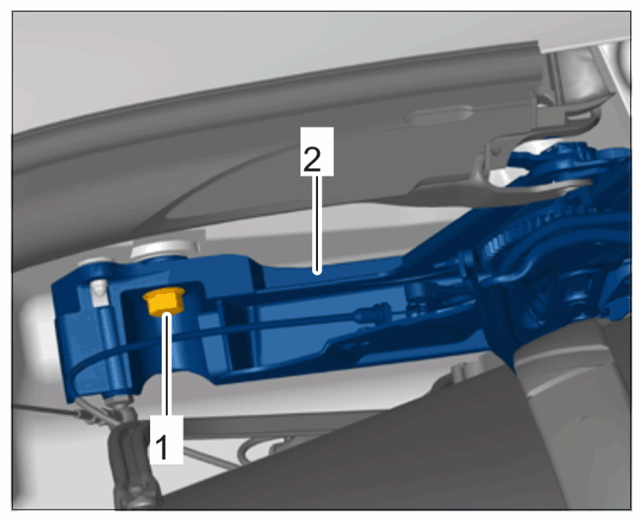

Fastening screw for convertible top support, rear   Tightening torque 46 Nm (34 ftlb.)
G14955063Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Detaching convertible top at the rear
Fastening screws for tension bow   Tightening torque 9 Nm (6.5 ftlb.) +/- 1 Nm (0.5 ftlb.)

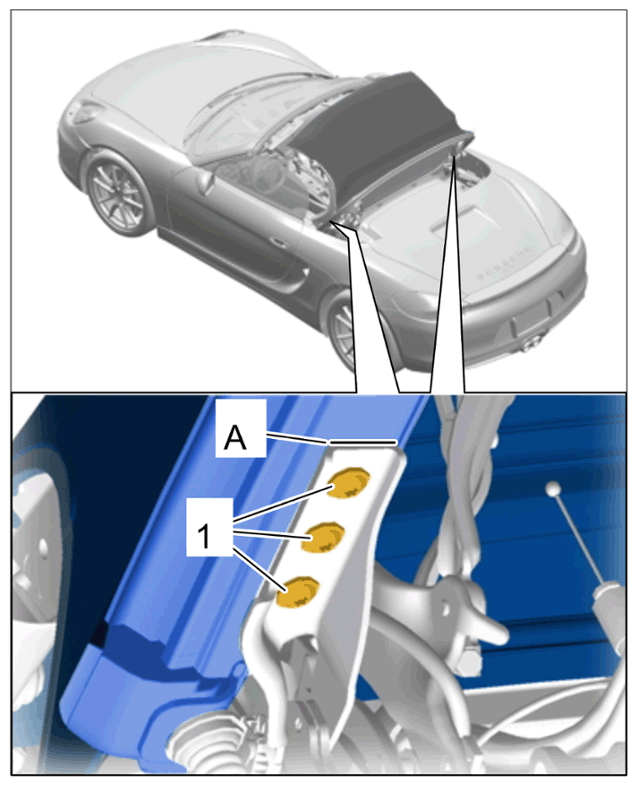

G14955065Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosening tension bow

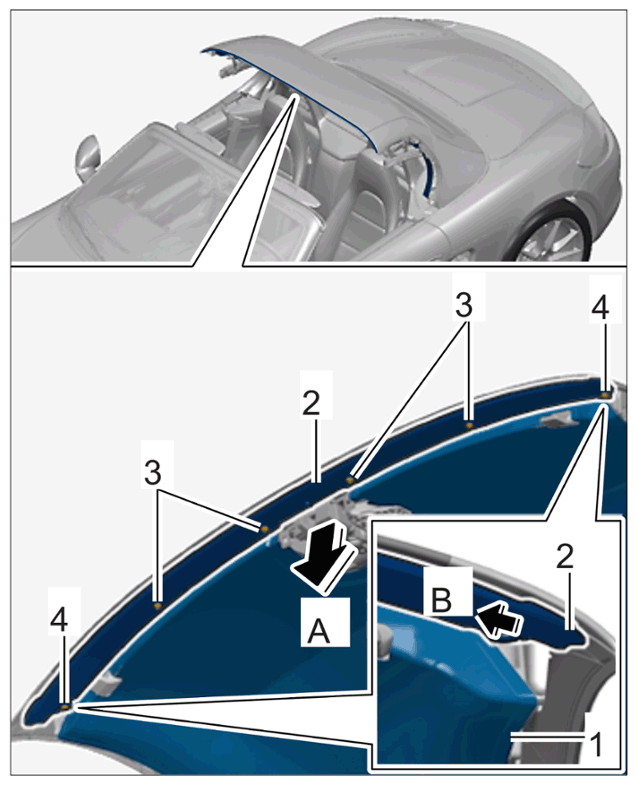

Fastening screw for cover strip Item 3 Tightening torque 6.0 Nm (4.5 ftlb.)
G14955067Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosening cover strip
Fastening screw for cover strip Item 4 Tightening torque 3.5 Nm (2.5 ftlb.)
G14955068Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosening cover strip

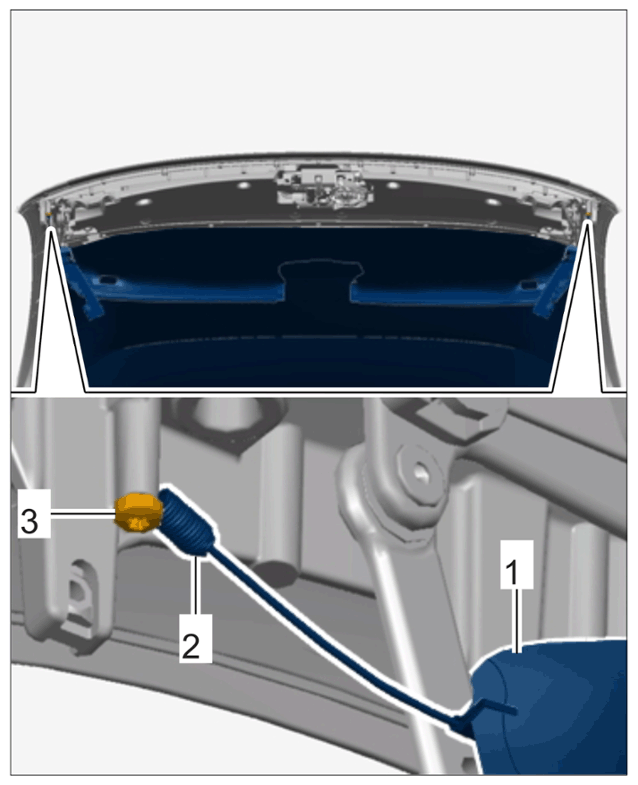

Fastening screw for tension rope Item 3 Tightening torque 2.8 Nm (2 ftlb.)
G14955071Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosening tension rope
Fastening screw for retaining strap (lower B-pillar) Item 1 Tightening torque 1.8 Nm (1.5 ftlb.)

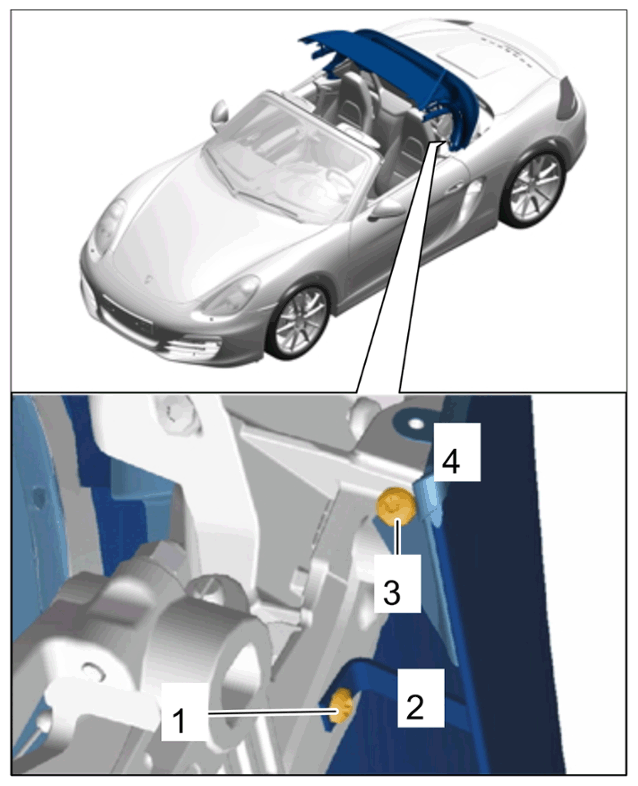

G14955073Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screwing off retaining strap at the sides
Fastening screw for retaining strap (upper B-pillar) Item 3 Tightening torque 3.5 Nm (2.5 ftlb.)
G14955074Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screwing off retaining strap at the sides

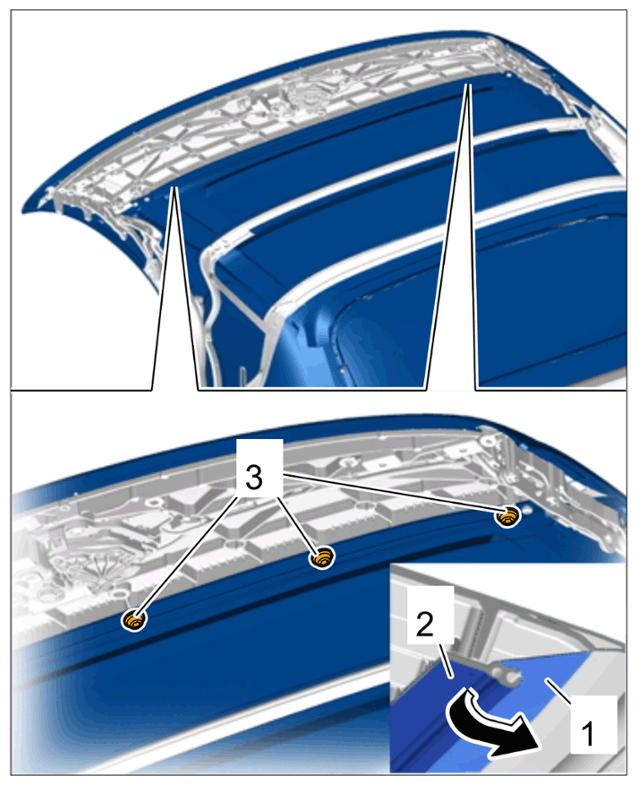

Fastening screw for retaining strip on roof frame Item 3 Tightening torque 6 Nm (4.5 ftlb.)
G14955077Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosening retaining strip

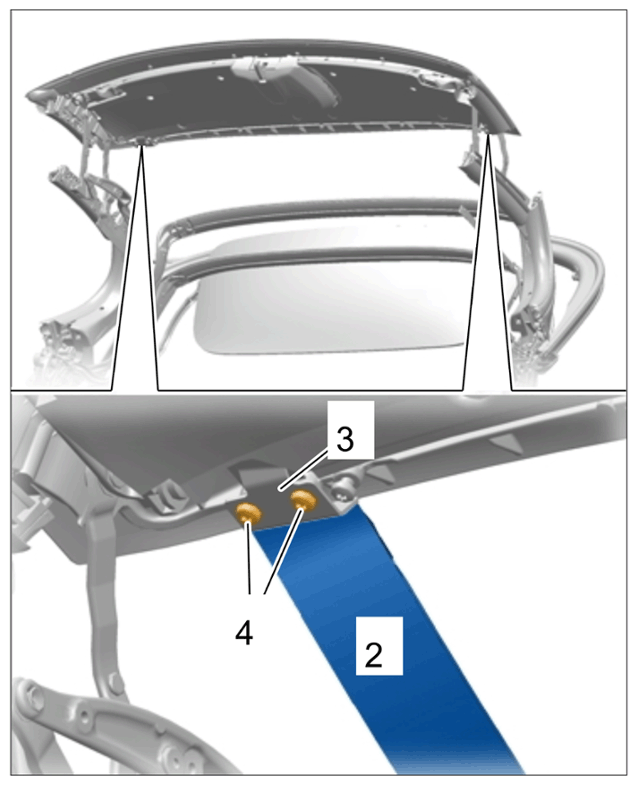

Fastening screw for tension straps Item 4 Tightening torque 9 Nm (6.5 ftlb.)
G14955079Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosening tension straps

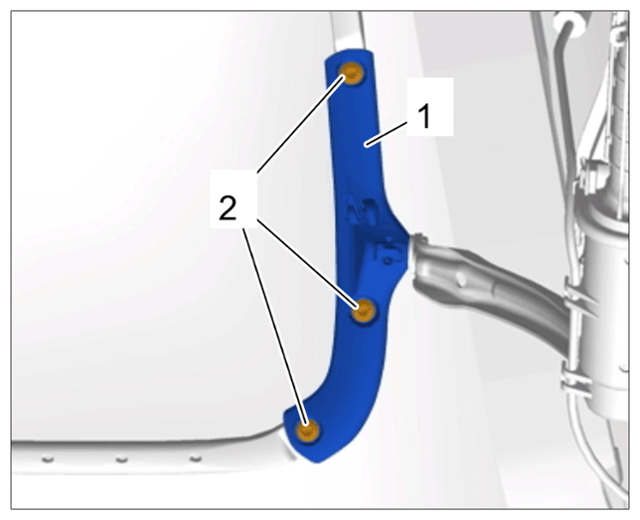

Fastening screw for holder Item 2 Tightening torque 6 Nm (4.5 ftlb.)
G14955081Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing holder

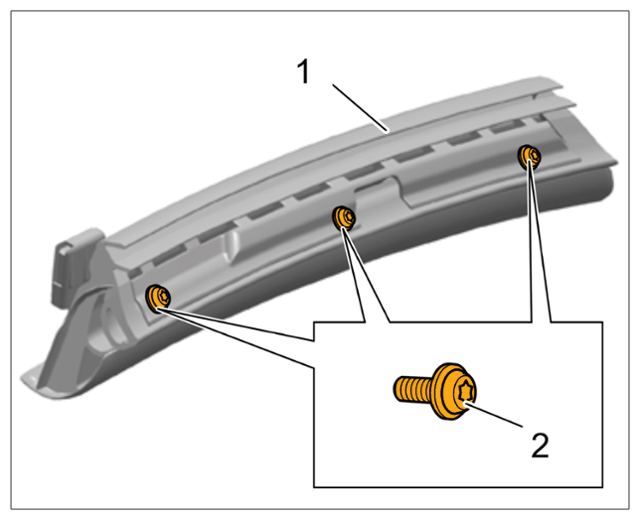

Retaining strip to convertible top linkage   Tightening torque 9.7 Nm (7.5 ftlb.) (7.2 ftlb.)
G14955083Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing seal
Retaining strip to convertible top linkage   Tightening torque 6 Nm (4.5 ftlb.) (4.4 ftlb.)

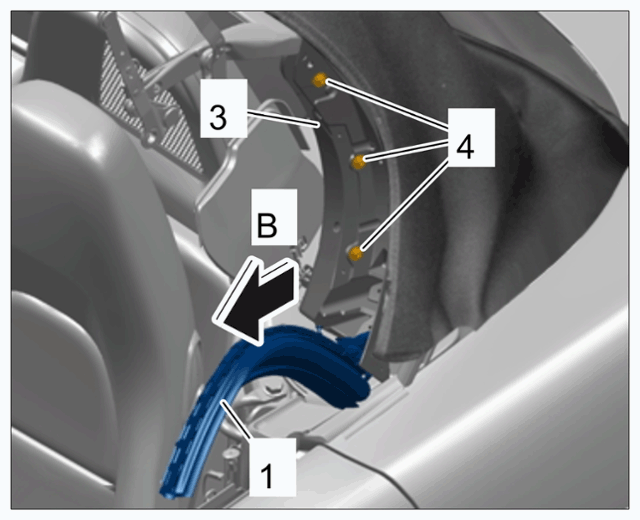

G14955085Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Retaining strip on convertible top linkage

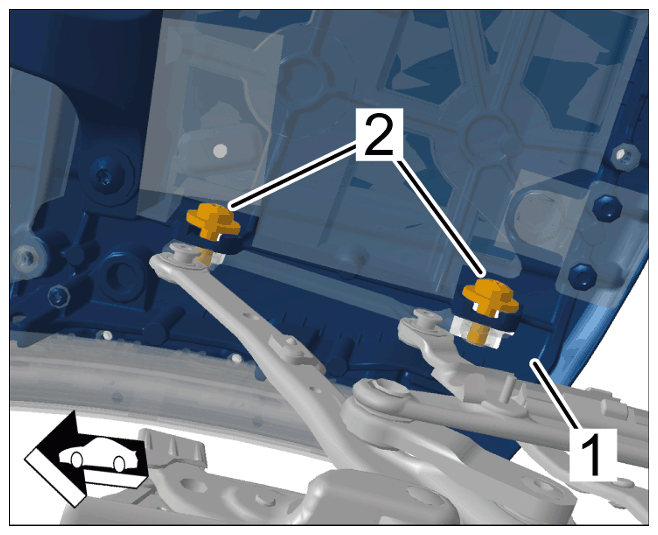

Front roof frame Item 2 Tightening torque 28 Nm (21 ftlb.) (20.7 ftlb.)
G14955087Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing front roof frame

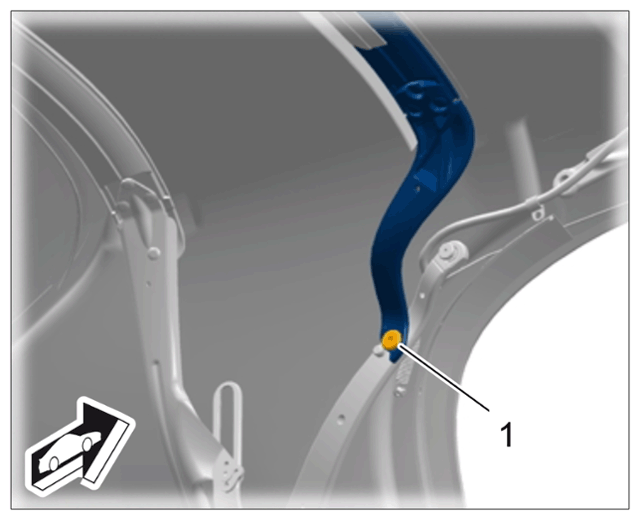

Screw for front clamping bow Item 1 Tightening torque 9 Nm (6.6 ftlb.)
G14955089Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws

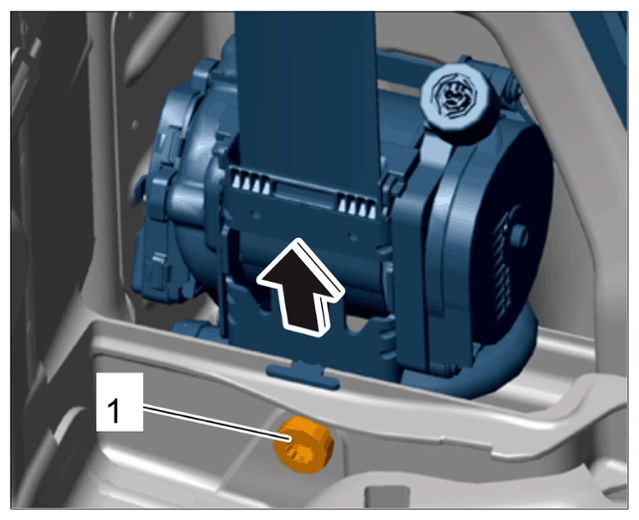

Fastening screw on belt retractor   Tightening torque 50 Nm (37 ftlb.)
G14955091Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing seat-belt pretensioner
Fastening screw securing belt fitting to door sill   Tightening torque 50 Nm (37 ftlb.)

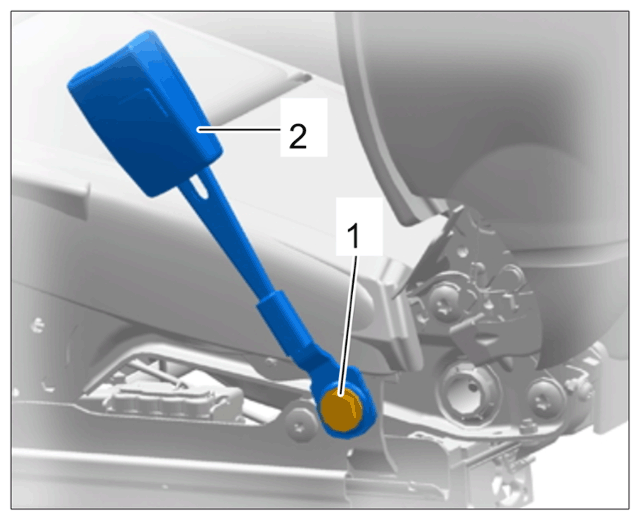

Fastening screw securing seat-belt buckle to seat frame Item 1 Tightening torque 35 Nm (26 ftlb.)
G14955093Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing front seat-belt buckle

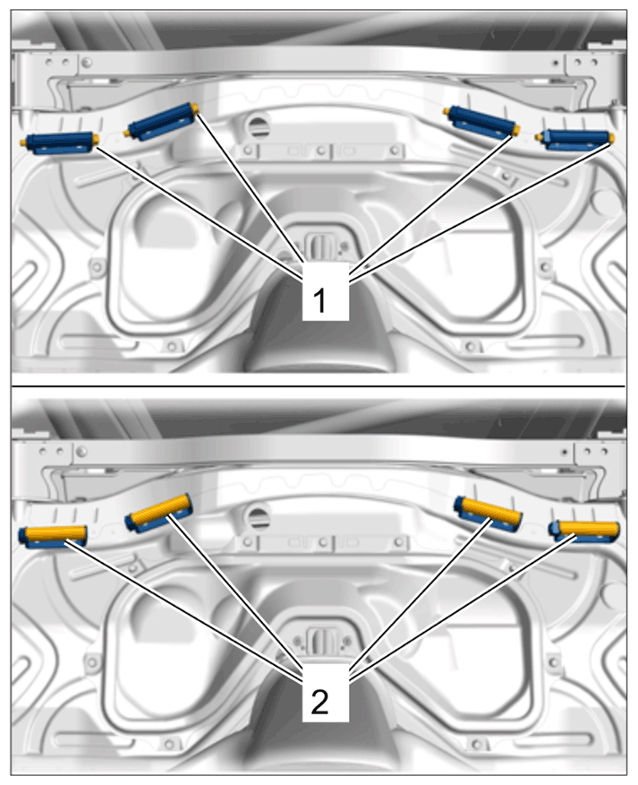

Fastening screws for shoulder belt sleeve   Tightening torque 40 Nm (30 ftlb.)
G14955095Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Shoulder belt sleeve

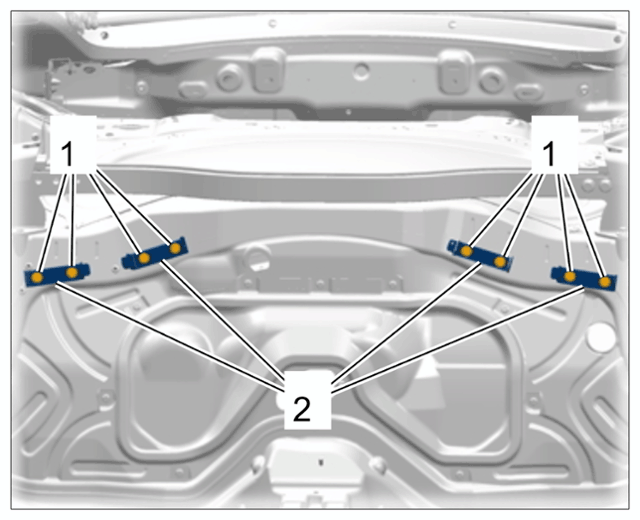

Fastening screws for shoulder belt clip   Tightening torque 20 Nm (15 ftlb.)
G14955097Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Shoulder belt clip

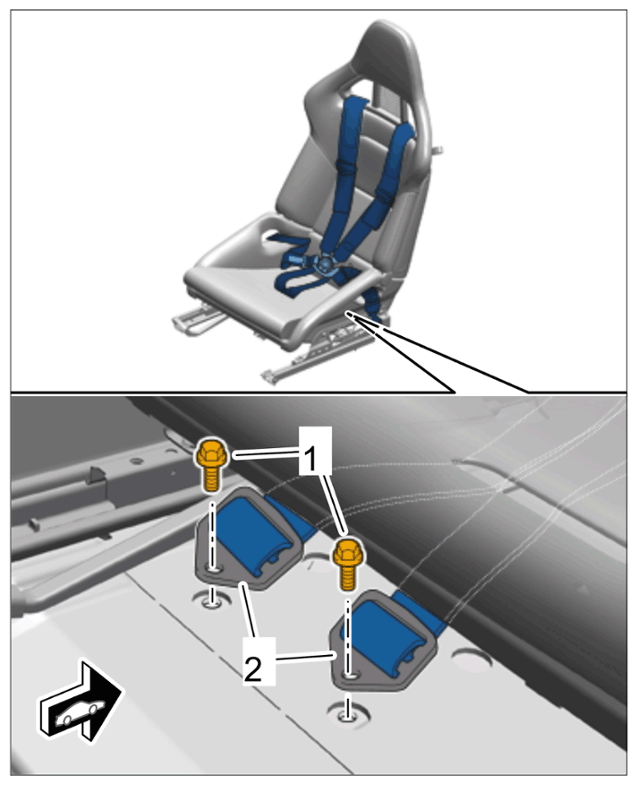

Fastening screw securing front seat-belt mount to floor Item 1 Tightening torque 50 Nm (37 ftlb.)
G14955099Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosening front fastening point
Fastening screw securing side seat-belt mount to B-pillar Item 1 Tightening torque 50 Nm (37 ftlb.)

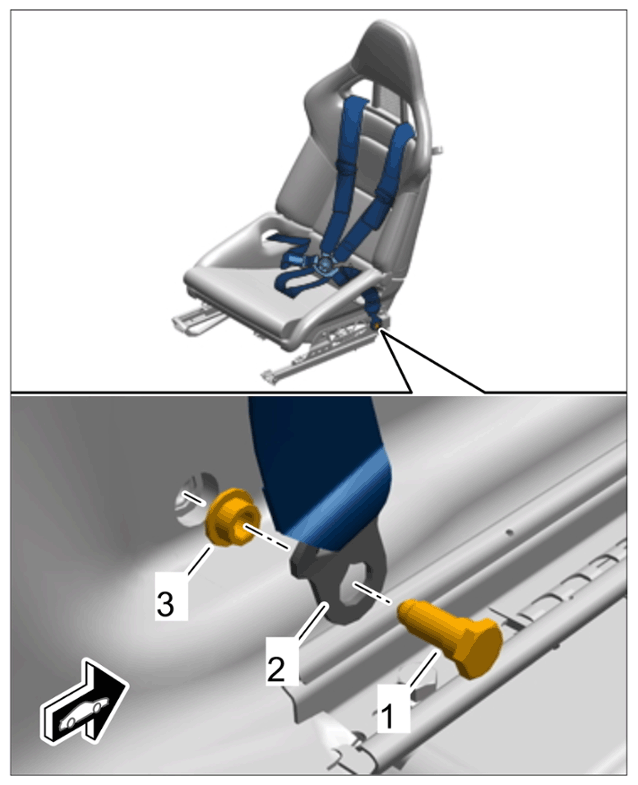

G14955101Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosening side fastening point
Fastening screw securing side seat-belt mount to centre tunnel Item 1 Tightening torque 50 Nm (37 ftlb.)

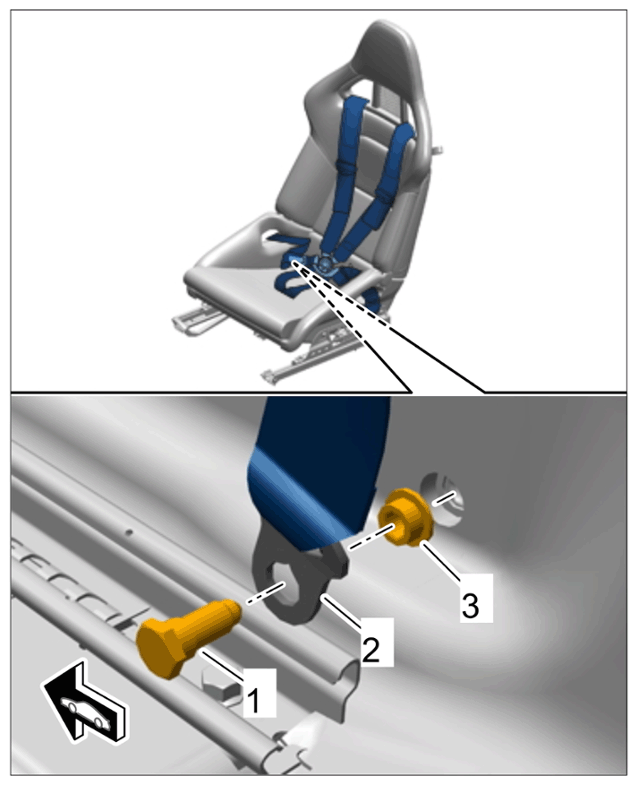

G14955103Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosening side fastening point

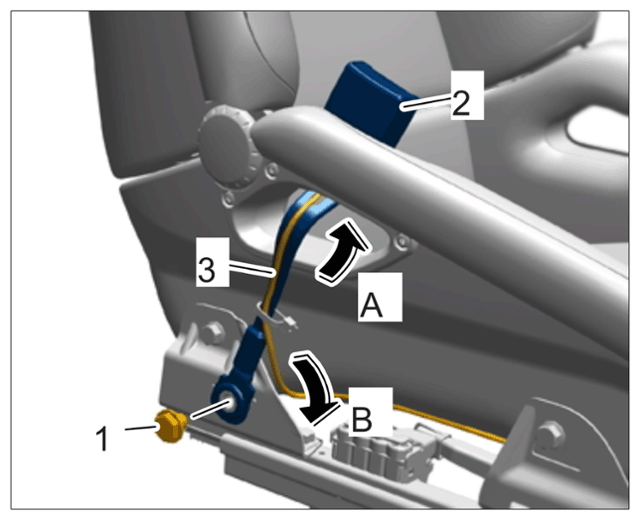

Fastening screw securing front belt lock to seat frame Item 1 Tightening torque 35 Nm (26 ftlb.) +/- 5 Nm (3.5 ftlb.)
G14955105Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installing front belt lock
Fastening screw for upper belt strap guide Item 1 Tightening torque 3 Nm (2 ftlb.) +/- 0.3 Nm (0.2 ftlb.)

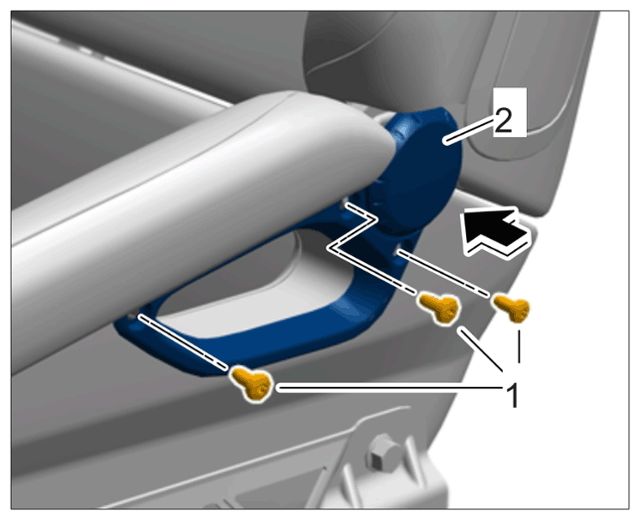

G14955107Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installing lower belt strap guide

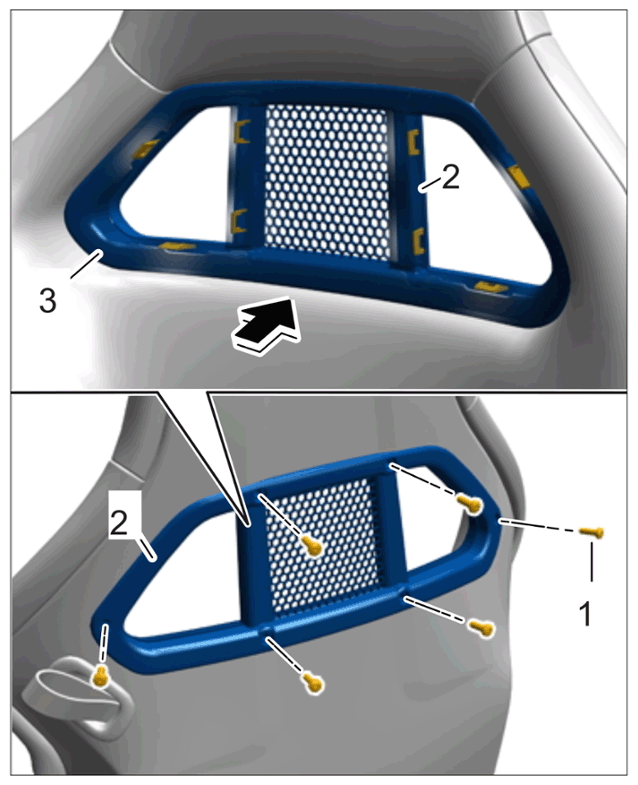

Fastening screw for lower belt strap guide Item 1 Tightening torque 3 Nm (2 ftlb.) +/- 0.3 Nm (0.2 ftlb.)
G14955109Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installing rear trim

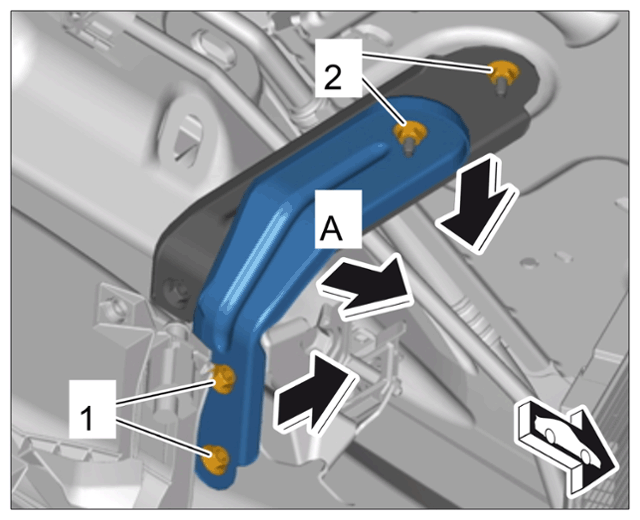

Fastening nut on supporting plate and headlight mounting   Tightening torque 9.7 Nm (7.5 ftlb.)
Fastening screw securing retaining bracket to body   Tightening torque 9.7 Nm (7.5 ftlb.)
G14955111Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing retaining bracket

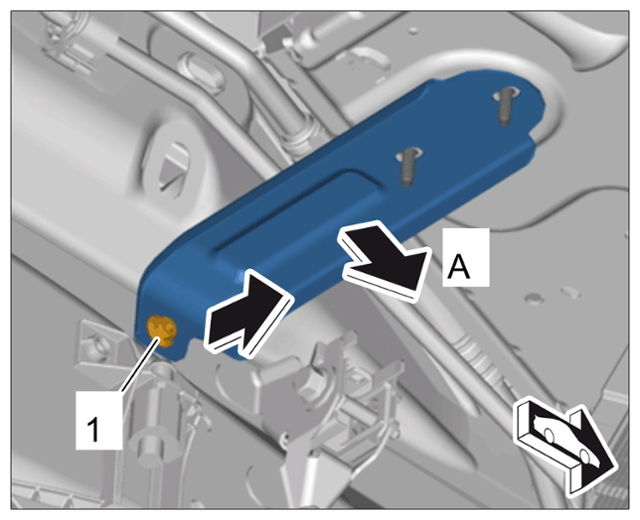

Fastening screw securing supporting plate to body   Tightening torque 9.7 Nm (7.5 ftlb.)
Fastening nut securing supporting plate to headlight mounting point   Tightening torque 9.7 Nm (7.5 ftlb.)
G14955113Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing supporting plate
Fastening screw for rear side window Item 1 Tightening torque 4 Nm (3 ftlb.) +/- 0.5 Nm (0.3 ftlb.)
G14955115Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing side window
Fastening screw for rear side window, top Item 2 Tightening torque 2.5 Nm (1.5 ftlb.) +/- 0.5 Nm (0.3 ftlb.)

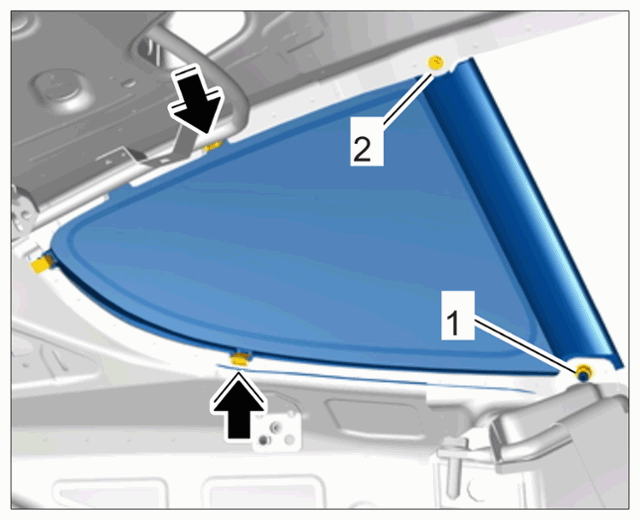

G14955117Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing side window
scientia non olet · About LEMON Manuals
