Roll-over bar

Location	Description	Type	Basic value
Fastening nuts	Item 1; Item 9: M8 hexagon nut	Tightening torque	20 Nm (15 ftlb.)
Fastening nuts	Item 6: M8 hexagon nut	Tightening torque	33 Nm (24 ftlb.)
Fastening screws	Item 2; Item 3; Item 5; Item 7; Item 10: Hexagon socket head bolt, M10 x 25	Tightening torque	55 Nm (41 ftlb.)
Fastening screws	Item 4; Item 8: Hexagon socket head bolt, M14 x 70	Tightening torque	160 Nm (118 ftlb.)

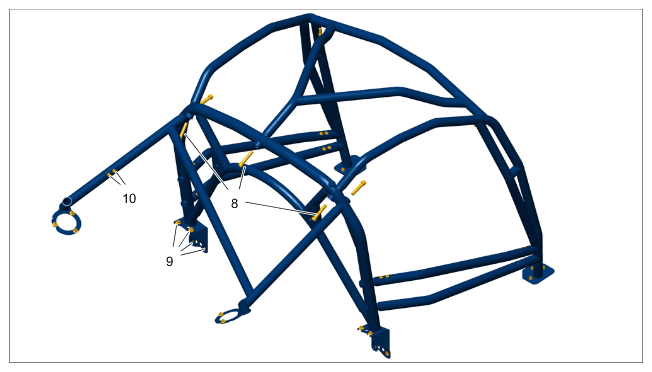

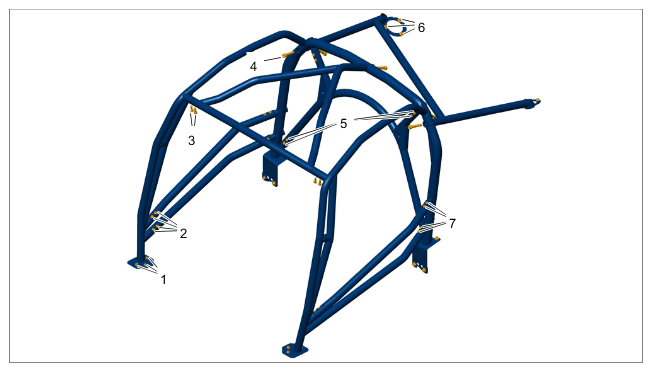

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Tightening torques for roll-over bar
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Tightening torques for roll-over bar

Location	Description	Type	Basic value
Impact protection	Item 1	Length	215 mm
Impact protection	Item 2	Length	185 mm
Impact protection	Item 3	Length	370 mm
Impact protection	Item 4	Length	177 mm
Impact protection	Item 5	Length	170 mm

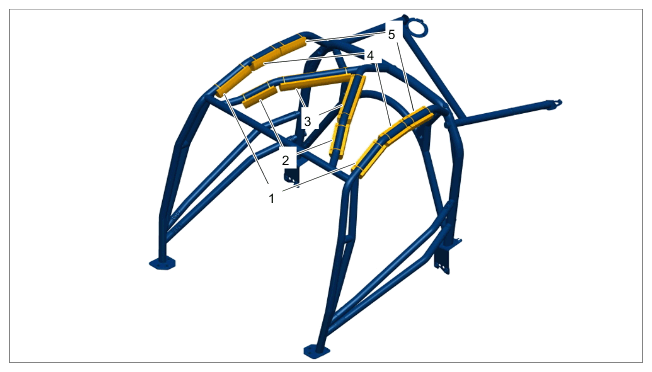

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fitting impact protection

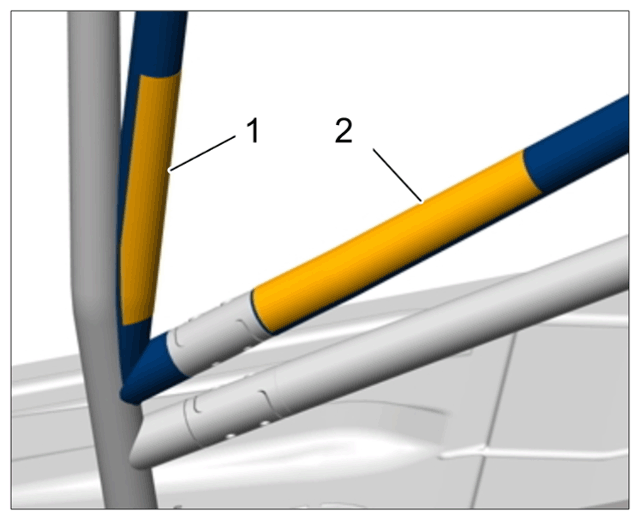

Location	Description	Type	Basic value
Protective film for paintwork	Item 1	Length	212 mm
Protective film for paintwork	Item 2	Length	253 mm
Sticking	on protective	film	for paintwork

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
