Bumper, front apron

Location	Description	Type	Basic value	Tolerance
Fastening screw for securing bumper to bodyshell	Item 2	Tightening torque	23 Nm (17 ftlb.)	+/- 2 Nm (1.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front bumper
Screws for front spoiler	Item 1	Tightening torque	3.2 Nm (2.4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Bolts

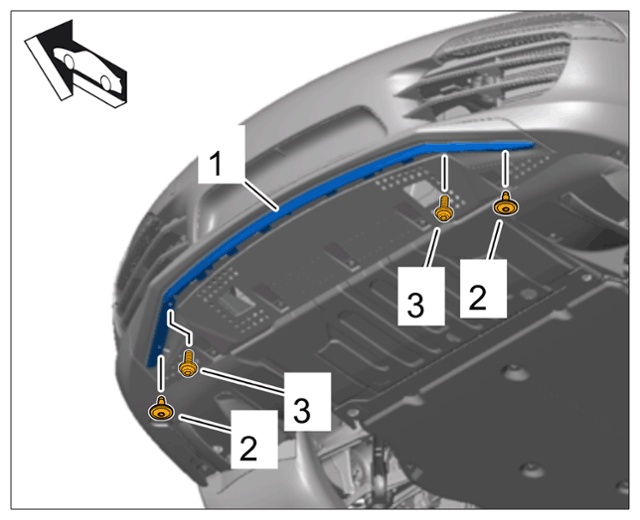

Fastening screws for front spoiler	Items 2 + 3	Tightening torque	2.7 Nm (2 ftlb.)	+/- 0.2 Nm (0.1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Loosening front spoiler

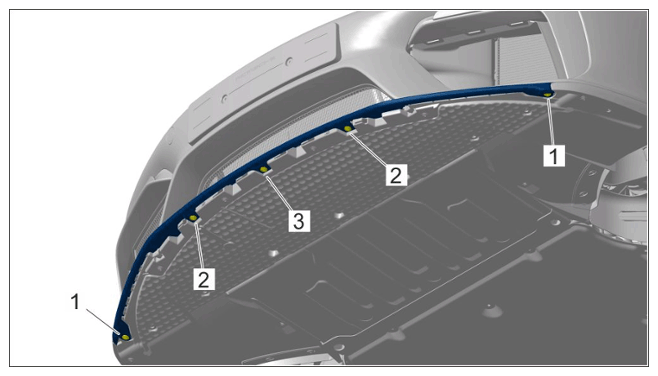

Fastening screws for front spoiler	Observe the specified tightening sequence	Tightening torque	3.2 Nm (2.4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws for front spoiler

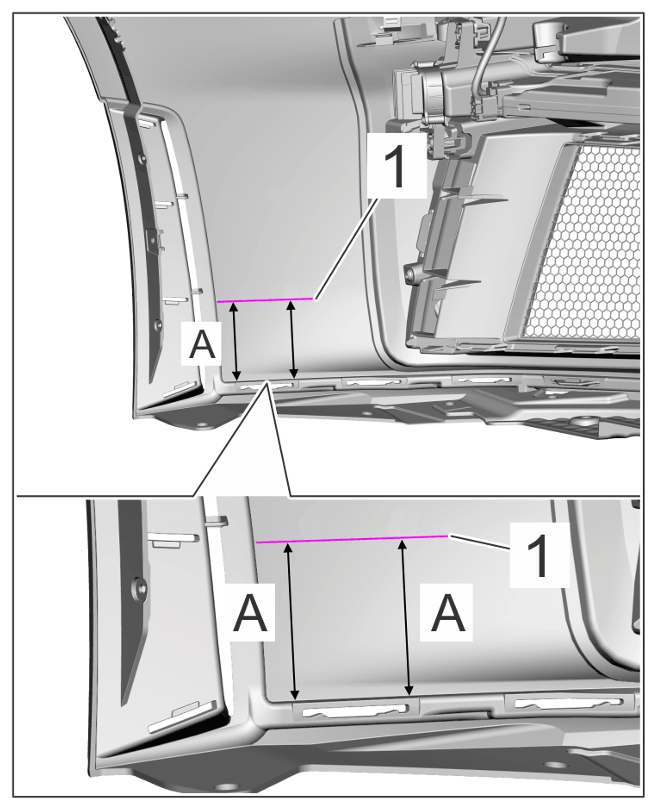

Distance marking line	Item A	Length	64 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Marking line

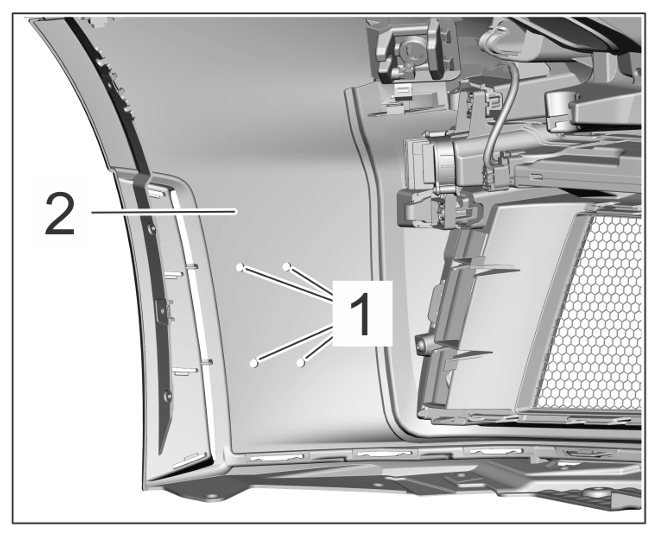

Bore diameter	Item 1	Diameter	8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Holes

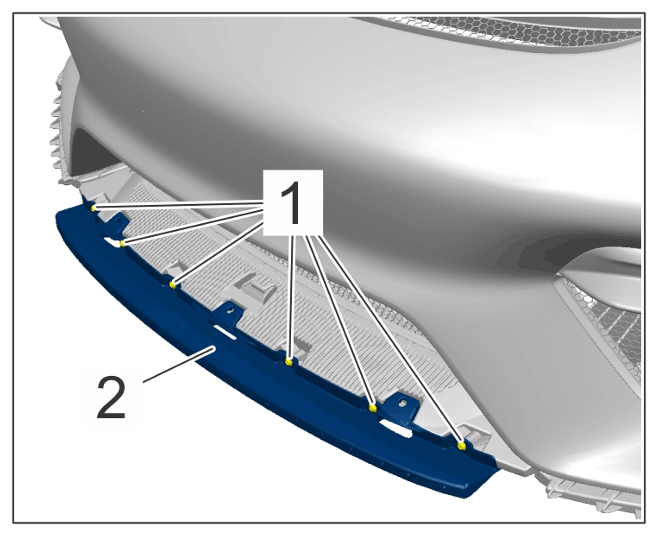

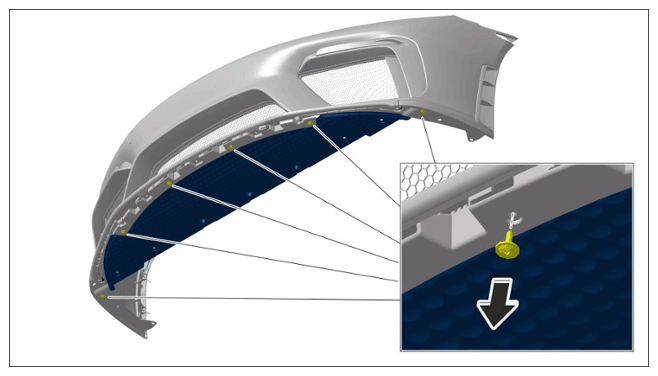

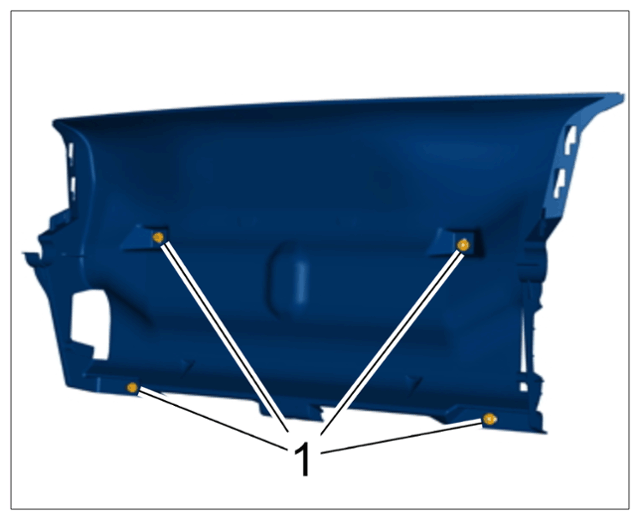

Lower part on front bumper		Tightening torque	2.5 Nm (1.8 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Lower part of front apron

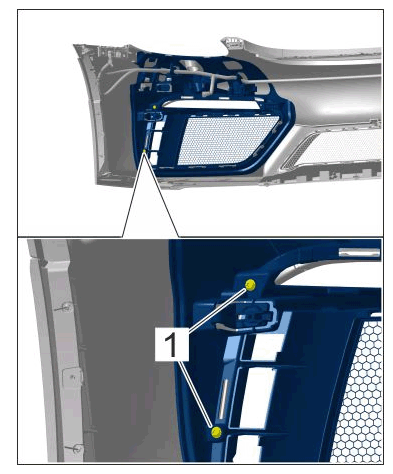

Screws on front plate (at the sides)	Item 1	Tightening torque	2.8 Nm (2.1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Bolts

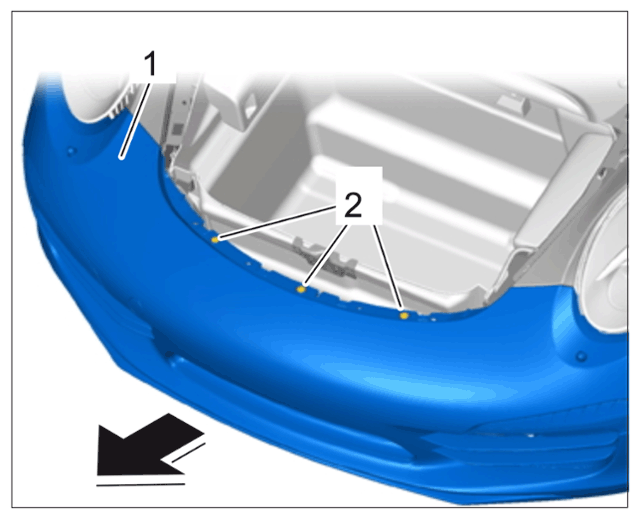

Fastening screw securing front apron to body	Item 2	Tightening torque	3.2 Nm (2.4 ftlb.)	+/- 0.6 Nm (0.4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Loosening front bumper at the top

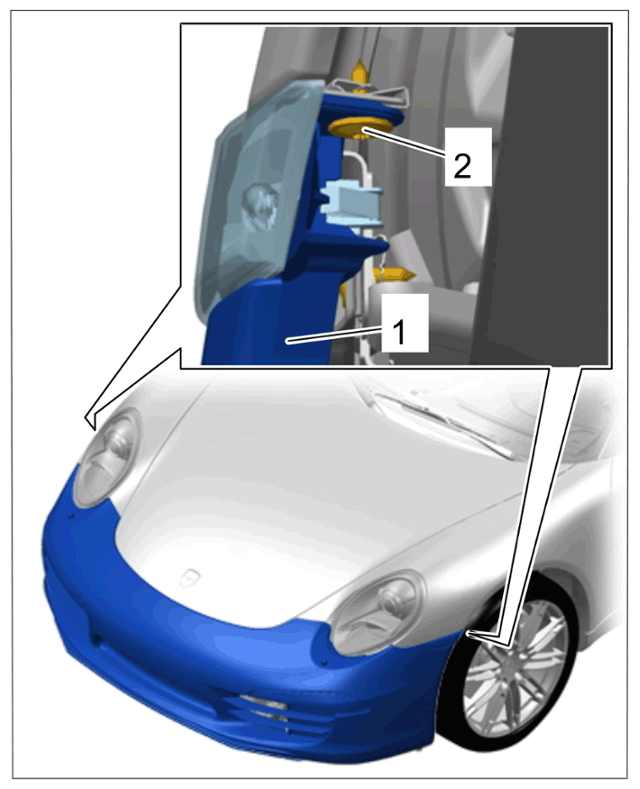

Fastening screw securing front bumper to body	Item 2	Tightening torque	3.2 Nm (2.4 ftlb.)	+/- 0.6 Nm (0.4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Loosening front bumper at the sides

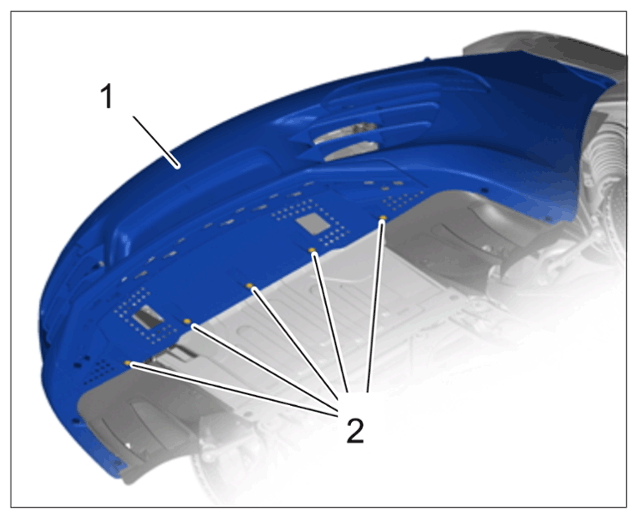

Fastening screw bumper front apron to body	Item 2	Tightening torque	3.2 Nm (2.4 ftlb.)	+/- 0.6 Nm (0.4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Loosening front bumper at the bottom

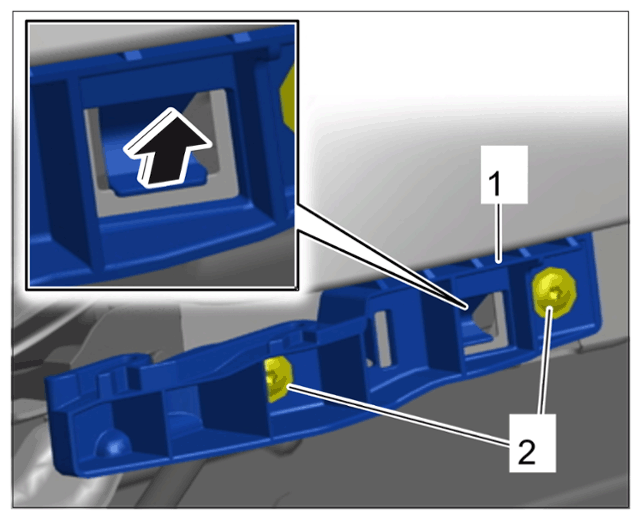

Fastening screws on retaining strip	Item 2	Tightening torque	3.2 Nm (2.4 ftlb.)	+/- 0.6 Nm (0.4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing retaining strip

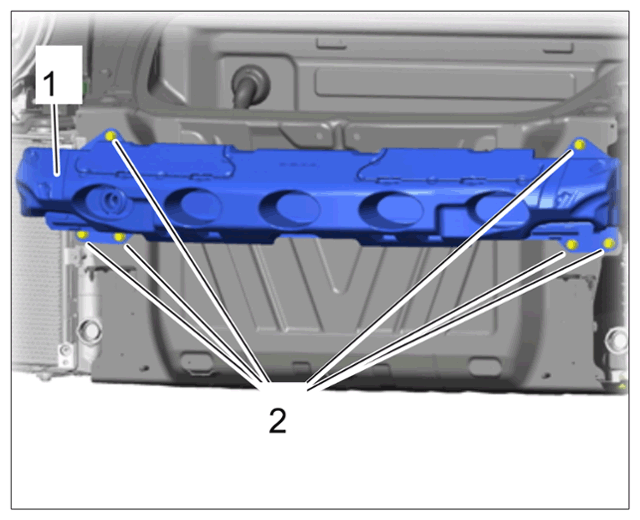

Fastening nut securing front retaining strip to body	Item 2	Tightening torque	10 Nm (7.4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing front retaining strip

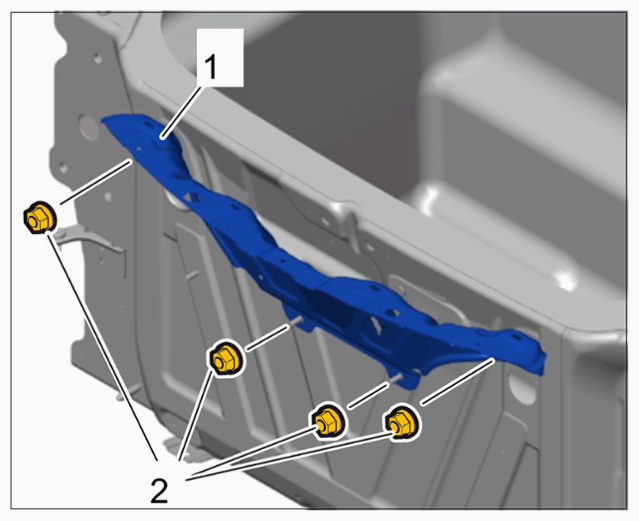

Fastening nuts securing front radiator frame to body	Item 1	Tightening torque	9.7 Nm (7.2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Tightening torque for front radiator frame

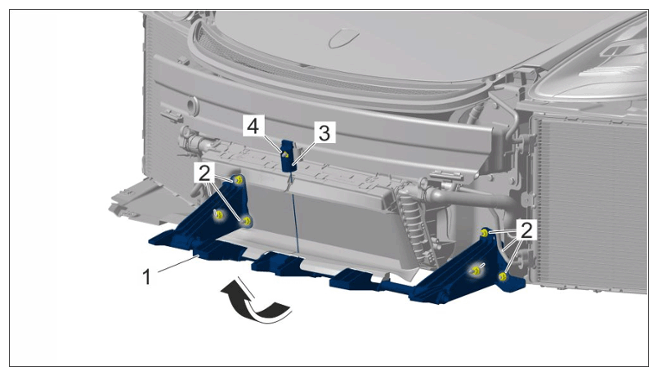

Fastening nut for pedestrian protection	Item 2	Tightening torque	23 Nm (17 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing pedestrian protection
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Tension rope

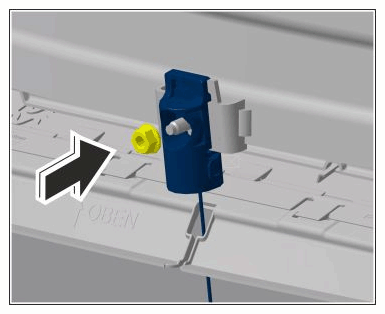

Fastening nut on pedestrian protection clamping device		Tightening torque	23 Nm (17 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Tensioning device mounting
Fastening nut for air guide		Tightening torque	10 Nm (7.4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Loosening air guide

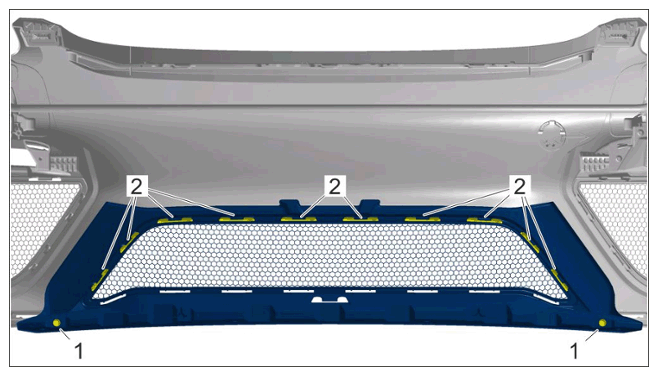

Fastening screws securing air grille to front bumper	Item 1	Tightening torque	2.5 Nm (1.8 ftlb.)	+/- 0.25 Nm (0.2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing inner part of air grille
Front air grille (at the sides) to front apron		Tightening torque	2.5 Nm (1.8 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws on front air grille (at the sides)
Radiator grille on front apron		Tightening torque	2.5 Nm (1.8 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Radiator grille

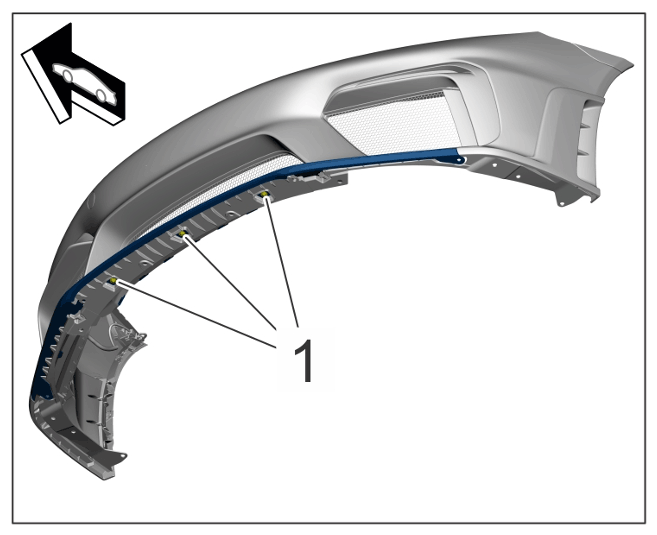

Front spoiler (reinforcement)	Item 1	Tightening torque	2.8 Nm (2.1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Bolts

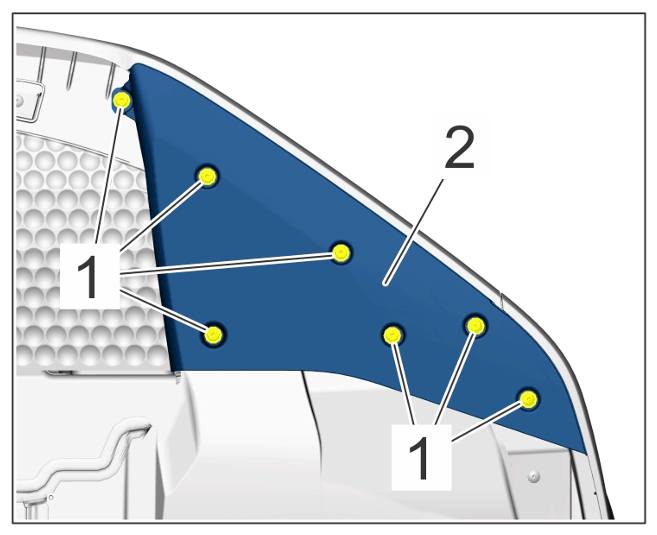

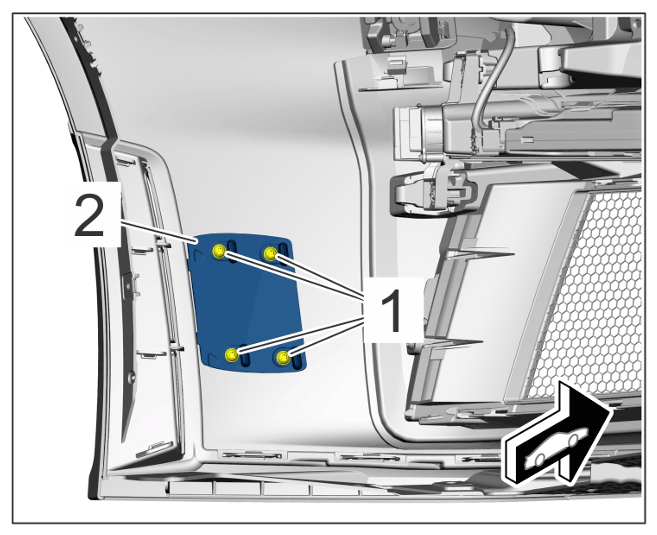

Screws on retainer plate for front spoiler (at the sides)	Item 1	Tightening torque	2.5 Nm (1.8 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Retainer plate
