Technical Values

Location	Description	Type	Basic value
Radiator module to body	Item 2	Tightening torque	8 Nm (6 ftlb.)

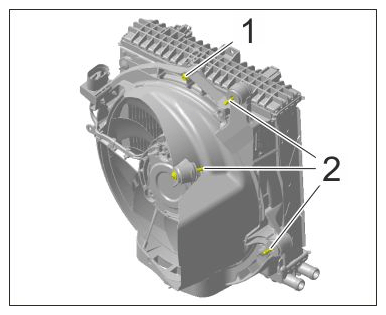

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Installation overview of radiator and electric fan
Lower trailing arm on rear axle housing	Final tightening/Screw/Nut/Item 9 and 10/Always replace threaded connection following removal.	Tightening torque	160 Nm

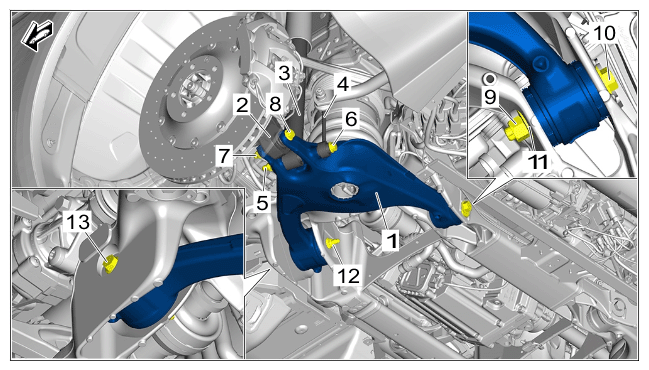

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Trailing arm
Tie rod to rear axle steering/cross member	Screw/Nu t/Item 2 and 4/Always replace threaded connection following removal. Screw in zero position.	Tightening torque	100 Nm (74 ftlb.)

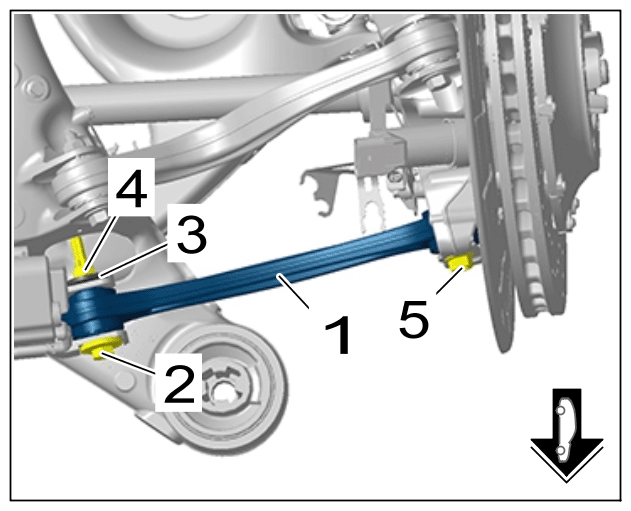

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Tie rod
Tie-rod ball to tie rod	Nut/Item 3	Tightening torque	90 Nm (67 ftlb.)

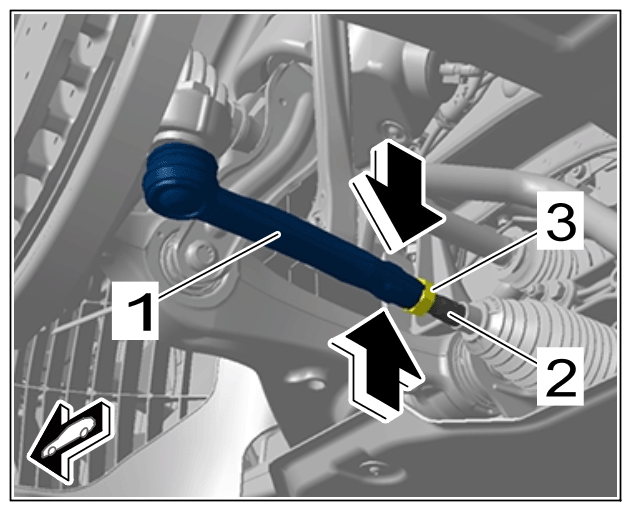

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Tie-rod ball on tie rod
Front-axle carrier to body	Initial tightening/Screw/Item 2 to 4/Always replace screws following removal	Tightening torque	70 Nm (52 ftlb.)

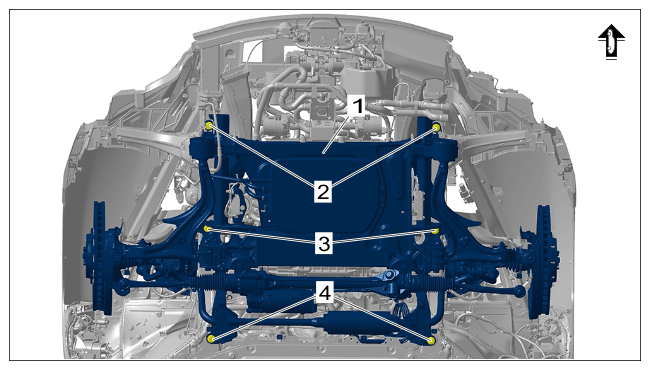

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front axle
Front-axle carrier to bod	Final tightening/Screws/Item 2 to 4/Always replace screws following removal	Torque angle	+ 180 °
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front axle
