Adjusting Rear-Axle Camber

  1. Adjust rear-axle camber.
    1. 1.1  Check camber value.

      > WM, 4495TW CONVERSION TABLE FOR WHEEL ALIGNMENT VALUES

    2. 1.2  Loosen nut -1-  .
    3. 1.3  Turn camber eccentric adjuster -2-  to adjust the camber.

      > WM, 4495TW CONVERSION TABLE FOR WHEEL ALIGNMENT VALUES

    4. 1.4  Tighten nut -1-  .

      > Tightening torque 160 Nm

    5. 1.5  Check camber value again.

      > WM, 4495TW CONVERSION TABLE FOR WHEEL ALIGNMENT VALUES

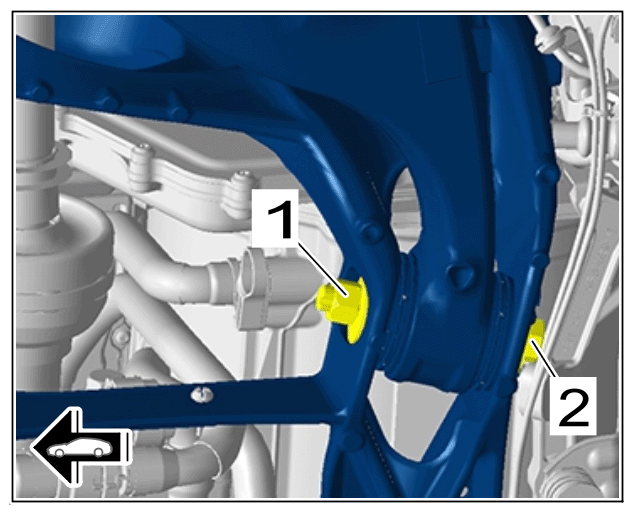

      G15553309Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Eccentric camber adjustment
