Tpm Set-Up

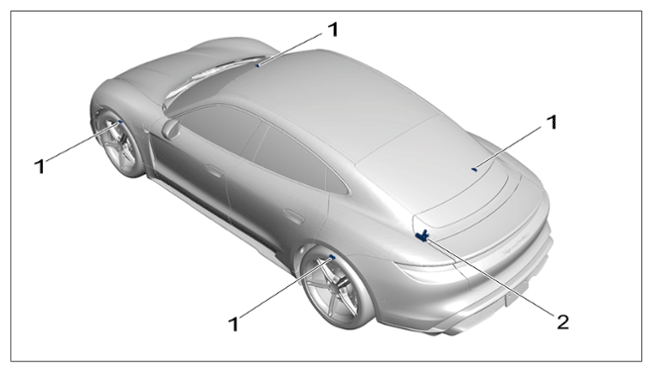

Fig 1: TPM Set-Up Components Location
G15553290Courtesy of PORSCHE CARS NORTH AMERICA, INC.

TPM set-up

1  Wheel electronics unit screwed to the rim base with TPM valve
2  TPM control unit with integrated central antenna
