Installing Wheel

NOTE: Removing/fitting wheels

Risk of damage to (ceramic) brake discs
→ Use two assembly pins when removing and fitting the wheel.

→ Carefully guide the wheel towards the wheel hub, thereby preventing any heavy impact on the (ceramic) brake disc.

Information

For vehicles with Tyre Pressure Monitoring (TPM):

Every new set of wheels or wheel change must be communicated to the control unit. Even if the new wheels have the same specifications as the old ones .
To do this, call up Tyre Pressure Monitoring (TPM) in the central display. The vehicle must be stationary .
Path: >> Settings → Vehicle → Tyre Pressure Monitoring (TPM) → Pressure deviation, Tyre selection, Full load << Enter or set the relevant values (yes/no) and confirm them .
Read and follow the information on the display: The control unit stores these values while the vehicle is driving (at more than 25 km/h (16 mph)). The current tyre pressure is not displayed during this time .
For information on teaching the TPM system, see
> 443225 TEACHING WHEEL ELECTRONICS

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Assembly aids (threaded bolts for fitting wheel)

Information

During removal and installation, use two assembly aids (threaded bolts for fitting wheel) -1- to prevent any heavy contact between the wheel and brake disc!
The assembly aids can be ordered using the Porsche Spare Parts Information.
To make fitting easier, a wheel fitting trolley can be used.

Information

The wheel bolts/security wheel bolts (thread and all surfaces) must not be greased!

In the event of heavy soiling, clean the wheel bolts and concavities in the rim with a lint-free cloth.
Clean wheel contact surfaces on the wheel hub and brake disc.

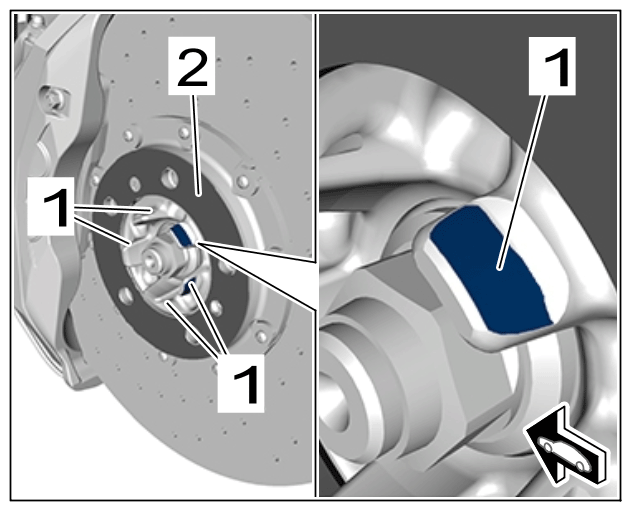

Re-grease or grease the wheel centring surfaces on the wheel hub -1- with a very thin coat of Optimoly TA (aluminium paste).
The wheel contact surface on the brake disc -2- and on the wheel itself must not be greased!

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wheel centring surface

Information

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

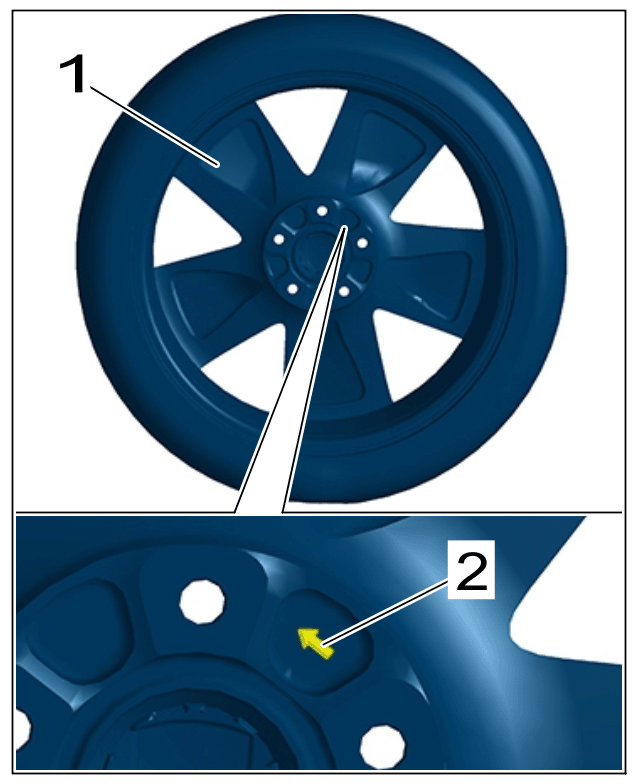

21-inch Exclusive wheels
- On vehicles with 21 -inch Exclusive wheels -1- , always check the rolling direction arrow -2- on the inside of the rim.
- Do not replace wheels from left to right!
Information

The use of power tools (impact bolter) for loosening and securing the wheel bolts is not permitted.

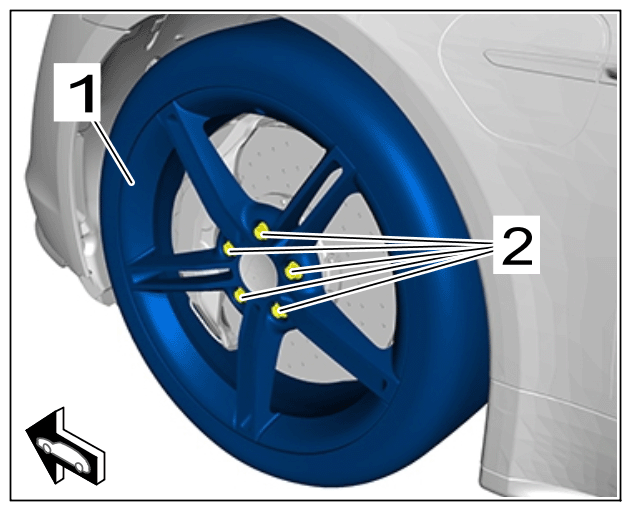

Fit wheel -1- .

4.1 Fit wheel -1- on the wheel hub. Fit three wheel bolts -2- (do not tighten yet).
4.2 Unscrew assembly aids (threaded bolts) and fit two wheel bolts -2- .
4.3 Lower the vehicle.

4.4 Tighten wheel bolts -2- .

> Tightening torque 160 Nm (118 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wheel
