Technical Values

Location	Description	Type	Basic value
Cross member/servo motor for rear axle steering to rear axle housing	Initial tightening/Screws/Item 5 to 8/Observe tightening sequence Item 5 to 8./Always replace screws following removal.	Tightening torque	70 Nm (52 ftlb.)

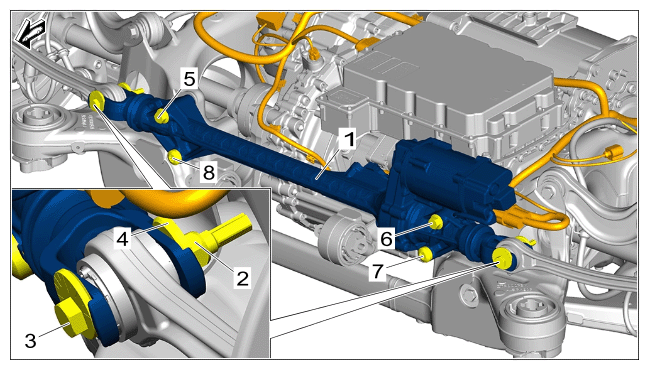

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Servo motor for rear axle steering
Cross member/servo motor for rear axle steering to rear axle housing	Final tightening/Screws/Item 5 to 8/Observe tightening sequence Item 5 to 8./Always replace screws following removal.	Torque angle	+ 90 °
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Servo motor for rear axle steering
Tie rod to rear axle steering/cross member	Screw/Nut/Item 2 and 4/Always replace threaded connection following removal./Screw in zero position.	Tightening torque	100 Nm (74 ftlb.)

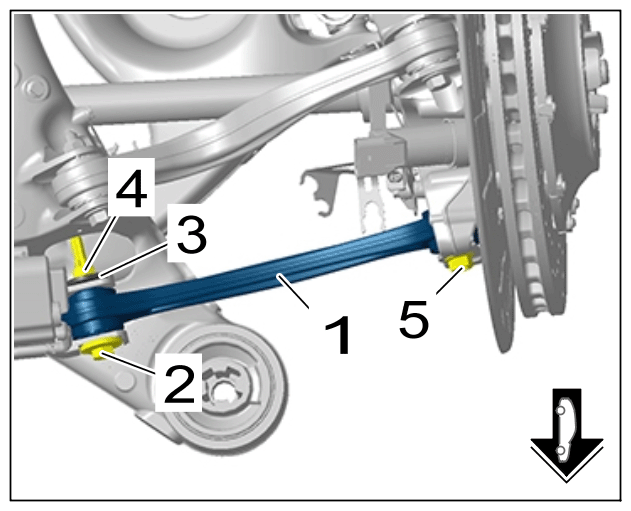

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Tie rod
