Removing Bellows For Steering-Gear Housing

CAUTION: Electrically moved components

Danger of limbs being trapped
→ Switch off electric power to drive motor.

→ Make sure it does not switch on again.

→ Check that there is no electric charge.

Information

Once PDCC is ready for operation, chassis adjustments can be made. To avoid injury/crushing, only work near the anti-roll bar, lower trailing arms and bellows of the steering gear without establishing operational readiness and always allow for the run-on time of 60 seconds.

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is practically identical.

Information

The steering-gear housing bellows must not be kinked or damaged.

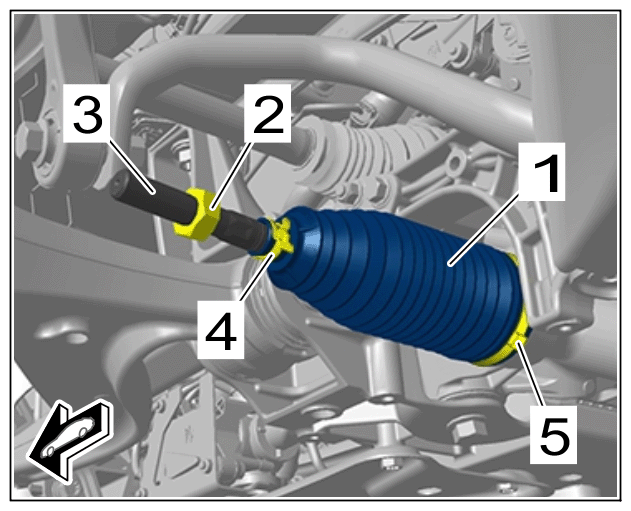

Remove steering-gear housing bellows -1- .
1. 1.1 Unscrew lock nut -2- from tie rod -3- .
2. 1.2 Loosen spring band clamp -4- using > VAS 6890 - Spring Band Clamp Pliers .
3. 1.3 Cut clamp -5- using a suitable tool.
4. 1.4 Pull steering-gear housing bellows -1- off the tie rod -3- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Steering-gear housing bellows
