Technical Values

Location	Description	Type	Basic value

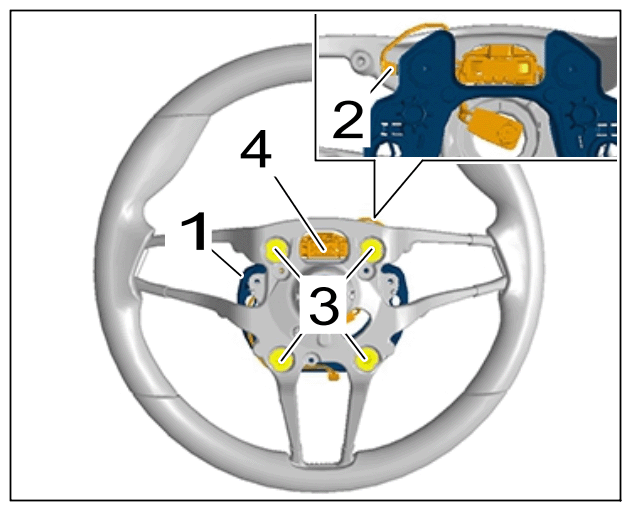

Contact bridge to steering wheel skeleton	Screws/Item 3	Tightening torque	3.5 Nm (2.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Contact bridge

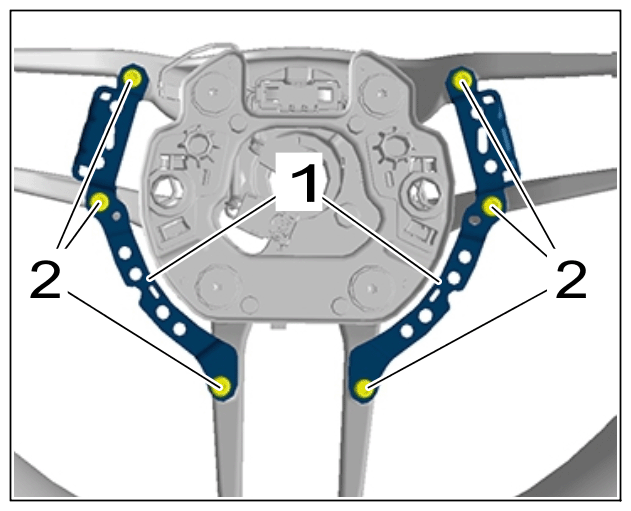

Bracket for multi-functional switch to steering wheel skeleton	Screws/Item 2	Tightening torque	3.5 Nm (2.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Bracket for multi-functional switch

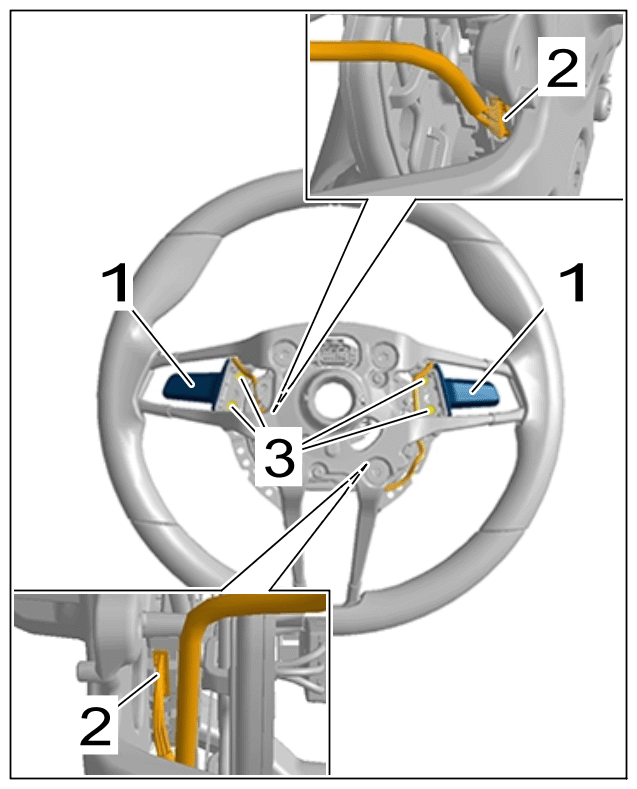

Multi-functional switch to bracket for multi-functional switch	Screws/Item 3	Tightening torque	1.5 Nm (1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Multi-functional switch

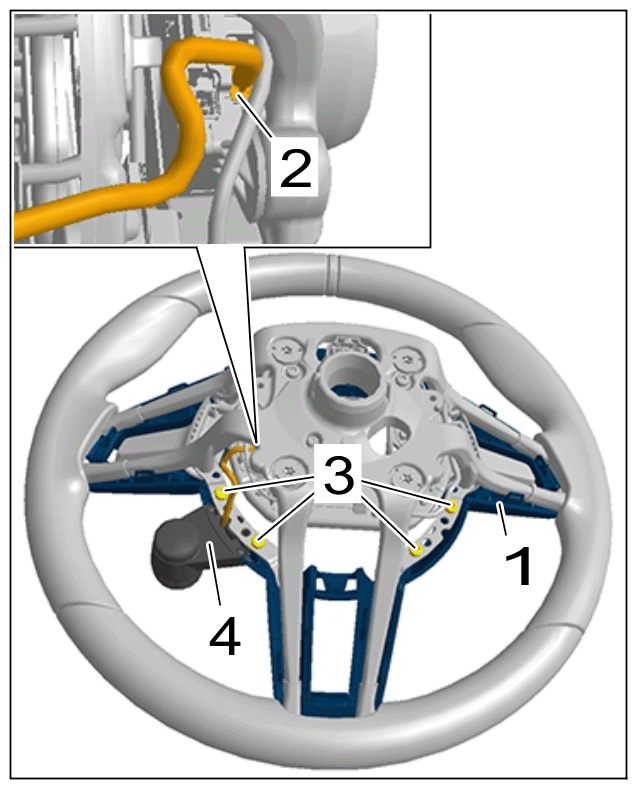

Front steering wheel cover to bracket for multi-functional switch	Screws/Item 3	Tightening torque	1.5 Nm (1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front steering wheel cover

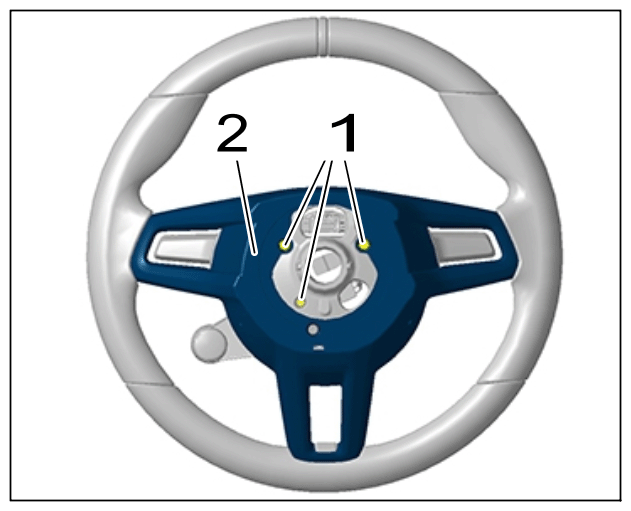

Rear steering wheel cover to steering wheel skeleton	Screws/Item 1	Tightening torque	2.8 Nm (2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear steering wheel cover
