Technical Values
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

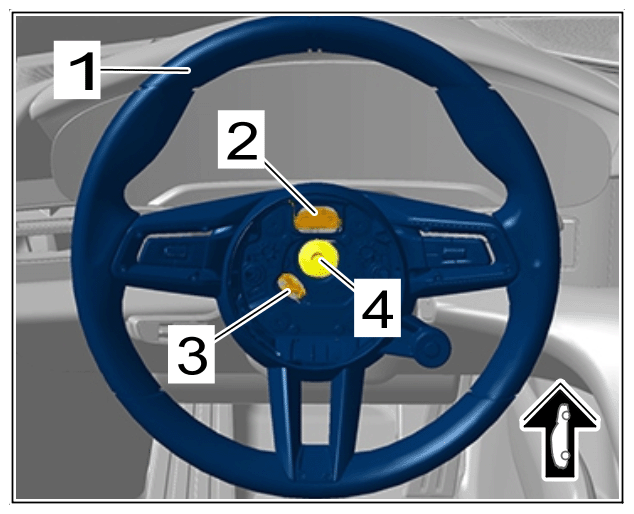

| Steering wheel to steering column | Initial tightening/Screw/Item 4/Always replace screw following removal. | Tightening torque | 30 Nm (22 ftlb.) | ||
|
Steering wheel |
|||||
| Steering wheel to steering column | Final tightening/Screw/Item 4/Always replace screw following removal. | Torque angle | + 90 ° | ||
|
Steering wheel |
|||||
