Removing Steering Wheel

  1. Turn wheels to straight-ahead position.
  2. Remove steering wheel -1-  .
    1. 2.1  Release and disconnect electric plug connection -2-  .
    2. 2.2 Only for vehicles with heated steering wheel:

      Release and disconnect electric plug connection -3-  .

    3. 2.3  Unscrew screw -4-  .

      Replace screw.

    4. 2.4  Remove steering wheel -1-  .

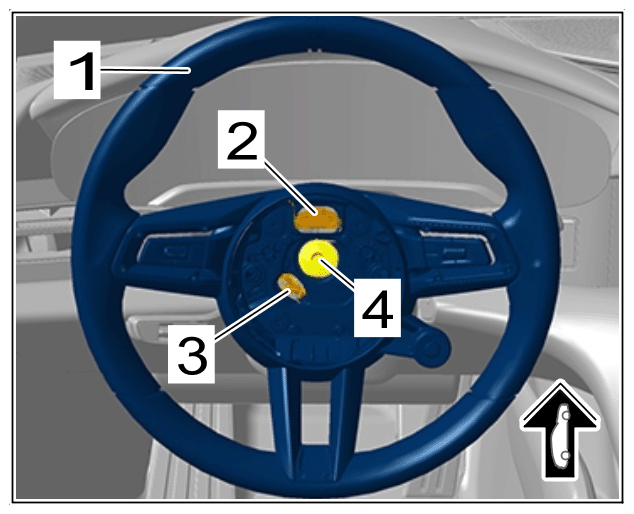

    G15553645Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Steering wheel
