Installing Steering Wheel

Information

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

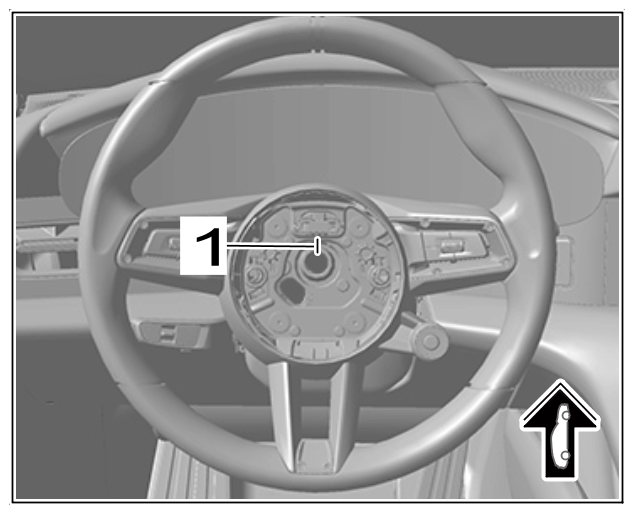

Steering wheel marking

• The wheels must be in straight-ahead position  .
• The marking on the steering wheel and steering column -1- must be aligned  .

1. Install steering wheel -1-  .
   1. 1.1  Position steering wheel -1-  .
   2. 1.2 Fit and tighten new screw -4-  .

      > Tightening torque 30 Nm (22 ftlb.)

      > Torque angle + 90 °

   3. 1.3  Connect and lock electric plug connection -2-  .
   4. 1.4 Only for vehicles with heated steering wheel:

      Connect and lock electric plug connection -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

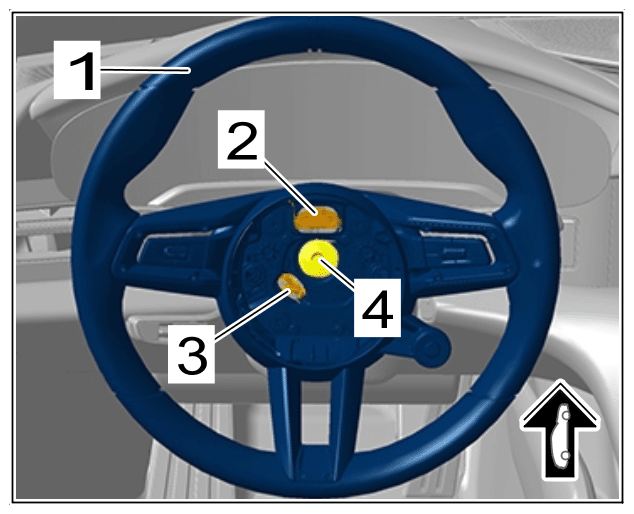

   Steering wheel
