Removing Rear Air Guide

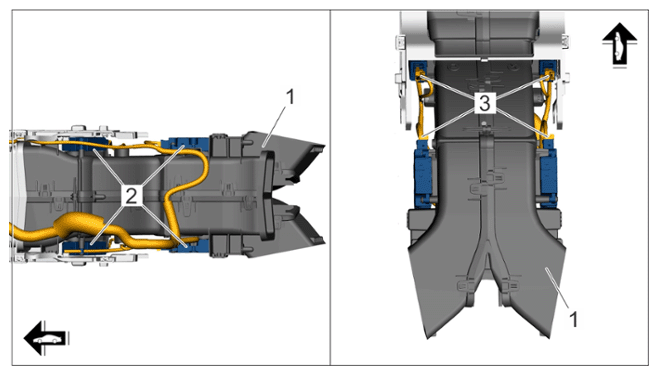

1. Release and disconnect electric plug connections -2-  on servo motors -3-  for rear air guide (on rear centre console) -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Servo motors on rear air guide (on rear centre console)

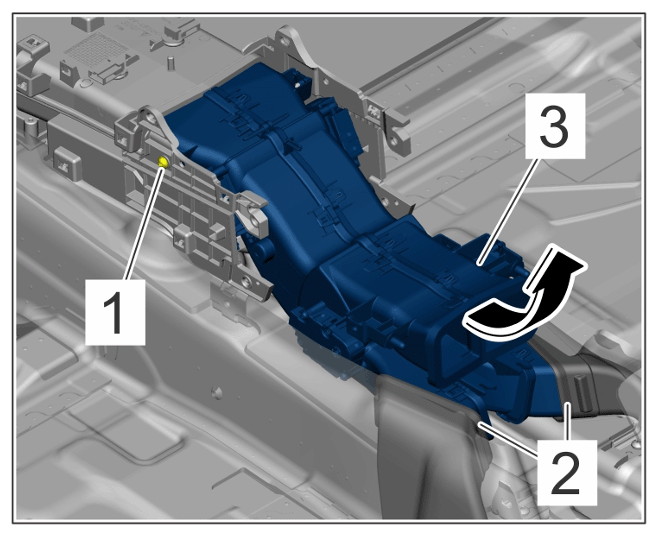

2. Rear air guide (on rear centre console) -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Rear air guide (on rear centre console)

   1. 2.1 Unscrew screws at the left and right -1-  .
   2. 2.2 Unclip air guides for rear footwell -2-  from rear air guide (on rear centre console) -3-  .
   3. 2.3 Swivel rear air guide (on rear centre console) -3-  upwards towards the rear -Arrow-  .

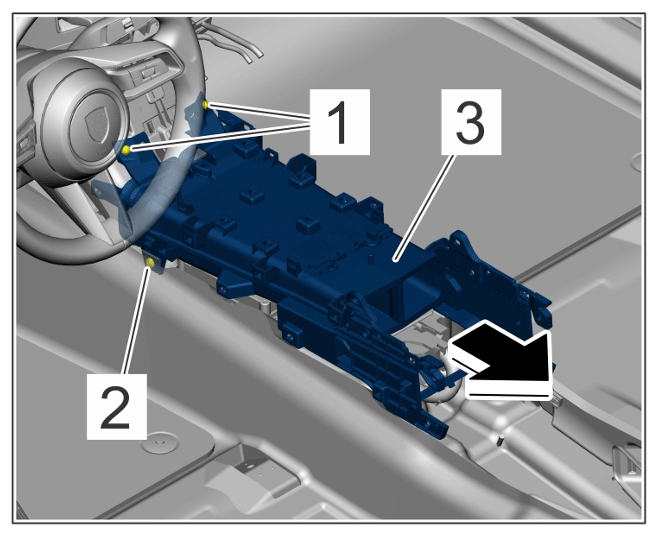

3. Remove rear air guide (on console), front -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Rear air guide (on console), front

   1. 3.1 Unscrew screws -1 and 2-  .
   2. 3.2 Remove rear air guide (on console) at the front -3-  towards the rear -Arrow-  .

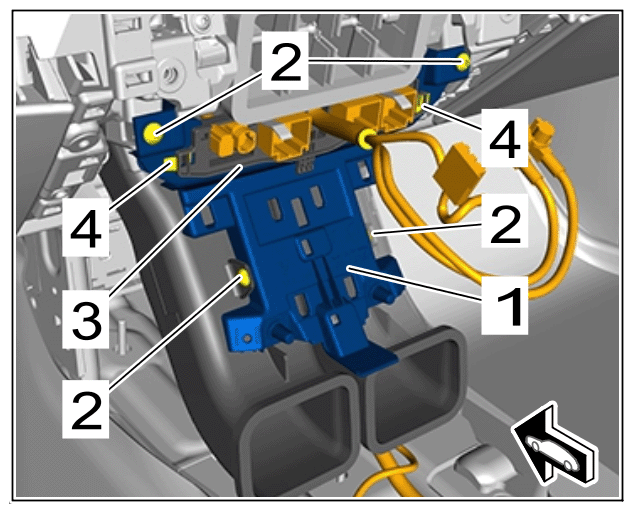

4. Remove mounting -1-  .
   1. 4.1 Unscrew screws -2-  .
   2. 4.2 Unclip strip for switches -3-  at the clips -4-  and set it aside.
   3. 4.3 Remove mounting -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Support

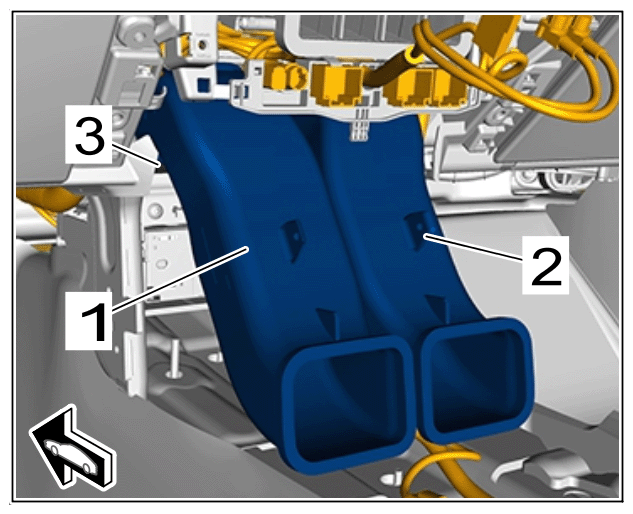

5. Pull off rear air guides on heating/fresh air unit -1 and 2-  from heating/fresh air unit -3-  and remove them.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear air guide (on heating/fresh-air unit)
