Installation Position

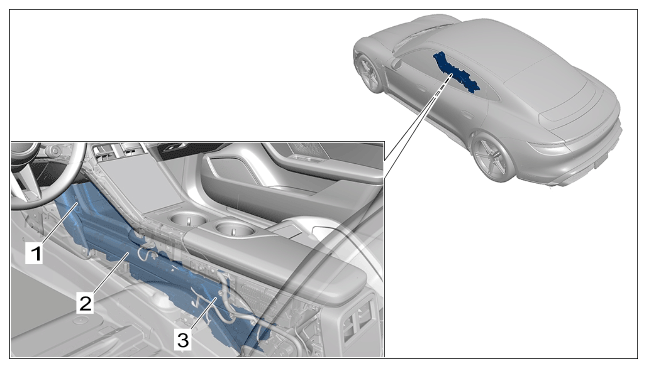

Fig 1: Rear Air Guide Components Location
G15565487Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation position

1  Rear air guide (on heating/fresh-air unit)
2  Rear air guide (on centre console), front
3  Rear air guide (on centre console), rear
