Removing Front Air Guide At The Side (To Door-Window Air Vent) - On Driver'S Side

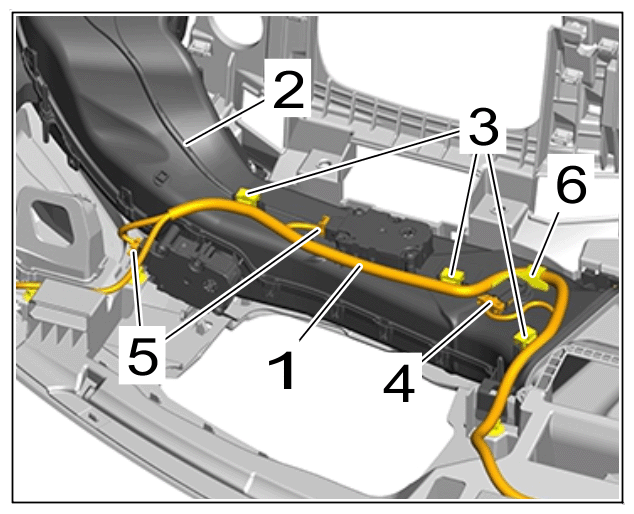

Disconnect electric line -1- from front air guide at the side (to door-window air vent) - on driver's side -2- .
1. 1.1 Unclip clips -3- .
2. 1.2 Release and disconnect electric plug connection on temperature sensor -4- .
3. 1.3 Release and disconnect electric plug connection on servo motors -5- .
4. 1.4 Disengage electric line -1- from bracket -6- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric line

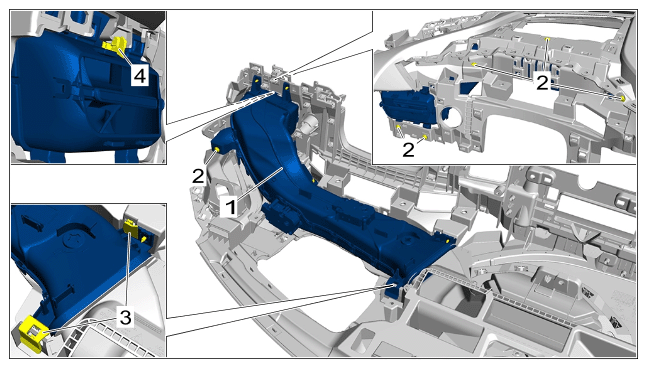

Remove front air guide at the side (to door-window air vent) - on driver's side -1- .
1. 2.1 Unscrew and remove screws -2- .
2. 2.2 Unclip clips -3- .
3. 2.3 Disengage retaining lug -4- and remove front air guide (to door-window air vent) - on driver's side -1- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front air guide at the side (to door-window air vent) - on driver's side
