Removing Centre Air Guide (For Centre Air Vent)

1. 1.1 Unscrew and remove screws -2-  .
2. 1.2 Pull out centre air guide (for centre air vent) -1-  until the electric plug connections -3-  are accessible.
3. 1.3 Release and disconnect electric plug connections -3-  .
4. 1.4 Unclip clips -4-  .
5. 1.5 Release pulse sender -5-  by turning it 90° outwards and pull it off.
6. 1.6 Remove centre air guide (for centre air vent) -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

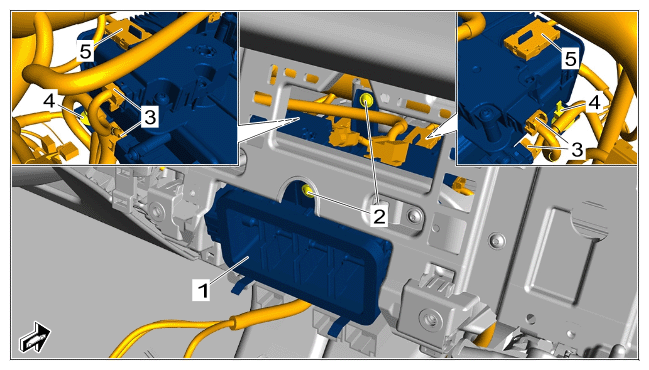

Centre air guide (for centre air vent)
