Installing Centre Air Guide (For Centre Air Vent)

1. 1.1 Push on pulse sender -5-  and lock it by turning it 90° inwards.
2. 1.2 Clip in clips -4-  .
3. 1.3 Connect and lock electric plug connections -3-  .
4. 1.4 Position centre air guide (for centre air vent) -1-  .
5. 1.5 Tighten screws -2-  .

> Tightening torque 1.5 Nm (1 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

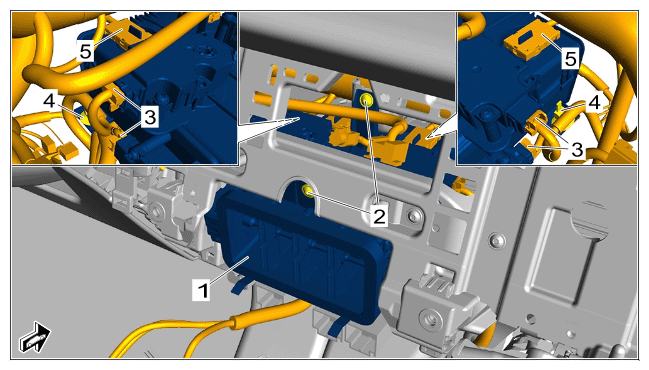

Centre air guide (for centre air vent)
