WM, 853419 Removing And Installing Air Guides For Rear FOOTWELL Outlet Vent
>>
Technical Values
Technical Values
Location
Description
Type
Basic value
Tolerance 1
Tolerance 2
Nut of air guide for rear footwell outlet vent
Item 3
Tightening torque
3 Nm (2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

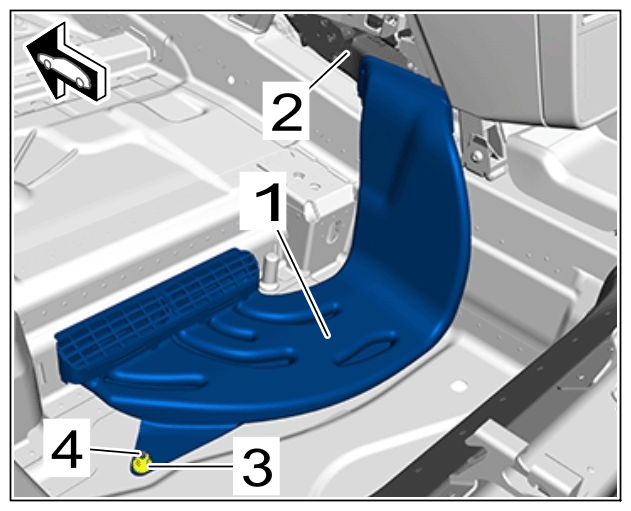

Air guide for rear footwell outlet vent
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
