Removing Air Guides For Rear FOOTWELL Outlet Vent

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

1. Remove air guide for rear footwell outlet vent -1-  .
   1. 1.1 Unscrew nut -3-  and pull air guide for rear footwell outlet vent -1-  off the threaded bolts -4-  .
   2. 1.2 Disconnect air guide for rear footwell outlet vent -1-  from the air distributor -2-  .
   3. 1.3 Remove air guide for rear footwell outlet vent -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

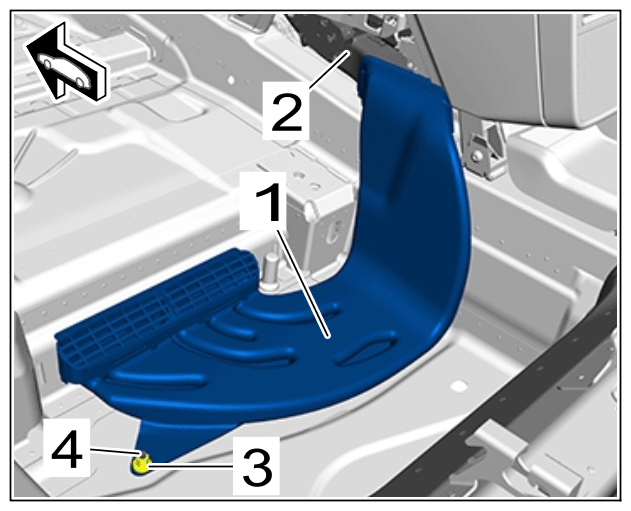

   Air guide for rear footwell outlet vent
