Installing Air Guides For Rear FOOTWELL Outlet Vent

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

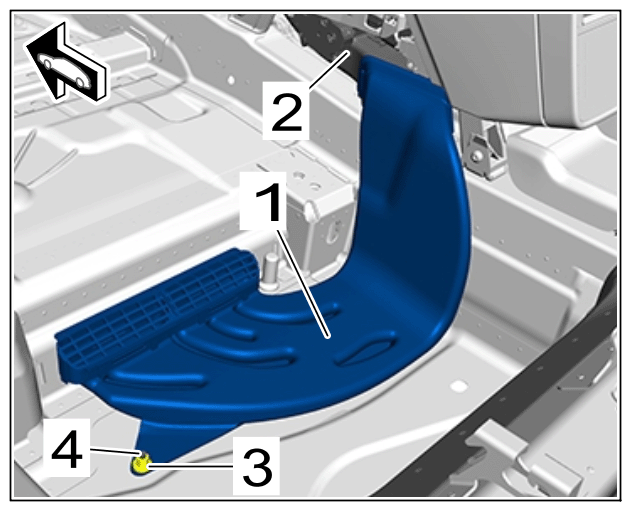

1. Install air guide for rear footwell outlet vent -1-  .
   1. 1.1 Connect and lock air guide for rear footwell outlet vent -1-  on the air distributor -2-  .
   2. 1.2 Position air guide for rear footwell outlet vent -1-  on the threaded bolts -4-  .
   3. 1.3 Fit and tighten nut -3-  .

   > Tightening torque 3 Nm (2 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Air guide for rear footwell outlet vent
