Installing Heating/Fresh-Air Fan Motor

1. 1.1 Position heating/fresh-air fan motor -1-  .
2. 1.2 Screw in and tighten screws -3-  .

   > Tightening torque 1.5 Nm (1 ftlb.)

3. 1.3 Connect and lock electric plug connection -2-  .
4. 1.4 Secure insulating mat on heating/fresh-air fan motor -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

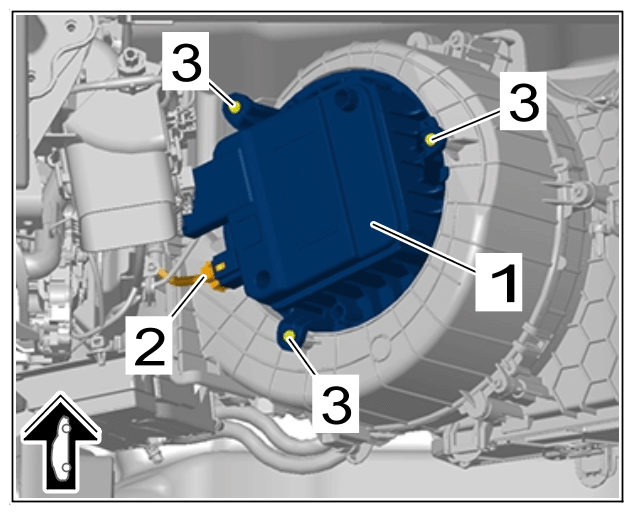

Heater/fresh-air fan motor

1. 2.1 Position holding strut for knee airbag -1-  .
2. 2.2 Screw in and tighten screws -2-  .

> Tightening torque 4 Nm (3 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

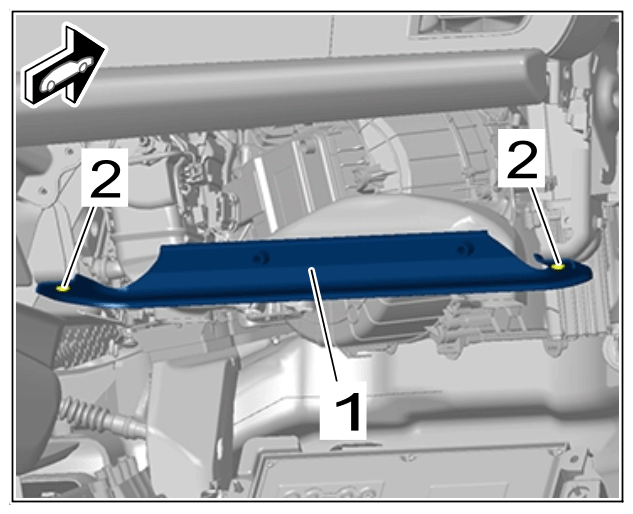

Holding strut for knee airbag
