Installing (Front) Plenum Panel Cover

  1. Install front plenum panel cover -1-  .
    1. 1.1 Position front plenum panel cover -1-  and fit it into the retaining lugs -3-  .
    2. 1.2 Clip in clips -2-  .

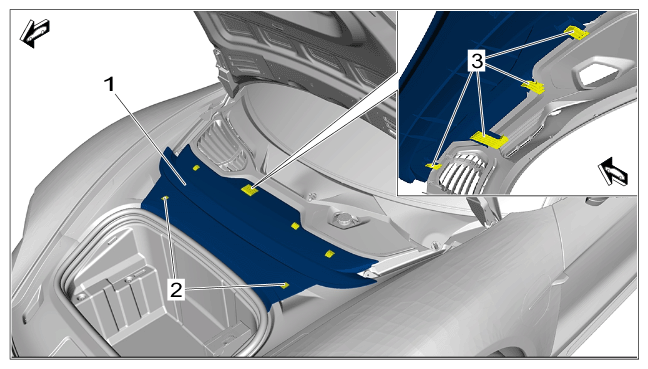

    G15565477Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front plenum panel cover
