Technical Values

Location	Description	Type	Basic value

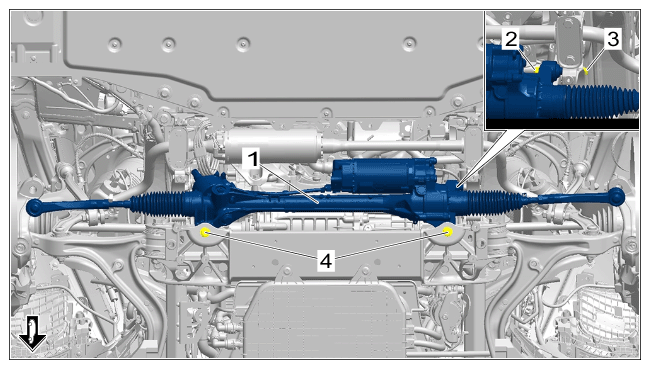

Power-steering gear to front-axle carrier	Initial tightening/Screws/Item 4/Always replace screws following removal.	Tightening torque	70 Nm (52 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Power-steering gear
Power-steering gear to front-axle carrier	Final tightening/Screws/Item 4/Always replace screws following removal.	Torque angle	+ 180 °
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Power-steering gear
Power-steering gear to front-axle carrier at the sides	Initial tightening/Screw/Nut/Item 2 and 3/Always replace threaded connection following removal.	Tightening torque	20 Nm (15 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Power-steering gear
Power-steering gear to front-axle carrier at the sides	Final tightening/Screw/Nut/Item 2 and 3/Always replace threaded connection following removal.	Torque angle	+ 180 °
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Power-steering gear

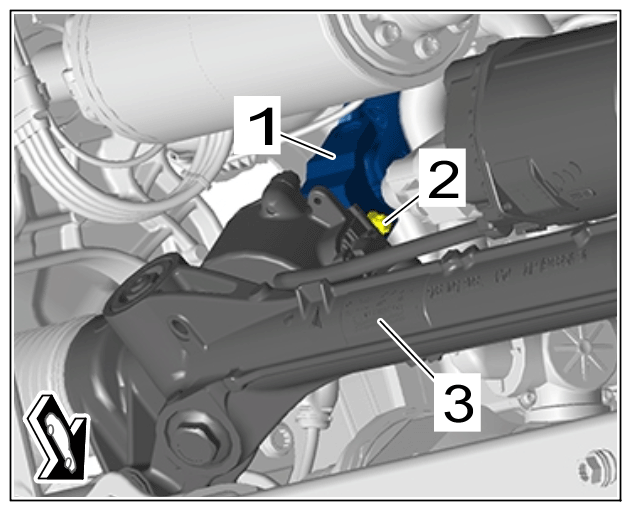

Steering shaft to power-steering gear	Initial tightening/Screw/Item 2/Always replace screw following removal.	Tightening torque	20 Nm (15 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Universal joint for steering column
Steering shaft to power-steering gear	Final tightening/Screw/Item 2/Always replace screw following removal.	Torque angle	90 °
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Universal joint for steering column

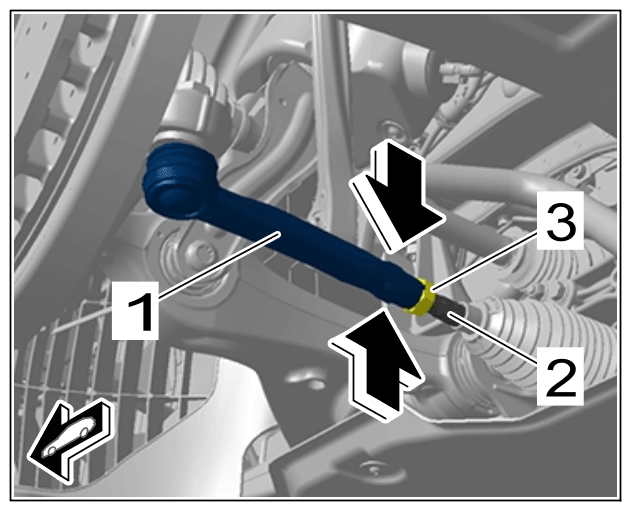

Tie-rod ball to tie rod	Nut/Item 3	Tightening torque	90 Nm (67 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Tie-rod ball on tie rod

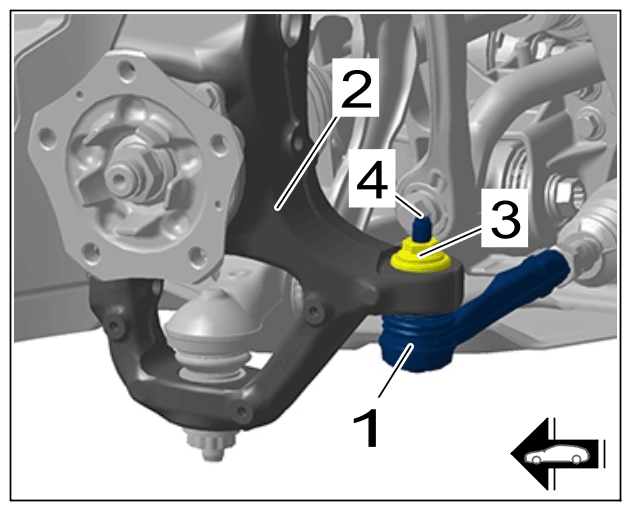

Tie-rod ball to wheel bearing housing	Nut/Item 3	Tightening torque	85 Nm (63 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Tie-rod ball

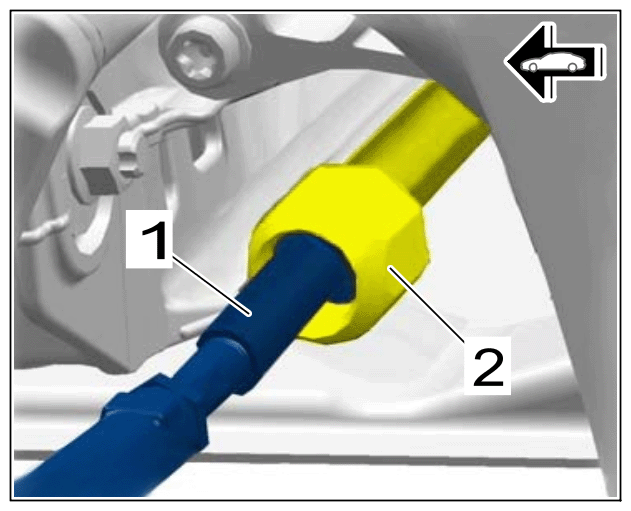

Tie rod to steering gear	Item 2	Tightening torque	140 Nm (104 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Tie-rod ball joint

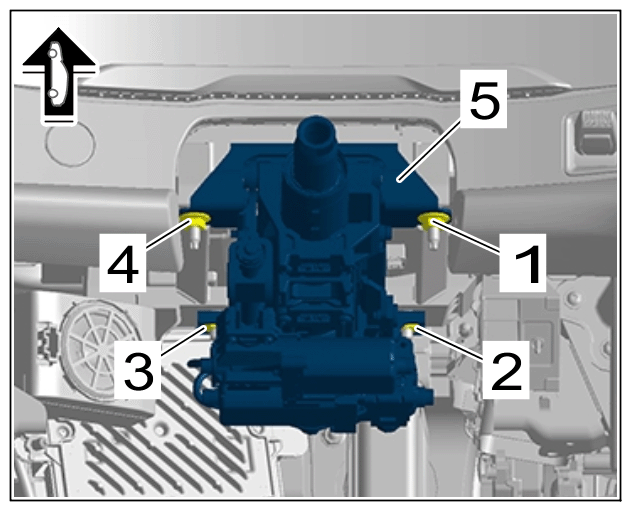

Steering column to body	Nuts/Item 1 to 4/Observe tightening sequence 1 to 4!	Tightening torque	20 Nm (15 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Steering column

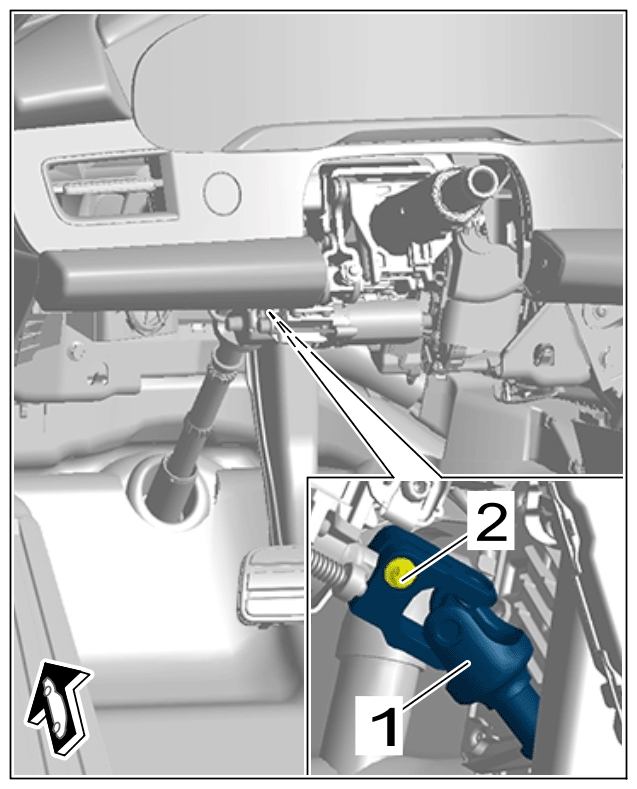

Steering shaft to steering column	Initial tightening/screw/Item 2/Always replace screw following removal.	Tightening torque	20 Nm (15 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Universal joint
Steering shaft to steering column	Final tightening/screw/Item 2/Always replace screw following removal.	Torque angle	+ 90 °
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Universal joint

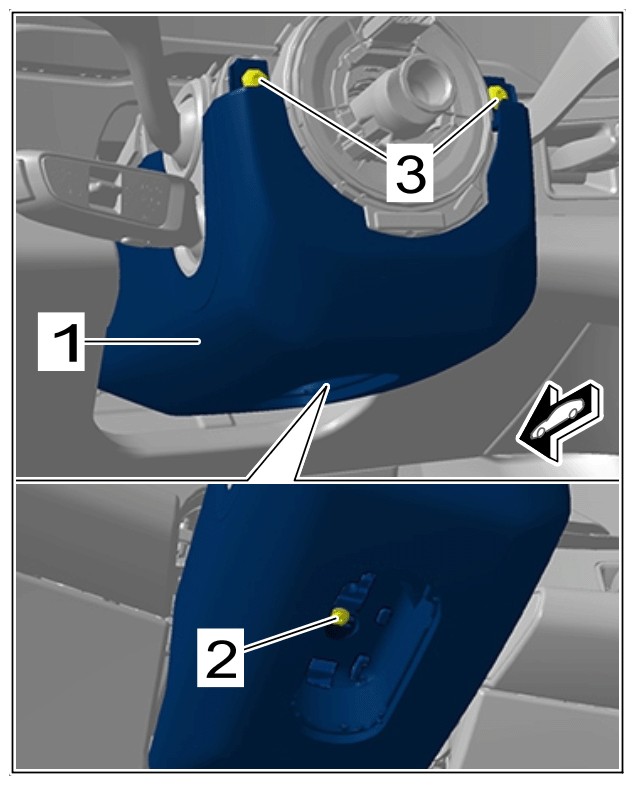

Lower part of steering column casing	Front screws/Item 3	Tightening torque	3 Nm (2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Lower part of steering column casing
Lower part of steering column casing	Bottom screw/Item 2	Tightening torque	1.5 Nm (1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Lower part of steering column casing

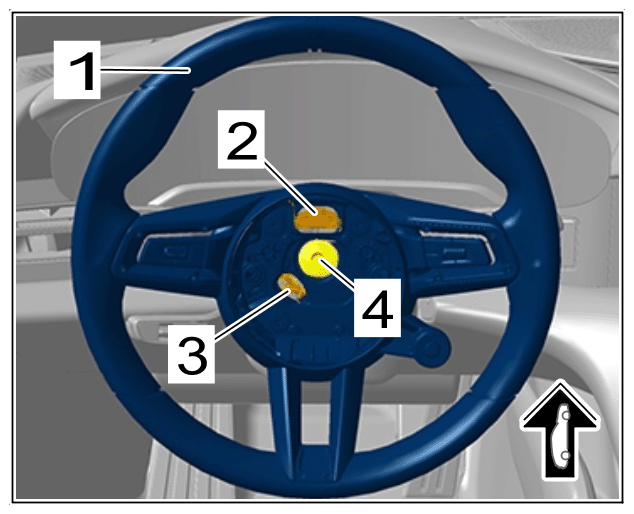

Steering wheel to steering column	Initial tightening/Screw/Item 4/Always replace screw following removal.	Tightening torque	30 Nm (22 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Steering wheel
Steering wheel to steering column	Final tightening/Screw/Item 4/Always replace screw following removal.	Torque angle	+ 90 °
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Steering wheel

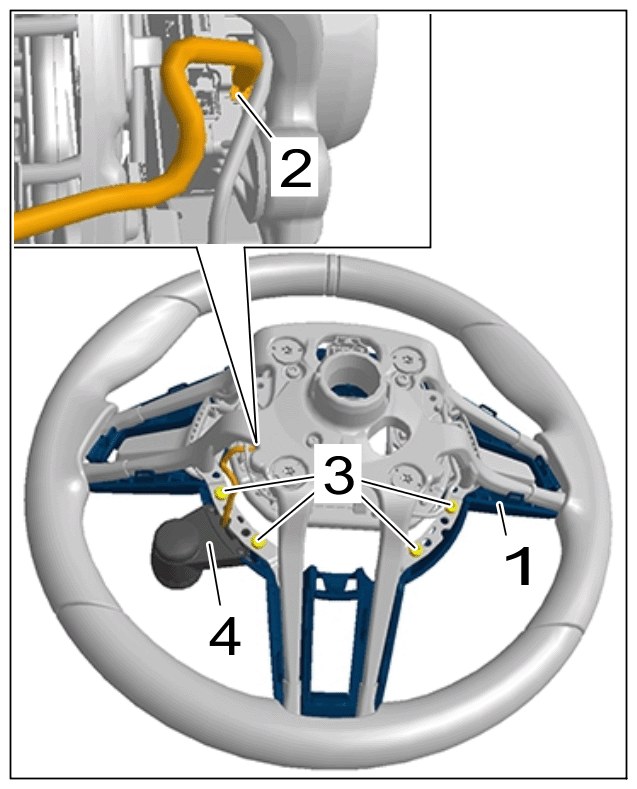

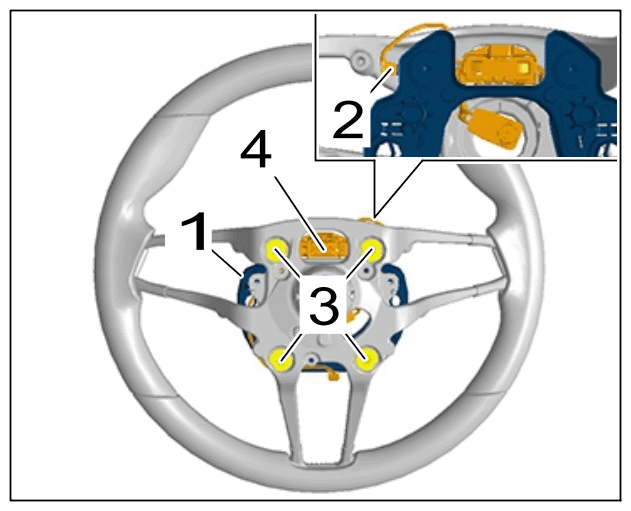

Contact bridge to steering wheel skeleton	Screws/Item 3	Tightening torque	3.5 Nm (2.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Contact bridge

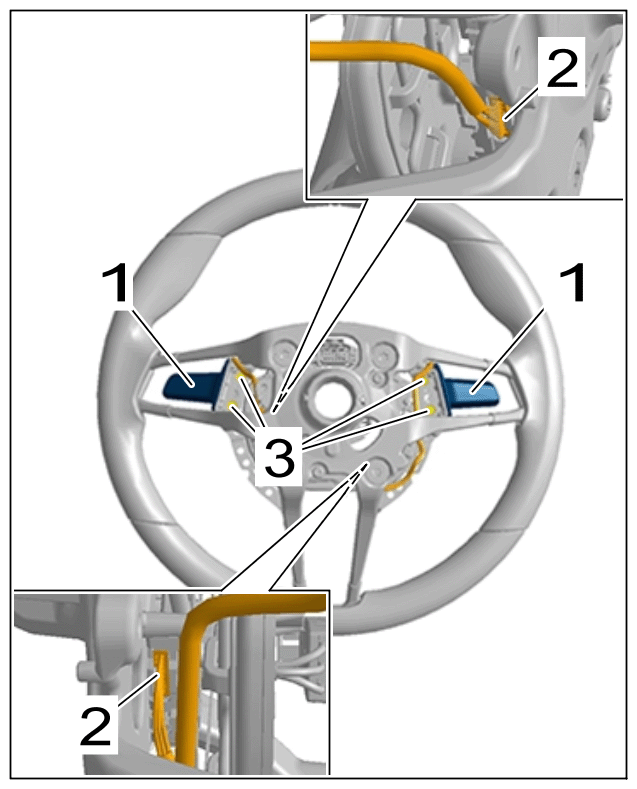

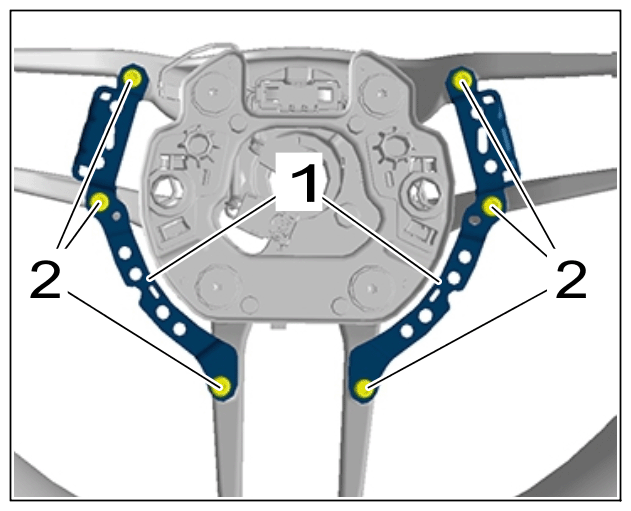

Bracket for multi-functional switch to steering wheel skeleton	Screws/Item 2	Tightening torque	3.5 Nm (2.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Bracket for multi-functional switch
Multi-functional switch to bracket for multi-functional switch	Screws/Item 3	Tightening torque	1.5 Nm (1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Multi-functional switch
Front steering wheel cover to bracket for multi-functional switch	Screws/Item 3	Tightening torque	1.5 Nm (1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front steering wheel cover

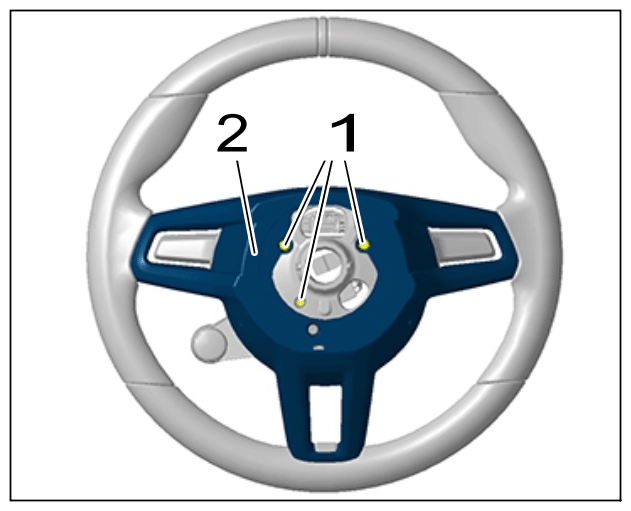

Rear steering wheel cover to steering wheel skeleton	Screws/Item 1	Tightening torque	2.8 Nm (2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear steering wheel cover

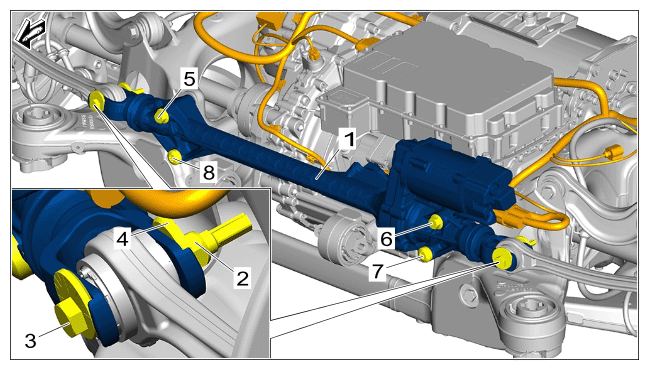

Cross member/servo motor for rear axle steering to rear axle housing	Initial tightening/Screws/Item 5 to 8/Observe tightening sequence Item 5 to 8./Always replace screws following removal.	Tightening torque	70 Nm (52 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Servo motor for rear axle steering
Cross member/servo motor for rear axle steering to rear axle housing	Final tightening/Screws/Item 5 to 8/Observe tightening sequence Item 5 to 8./Always replace screws following removal.	Torque angle	+ 90 °
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Servo motor for rear axle steering

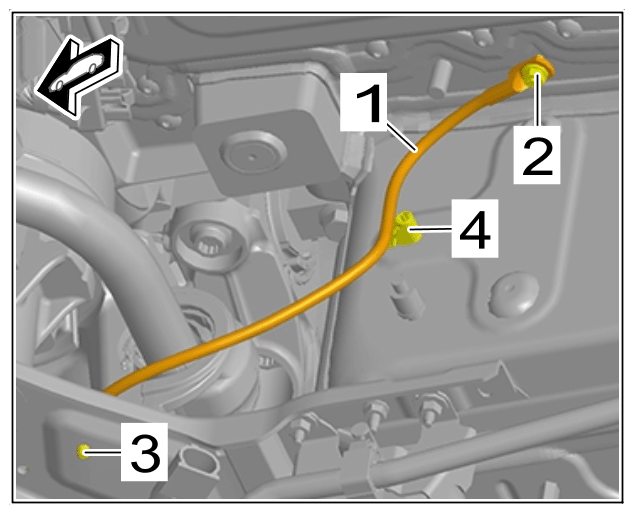

Nut securing ground line for rear axle steering to body	Item 2	Tightening torque	4.5 Nm (3.25 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Ground line

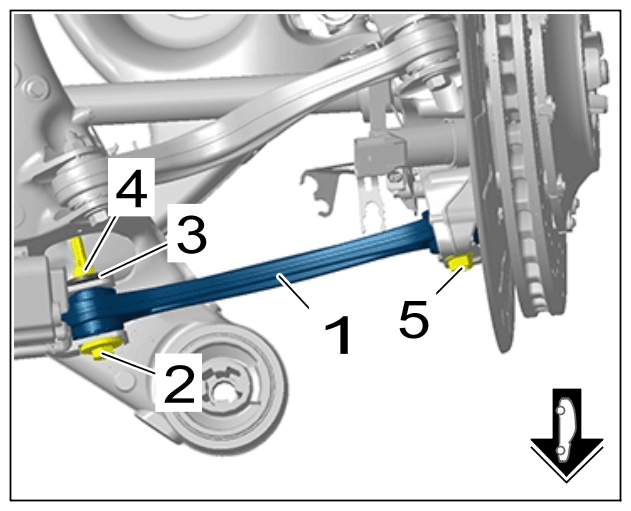

Tie rod to rear axle steering/cross member	Screw/Nut/Item 2 and 4/Always replace threaded connection following removal./Screw in zero position.	Tightening torque	100 Nm (74 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Tie rod

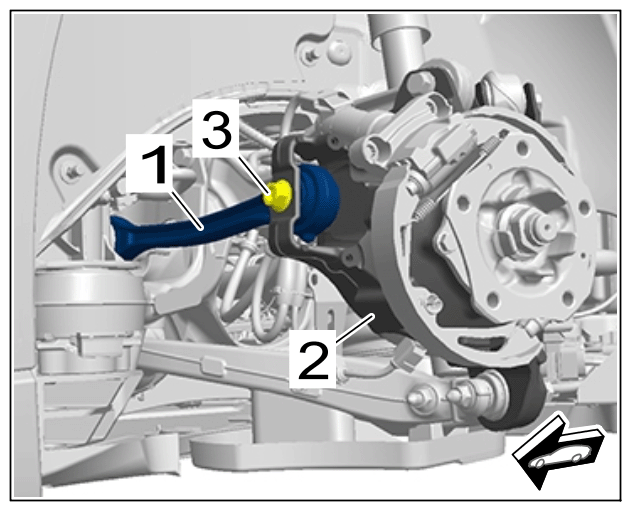

Tie rod to rear wheel bearing housing	Initial tightening/Screw/Item 3/Always replace screw following removal.	Tightening torque	70 Nm (52 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Tie rod
Tie rod to rear wheel bearing housing	Final tightening/Screw/Item 3/Always replace screw following removal.	Torque angle	+ 90 °
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Tie rod
