Power-Steering Gear

Location	Description	Type	Basic value
Power-steering gear to front-axle carrier	Initial tightening/Screws/Item 4/Always replace screws following removal.	Tightening torque	70 Nm (52 ftlb.)

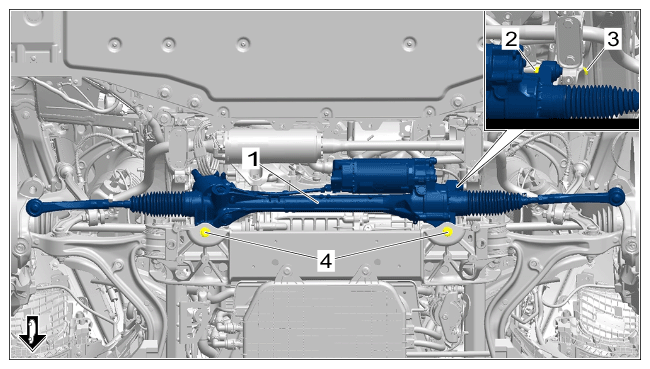

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Power-steering gear
Power-steering gear to front-axle carrier	Final tightening/Screws/Item 4/Always replace screws following removal.	Torque angle	+ 180 °
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Power-steering gear
Power-steering gear to front-axle carrier at the sides	Initial tightening/Screw/Nut/Item 2 and 3/Always replace threaded connection following removal.	Tightening torque	20 Nm (15 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Power-steering gear
Power-steering gear to front-axle carrier at the sides	Final tightening/Screw/Nut/Item 2 and 3/Always replace threaded connection following removal.	Torque angle	+ 180 °
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Power-steering gear
Steering shaft to power-steering gear	Initial tightening/Screw/Item 2/Always replace screw following removal.	Tightening torque	20 Nm (15 ftlb.)

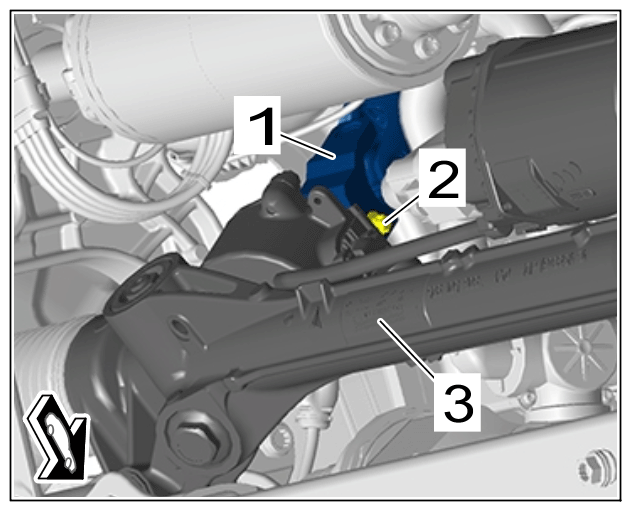

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Universal joint for steering column
Steering shaft to power-steering gear	Final tightening/Screw/Item 2/Always replace screw following removal.	Torque angle	90 °
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Universal joint for steering column
Tie-rod ball to tie rod	Nut/Item 3	Tightening torque	90 Nm (67 ftlb.)

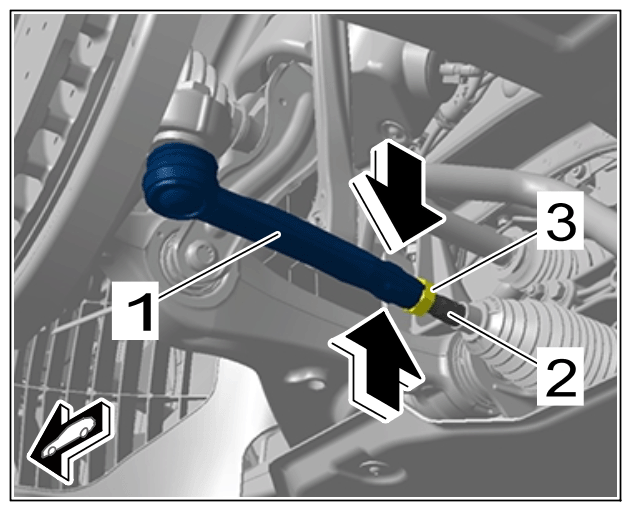

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Tie-rod ball on tie rod
