Technical Values

Location	Description	Type	Basic value

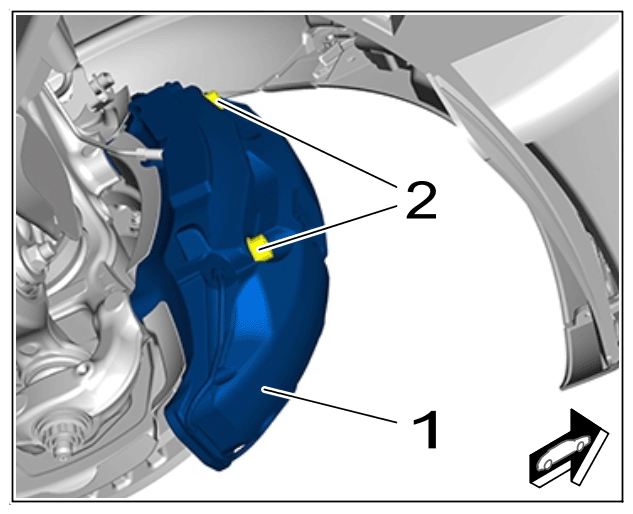

Screws for front brake calliper	Initial tightening, Item 2	Tightening torque	30 Nm (22 ftlb.)

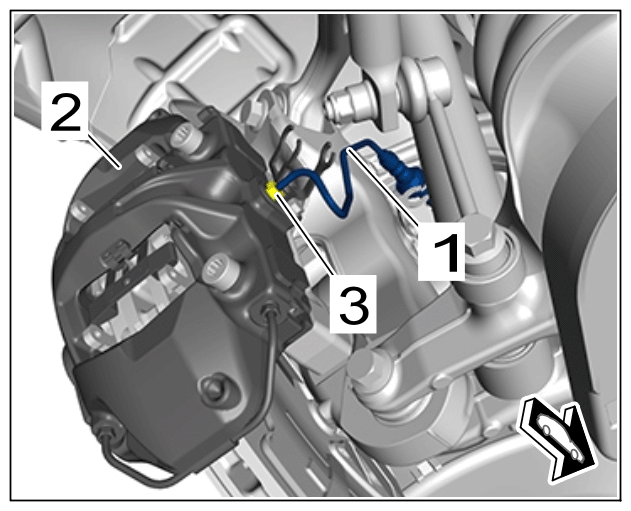

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front brake calliper
Screws for front brake calliper	Final tightening, Item 2	Torque angle	90 °
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front brake calliper
Bleeder screw on front brake calliper (grey cast-iron/PSCB)		Tightening torque	14 Nm (10.5 ftlb.)
Bleeder screw on front brake calliper (PCCB)		Tightening torque	20 Nm (15 ftlb.)

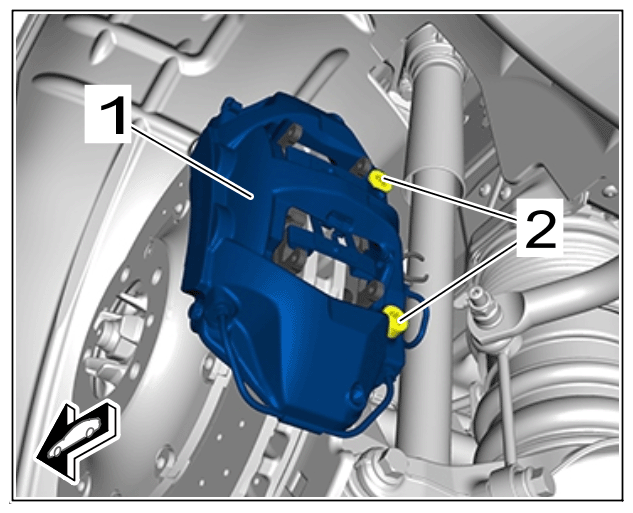

Screws for rear brake calliper	Initial tightening, Item 2	Tightening torque	30 Nm (22 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear brake calliper
Screws for rear brake calliper	Final tightening, Item 2	Torque angle	75 °
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear brake calliper
Bleeder screw on rear brake calliper (grey cast-iron/PSCB)		Tightening torque	14 Nm (10.5 ftlb.)
Bleeder screw on rear brake calliper (PCCB)		Tightening torque	20 Nm (15 ftlb.)

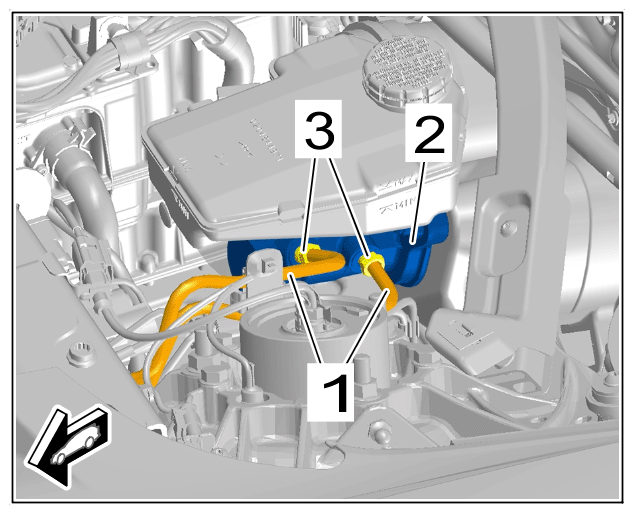

Brake lines to brake master cylinder	(Union nuts) Item 1	Tightening torque	18 Nm (13 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Brake lines

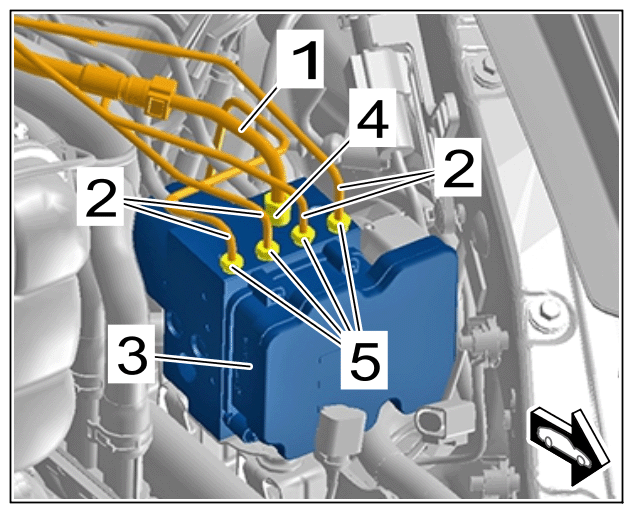

Brake line to hydraulic unit (top)	(Union nut) Item 4	Tightening torque	18 Nm (13 ftlb.)

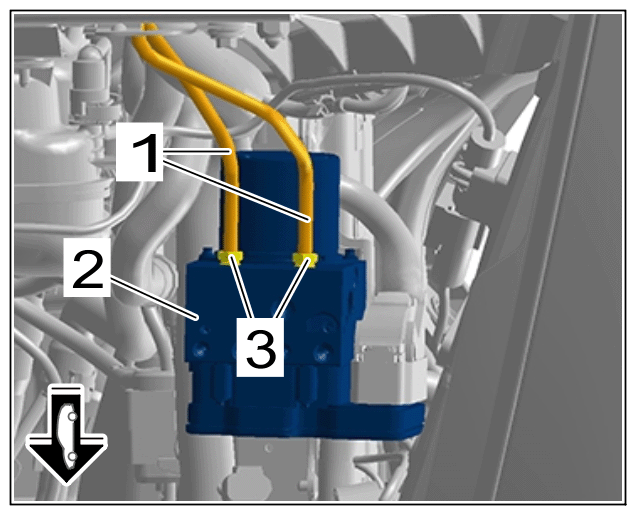

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Brake lines on hydraulic unit
Brake lines to hydraulic unit (top)	(Union nuts) Item 5	Tightening torque	14 Nm (10.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Brake lines on hydraulic unit
Brake lines to hydraulic unit (rear)	(Union nuts) Item 3	Tightening torque	18 Nm (13 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear brake lines

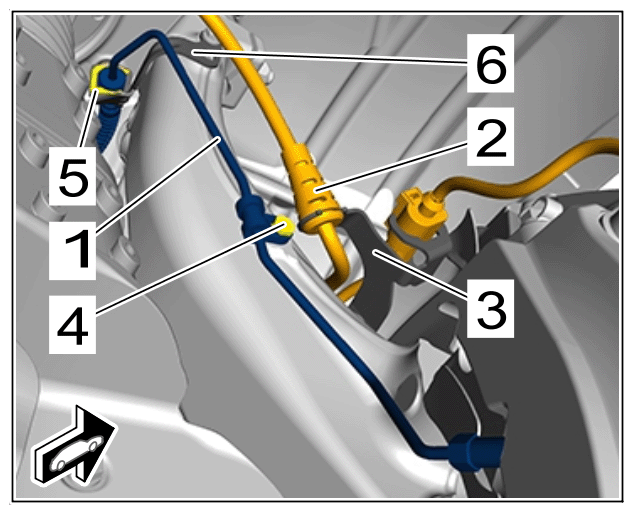

Brake line to brake calliper	(Union nuts) Item 3	Tightening torque	14 Nm (10.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Brake line on brake calliper
Screw for front brake line holder	Item 4	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front brake line

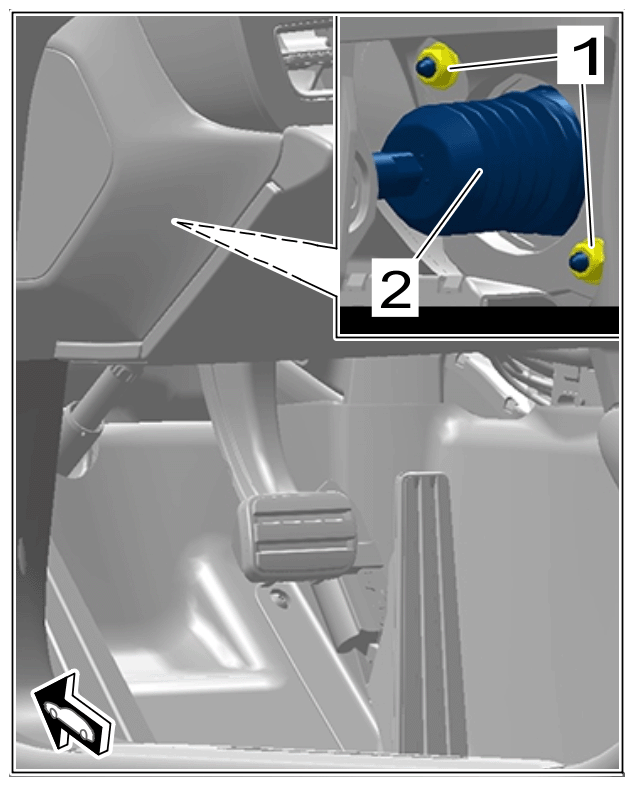

Nuts for brake booster	Item 1	Tightening torque	25 Nm (19 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nuts on brake booster
Nuts securing brake master cylinder to brake booster	Item 2	Tightening torque	20 Nm (15 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Brake master cylinder

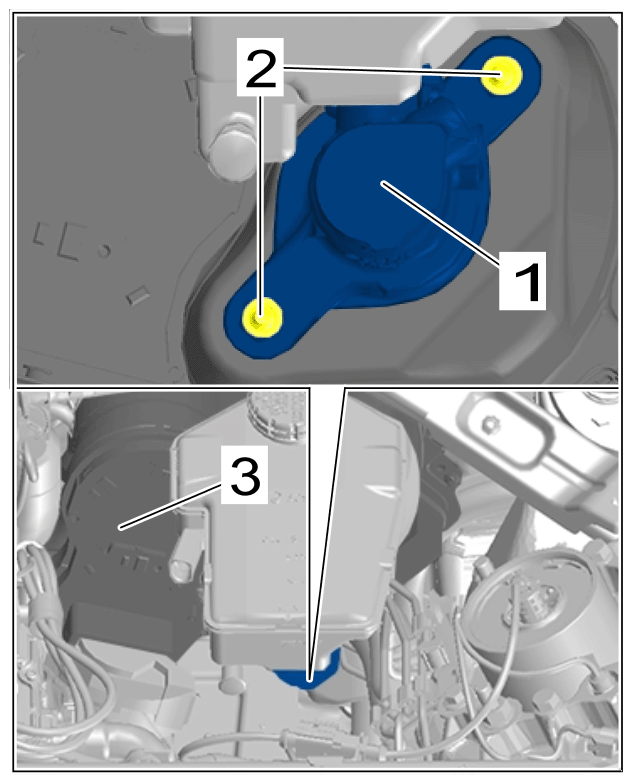

Screw securing brake fluid reservoir to brake master cylinder	Item 2	Tightening torque	7 Nm (5 ftlb.)

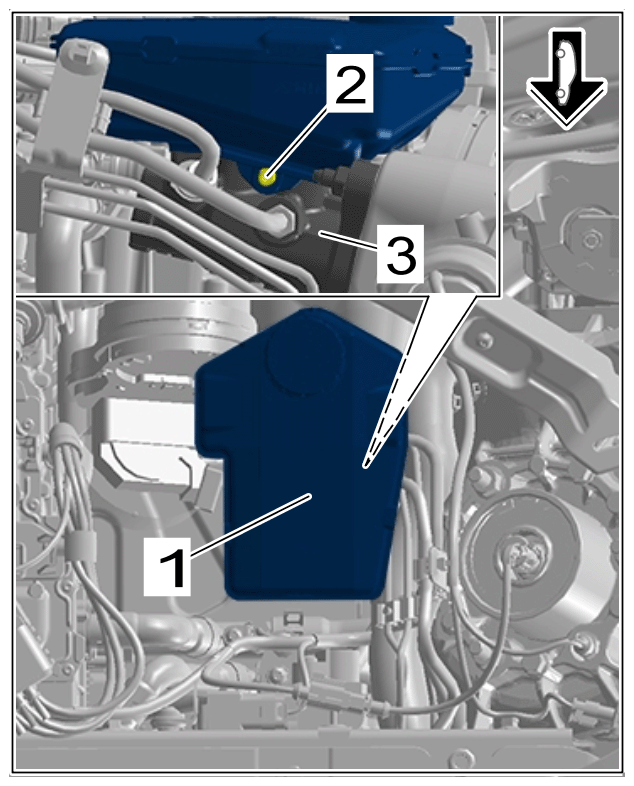

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Brake fluid reservoir

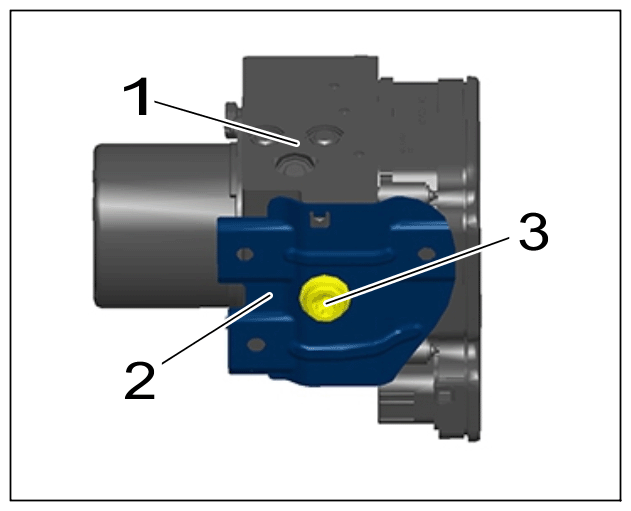

Screw for hydraulic unit holder	Item 3	Tightening torque	27 Nm (20 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Holder
