4X Chassis - General 2.0L -- Y1A - TAYCAN (Y1A)
>>
WM, 4X00IN Tightening Torques For Anti-Lock Brake System
>>
Technical Values
Technical Values
Location
Description
Type
Basic value
Tolerance 1
Tolerance 2
Screw for front speed sensor
Tightening torque
8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

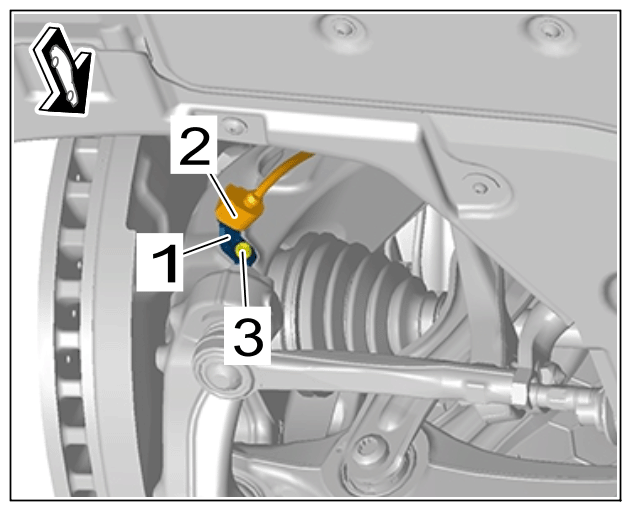

Front speed sensor
Screw for rear speed sensor
Tightening torque
8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

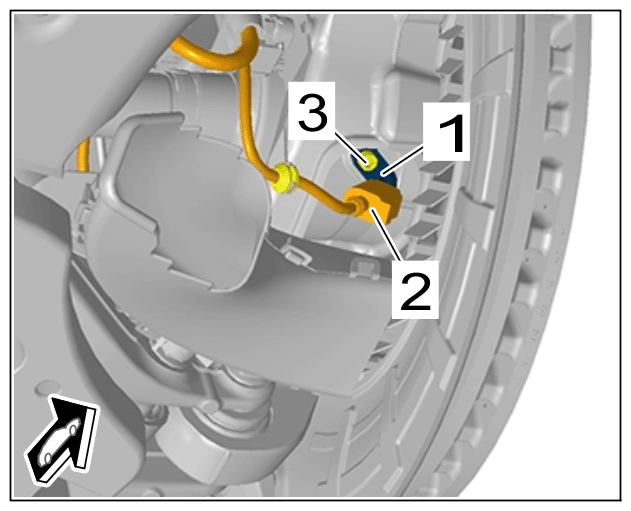

Rear speed sensor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
