Removing Motor For Seat Adjustment

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

clip

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

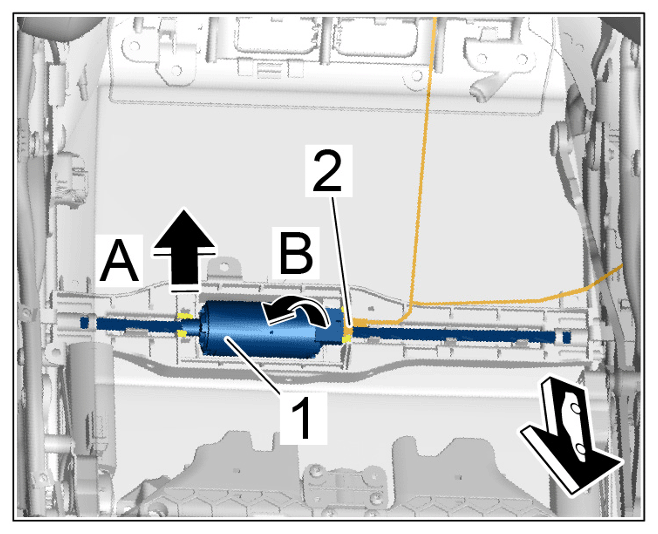

Motor for seat adjustment

1. 2.1 Unclip the seat adjustment motor -1-  in direction -Arrow A-  .
2. 2.2 Swivel the seat adjustment motor -1-  in direction -Arrow B-  .
3. 2.3 Release electric plug connection -2-  and disconnect it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Clips

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

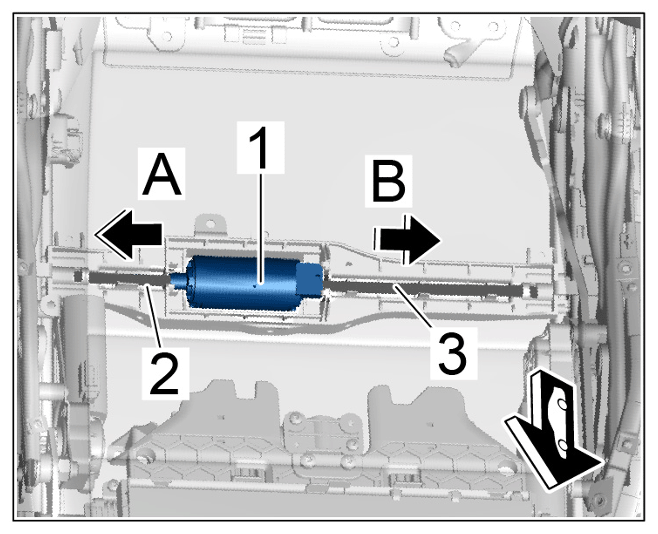

Motor for seat adjustment

Information

The drive shafts are tensioned slightly.

1. 4.1 Pull seat adjustment motor -1-  off the short drive shaft -2-Arrow B-  .
2. 4.2 Pull seat adjustment motor -1-  off the long drive shaft -3-Arrow A-  .
3. 4.3 Pull out the drive shafts -2-  and -3-  , check for damage and replace them if necessary.
