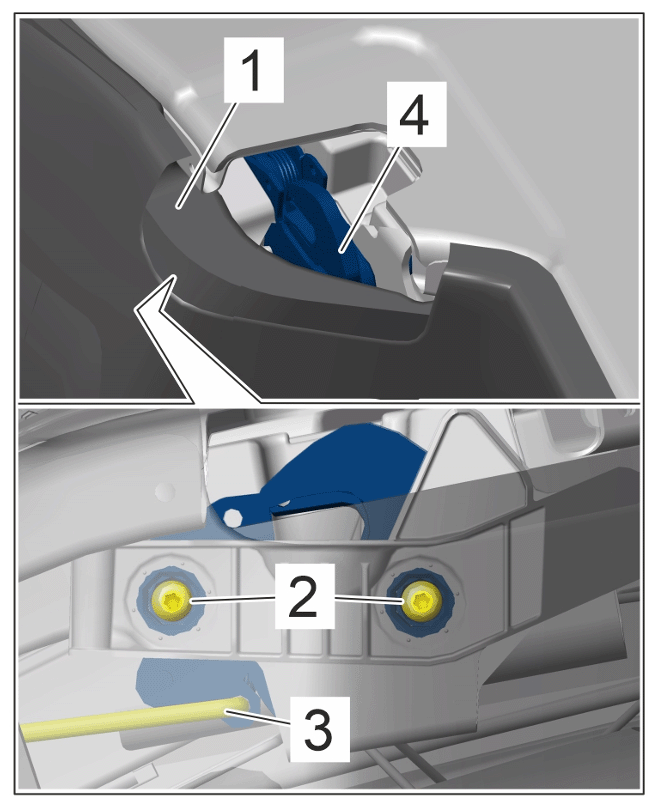

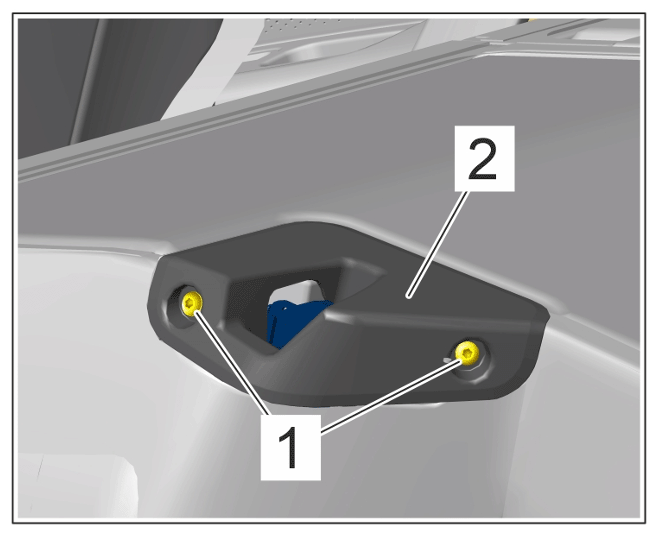

| Screws securing cover to rear-seat backrest |
Item 1 |
Tightening torque |
2.6 Nm (1.8 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Cover |
| Screws securing rear-seat backrest lock to rear-seat backrest |
Item 2 |
Tightening torque |
24 Nm (18 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screws |
