Removing Rear-Backrest Lock

  1. Fold rear backrest over.
  2. Unscrew screws -1-  and remove cover -2-  .

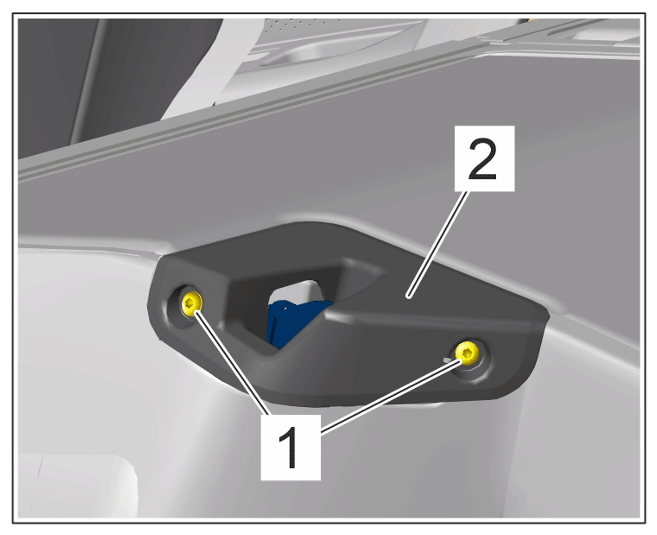

    G15565141Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cover

  3. Remove rear-backrest lock -4-  .

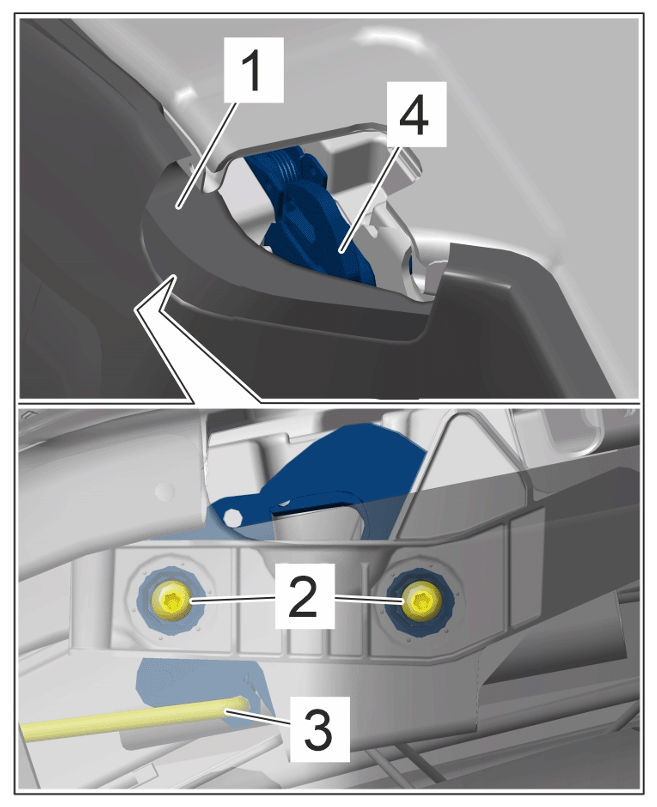

    G15565142Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws

    1. 3.1 Detach cover on rear backrest.
    2. 3.2 Press padding for rear backrest -1-  outwards.
    3. 3.3 Unscrew and remove screws -2-  .
    4. 3.4 Loosen connecting rod -3-  .
    5. 3.5 Pull out rear-seat backrest lock -4-  .
