Removing Rear Backrest Mount

  1. Remove rear backrest mount -4-  .

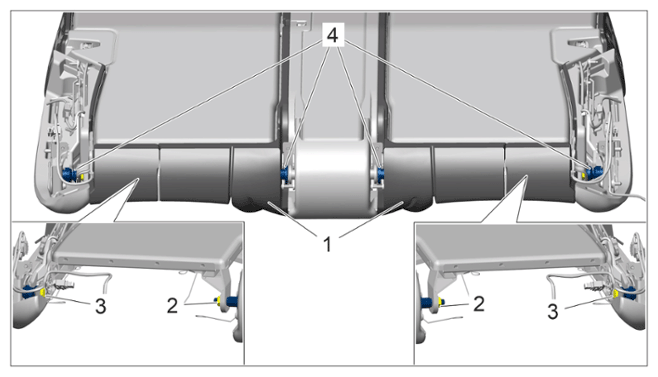

    G15565137Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear backrest mount

    1. 1.1 Detach cover for rear backrest -1-  in the lower area.
    2. 1.2 Unscrew nuts -2-  .
    3. 1.3 Unscrew screws -3-  .
    4. 1.4 Remove rear backrest mount -4-  .
