72 Seat Frames -- Y1A - TAYCAN (Y1A)
>>
WM, 726319 Removing And Installing Locking Mechanism For Rear Backrest
>>
Technical Values
Technical Values
Location
Description
Type
Basic value
Tolerance 1
Tolerance 2
Screw securing locking mechanism for rear backrest to holder
Item 1
Tightening torque
3.2 Nm (2.1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

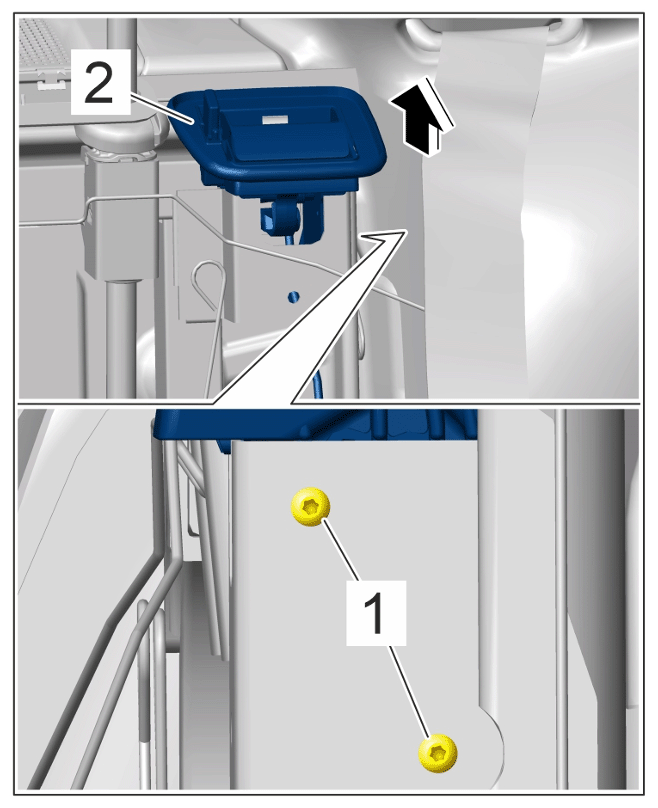

Locking mechanism for rear backrest
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
