72 Seat Frames -- Y1A - TAYCAN (Y1A)
>>
WM, 724919 Removing And Installing Side Cushion
>>
Technical Values
Technical Values
Location
Description
Type
Basic value
Tolerance 1
Tolerance 2

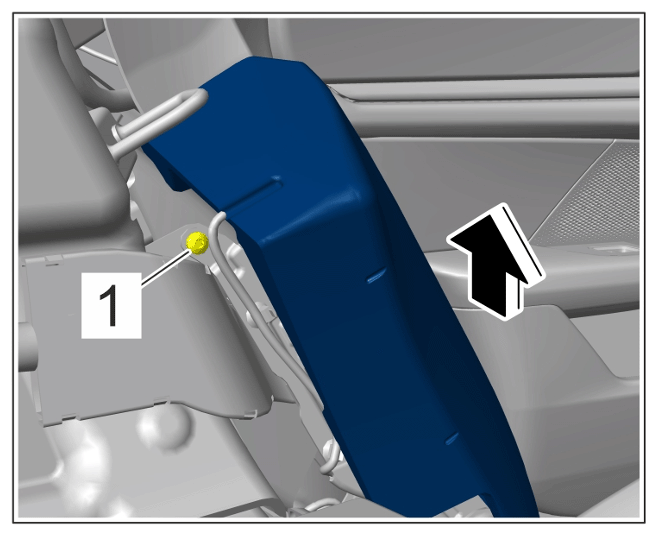

Screw securing side cushion to body
Item 1
Tightening torque
10 Nm (7.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
