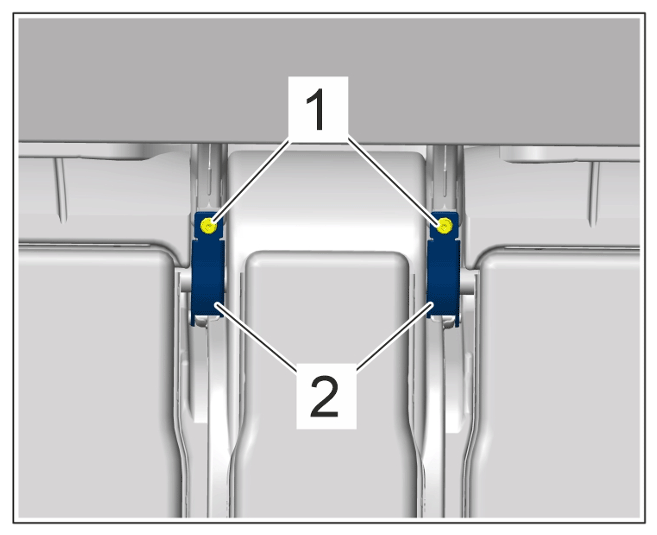

| Screws securing centre bearing lock bar to rear backrest |
Item 1 |
Tightening torque |
10 Nm (7.5 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screws |

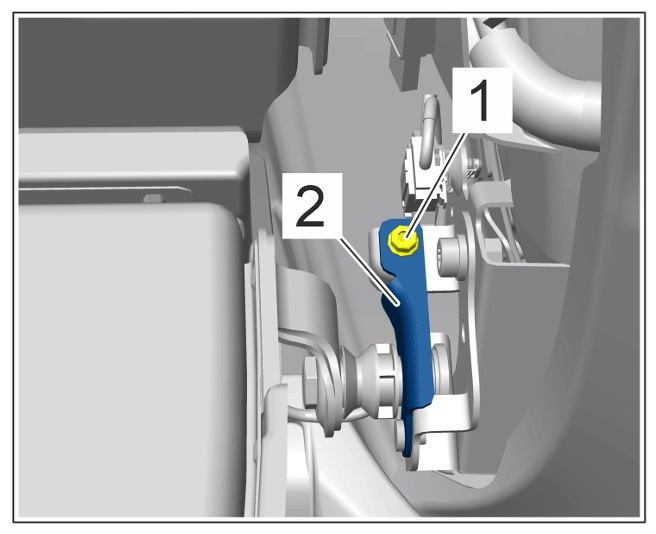

| Screw securing side bearing catch bar to rear backrest |
Item 1 |
Tightening torque |
10 Nm (7.5 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw on side bearing catch bar |
