Removing Rear Backrest

  1. Fold rear backrest over.
  2. Unscrew screws on centre bearing catch bar -1-  and fold up centre bearing -2-  .
    G15565118Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws on centre bearing catch bar

  3. Unscrew screw on side bearing catch bar -1-  and fold up side bearing -2-  .

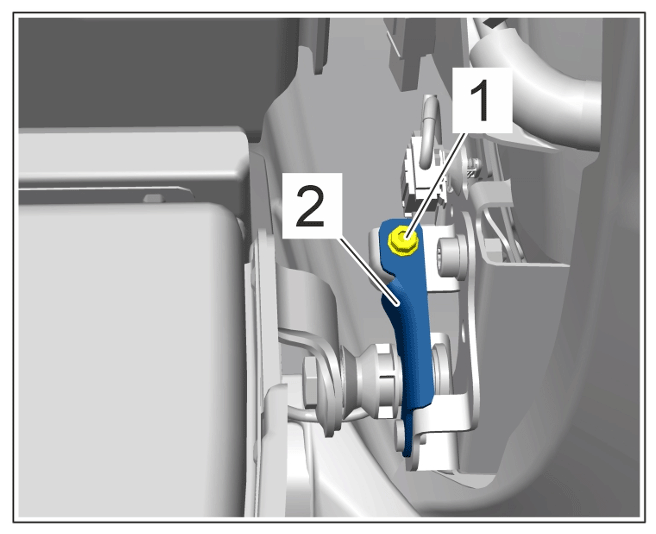

    G15565119Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screw on side bearing catch bar

  4. Remove rear backrest.
