Removing Backrest Cover

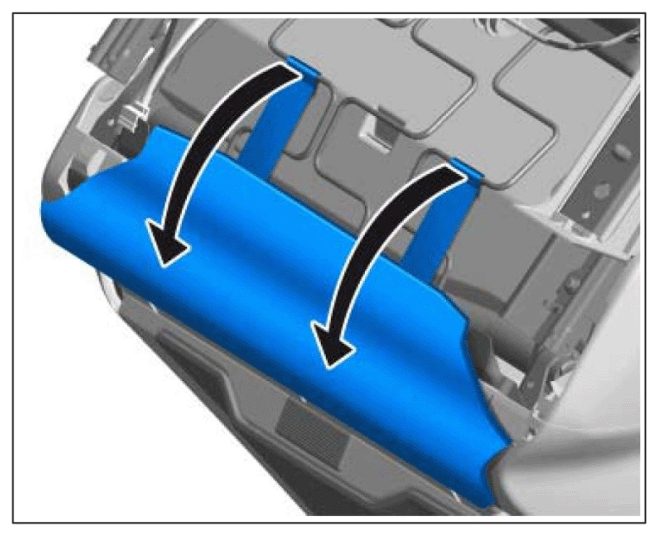

  1. Detach covering on backrest cover at the underside of the front seat -Arrows-  .
    G15565102Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Restraining straps

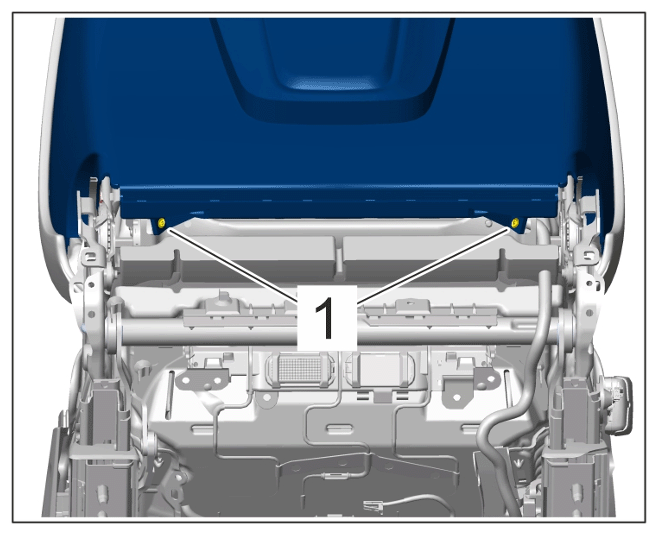

  2. Unscrew screws -1-  .
    G15565103Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws

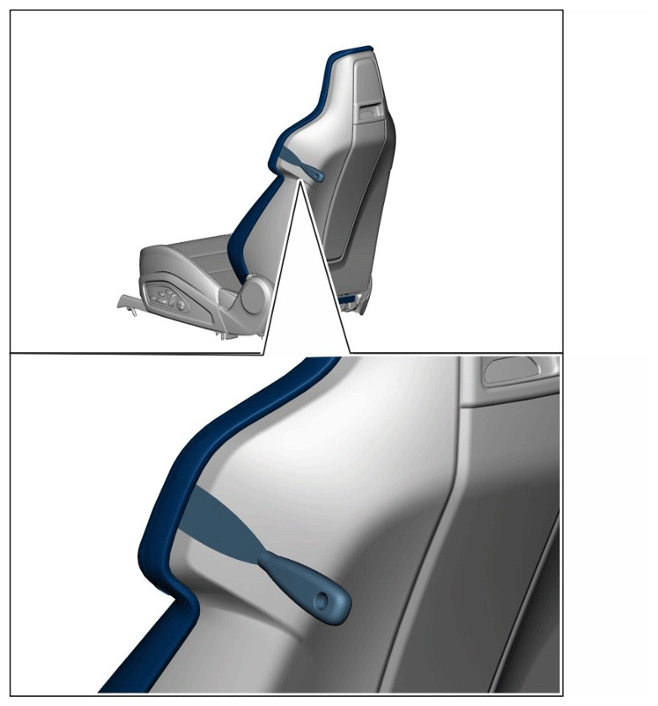

  3. Detach seat backrest cover all the way around using a suitable tool and remove backrest cover.
    G15565104Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Backrest cover

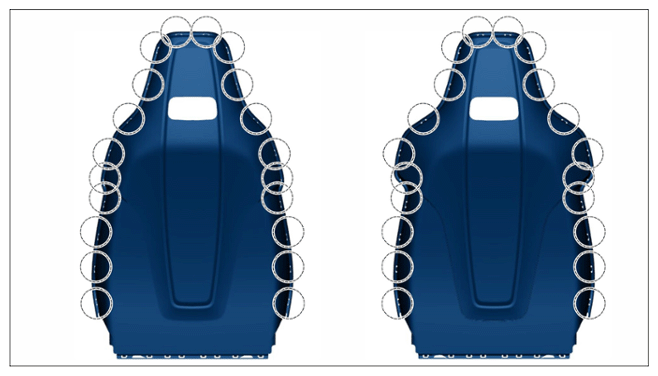

    G15565105Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Position of locking hook

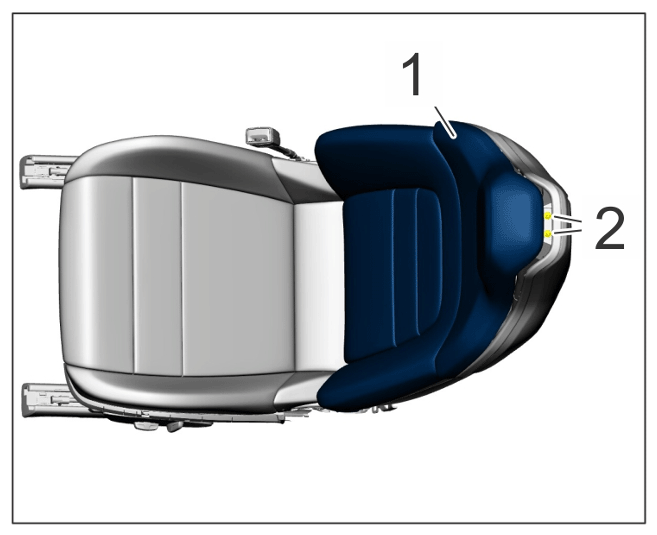

  4. Pull seat cushion -1-  forward slightly and unscrew screws -2-  .
    G15565106Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws for backrest cover

    Only sports seat

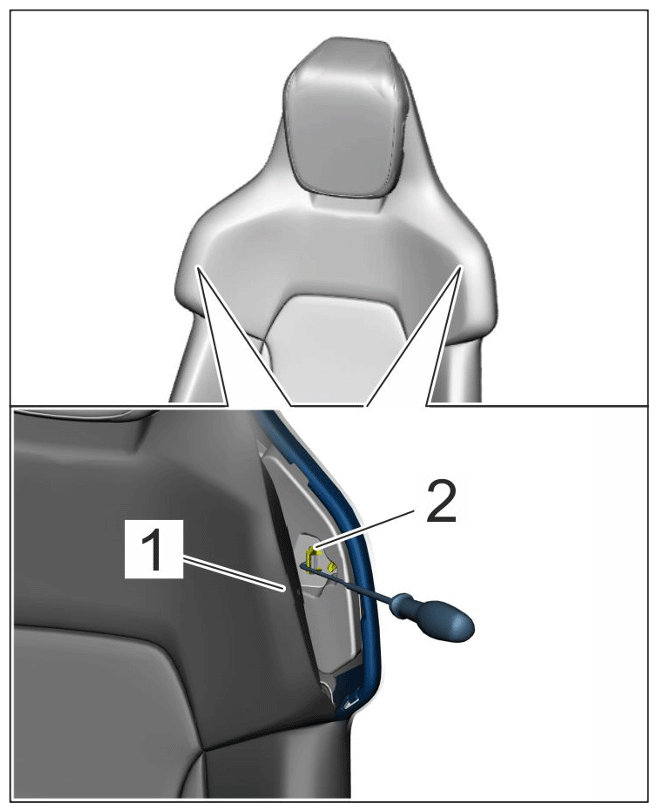

  5. Pull seat cushion -1-  forward slightly and release locking hook -2-  > T10389 - Assembly tool  .
    G15565107Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Retaining latch

  6. Remove backrest cover.
