Removing Air Cushion For Backrest

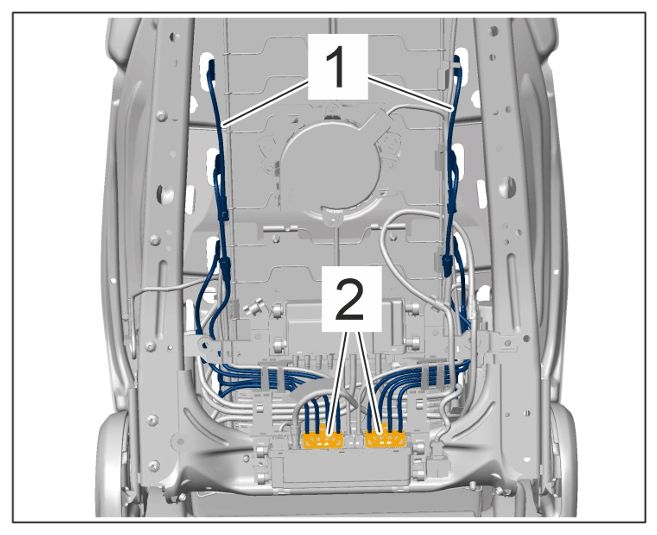

  1. Guide out air hoses -1-  with pneumatic couplings -2-  .
    G15565090Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Air cushion for backrest

  2. Remove air cushion for backrest.
