Removing Front Seat Trim Panel (Inner)

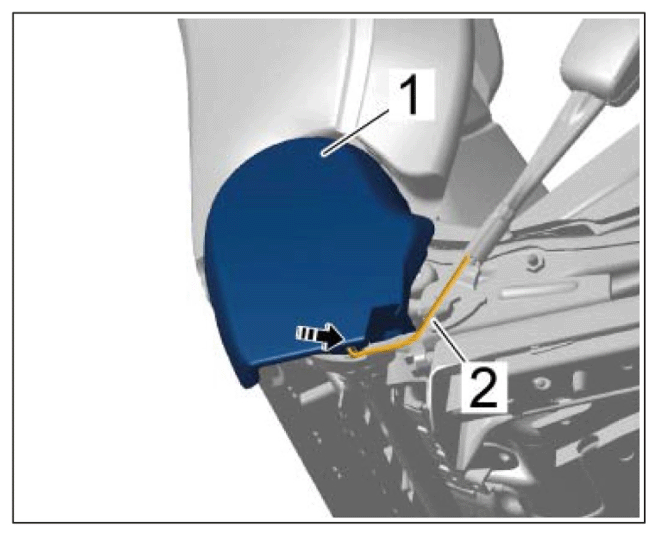

  1. Disengage electric line for seat-belt buckle -2-  from the front seat trim panel (inner) -1-  (-arrow-  ).
    G15565082Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric line

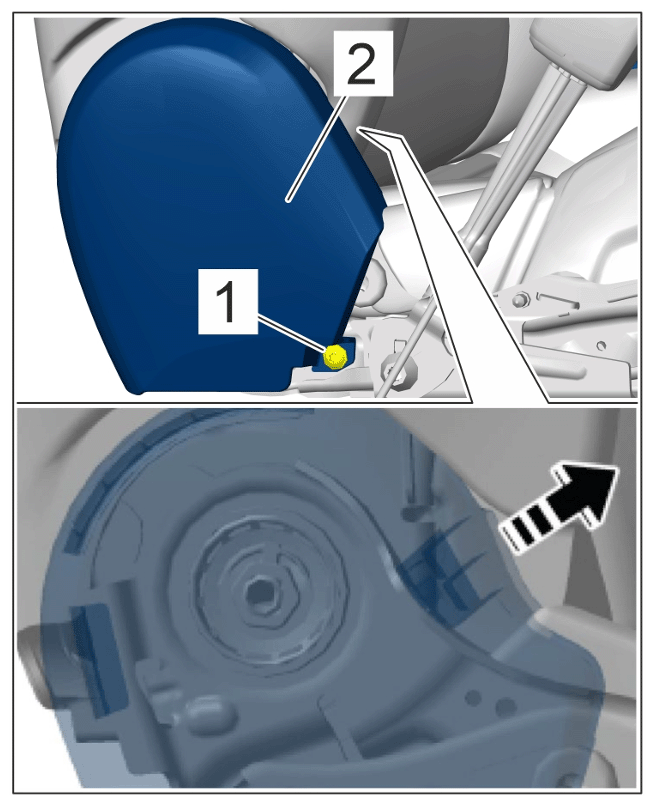

  2. Unscrew screw -1-  and detach trim panel for front seat (inner) -2-  (-arrow-  ).
    G15565083Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screw
