72 Seat Frames -- Y1A - TAYCAN (Y1A)
>>
WM, 720919 Removing And Installing Front Seat Frame
>>
Technical Values
Technical Values
Location
Description
Type
Basic value
Tolerance 1
Tolerance 2

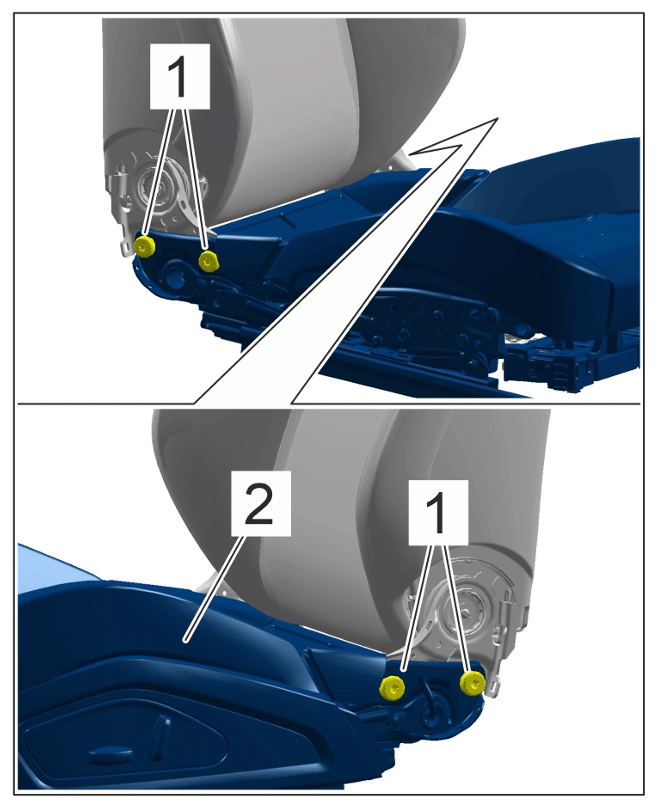

Screws securing seat frame
Replace Item 1 self-locking screws!
Torque torque
44 Nm (33 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screws
