Removing Front Seat Frame

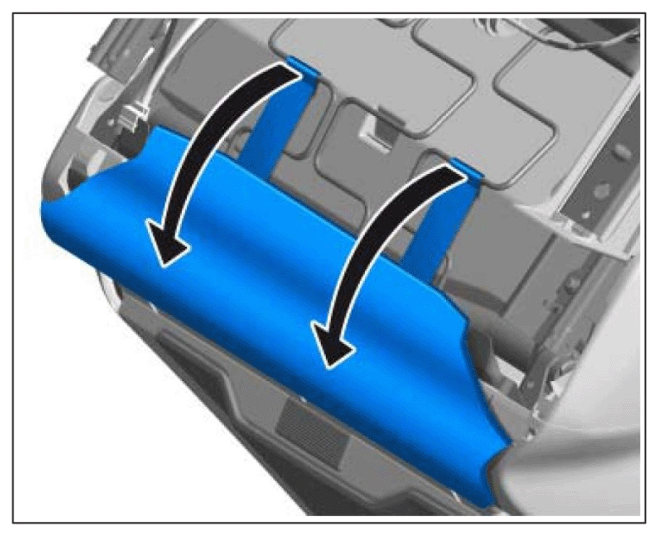

1. Disengage restraining straps on the underside of the front seat -Arrows-  and fold over seat cover on backrest.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Restraining straps

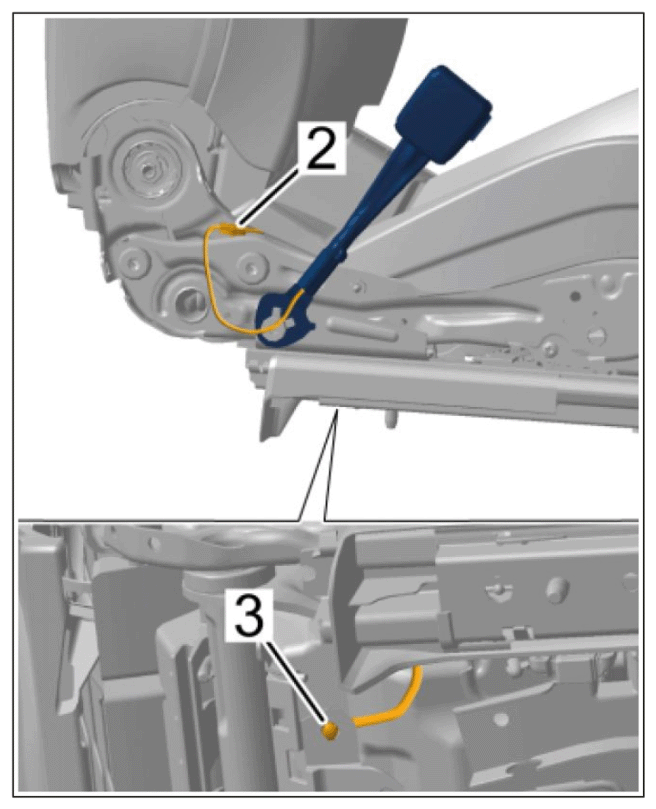

2. Unclip line bracket on seat-belt buckle at the side -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Line bracket

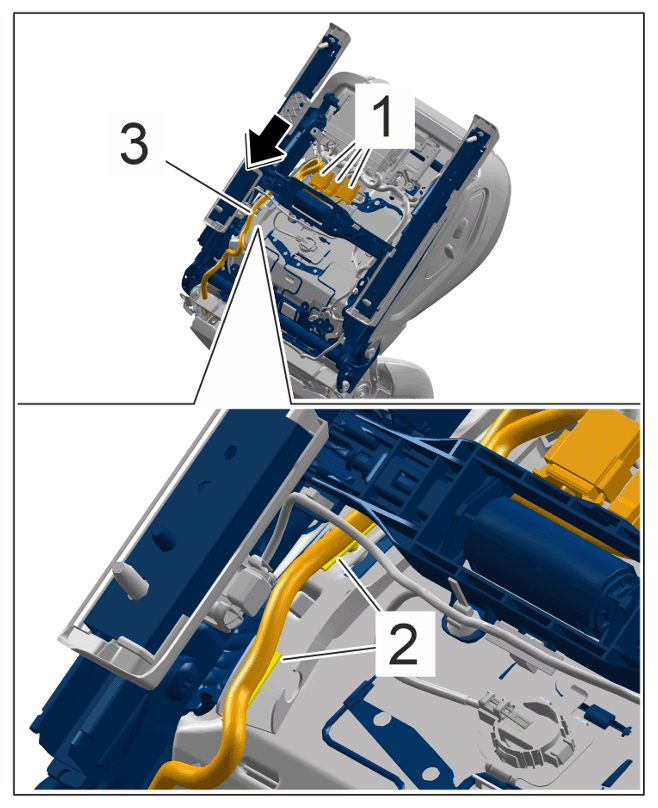

3. Remove electric line -3-  .
   1. 3.1 Release and disconnect electric plug connections -1-  .
   2. 3.2 Unclip line bracket -2-  .
   3. 3.3 Guide out electric line -3-  (-Arrow-  ).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connections

   Information

   The help of another person is required.

   Information

   Always replace self-locking screws.

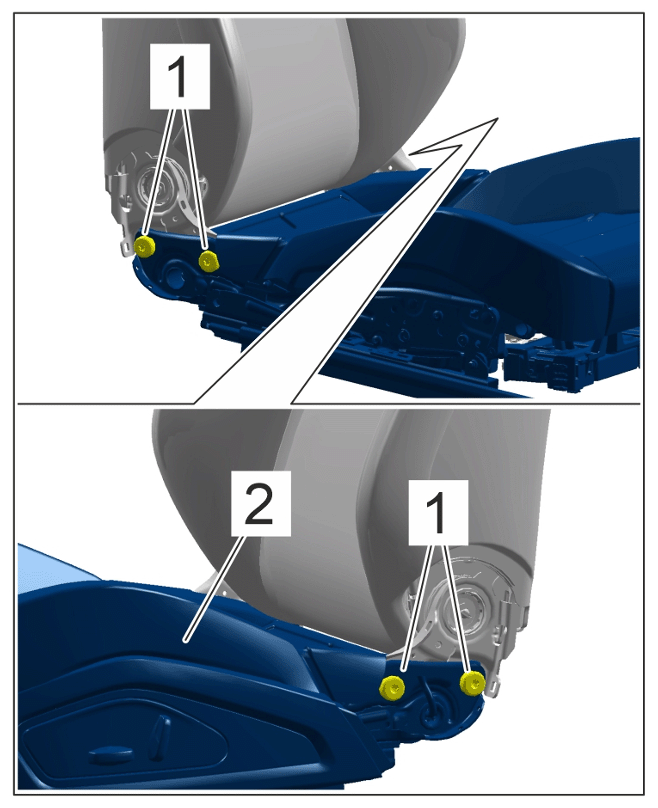

4. Unscrew screws -1-  and remove front seat frame -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
