68 Interior Equipment -- Y1A - TAYCAN (Y1A)
>>
WM, 683719 Removing And Installing Rear Handle
>>
Removing Rear Handle
Removing Rear Handle

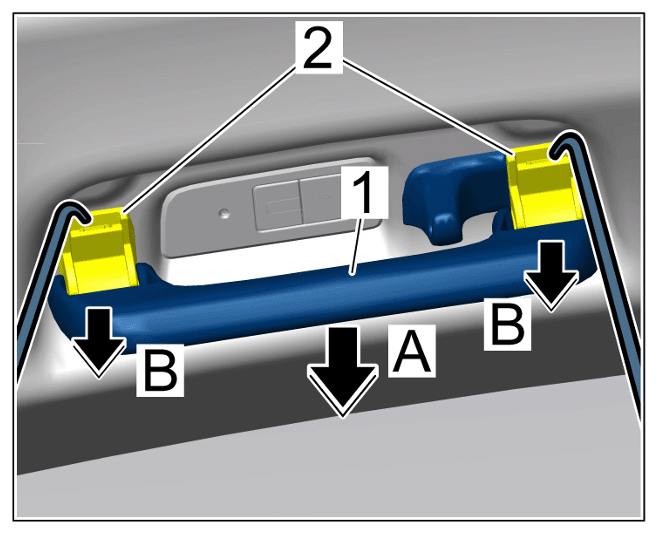

Remove rear grab handle
-1-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Rear grab handle
1.1 Swivel rear handle
-1-
down
-arrow A-
and hold it at this position.
1.2 Guide in tool >
3438 - Hook
behind the lock
-2-
and unclip it in a downward direction
-arrows B-
.
1.3 Remove rear handle
-1-
.
