Removing Front Handle

  1. Remove front handle -1-  .

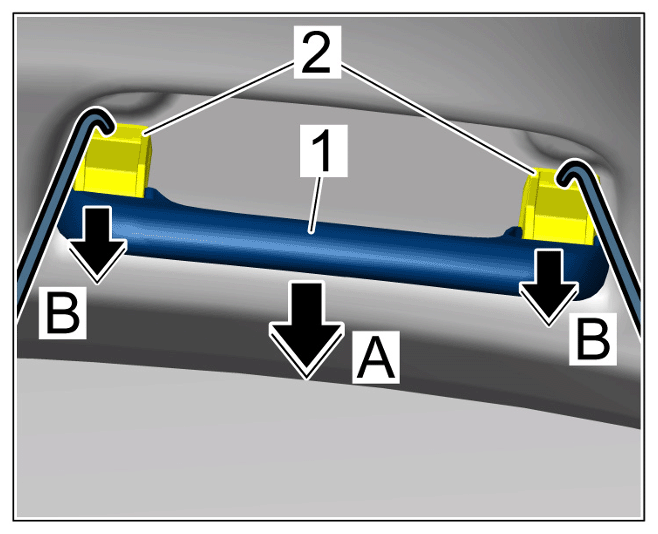

G15564547Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front handle

  1. 1.1 Swivel front handle -1-  down -arrow A-  and hold it at this position.
  2. 1.2 Guide in tool > 3438 - Hook  behind the lock -2-  and unclip it in a downward direction -arrows B-  .
  3. 1.3 Remove front handle -1-  .
