Removing Front CUPHOLDER

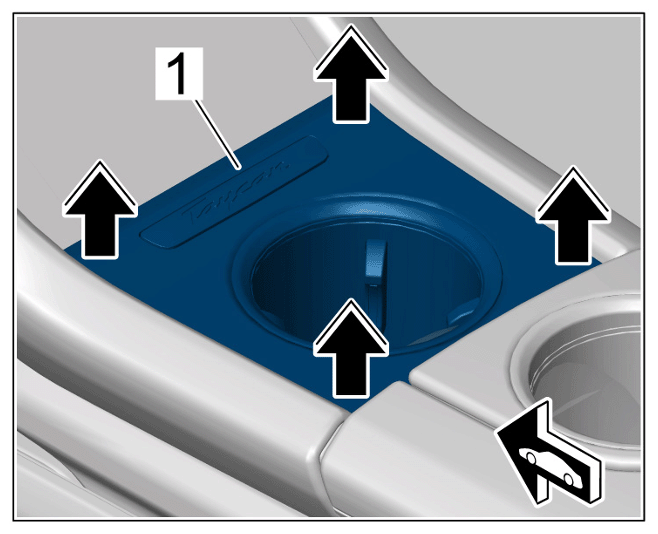

  1. Unclip the front cupholder -1-  by pushing it up using a plastic wedge -Arrows-  .
    G15564539Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front cupholder

  2. Release and disconnect electric plug connections -1-  from front cupholder -2-  .
    G15564540Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connections

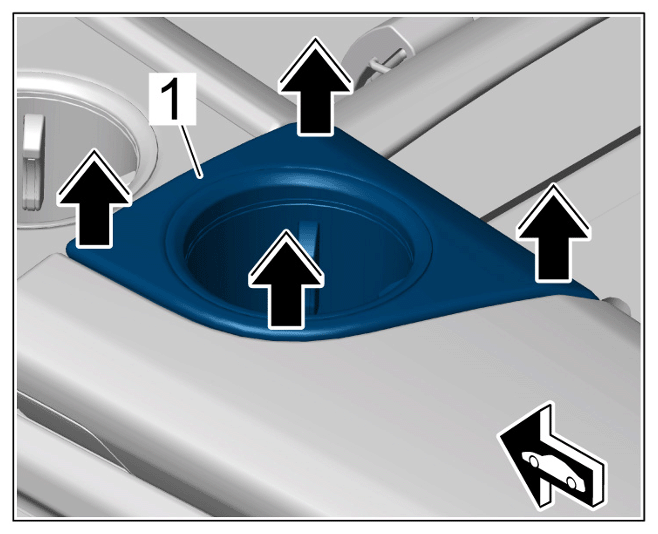

  3. Unclip the front cupholder -1-  by pushing it up using a plastic wedge -Arrows-  .
    G15564541Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front cupholder

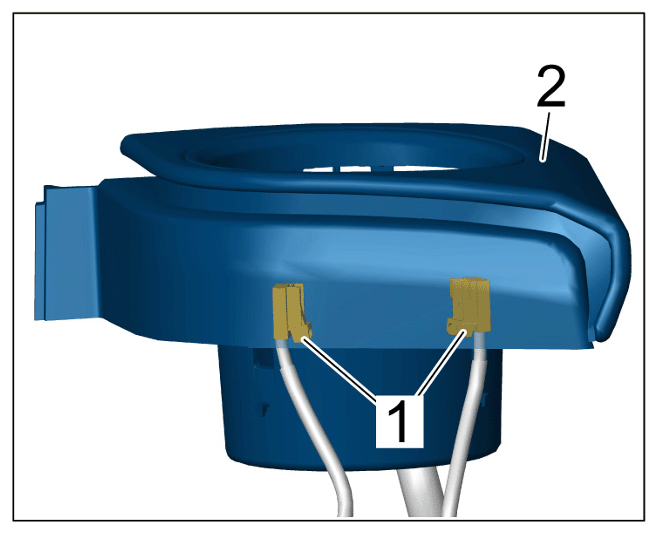

  4. Release and disconnect electric plug connections -1-  from front cupholder -2-  .
    G15564542Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection

  5. Remove the front cupholders.
