Removing Rear Centre Console (USB Charging Socket)

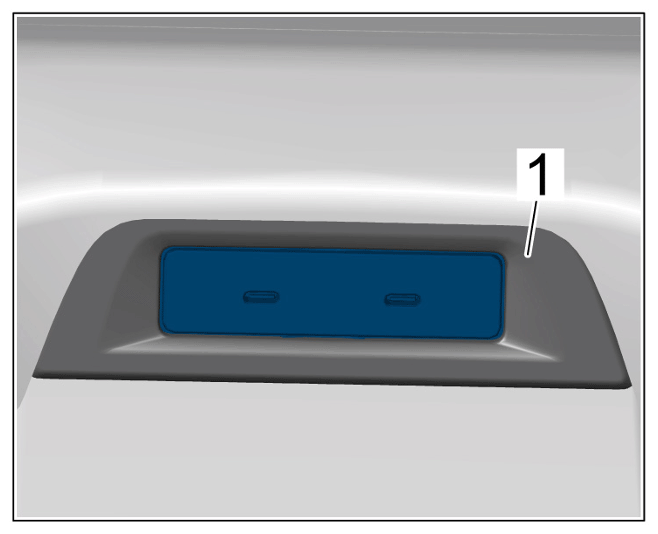

1. Unclip trim panel -1-  and pull it out until the electric plug connection is accessible.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Trim panel

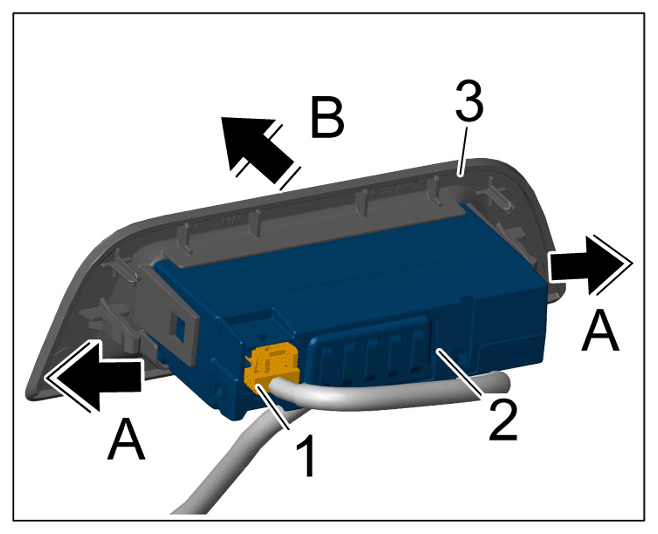

2. Remove rear center console (USB charging socket) -2-  .
   1. 2.1 Release and unplug electric plug connection -1-  .
   2. 2.2 Release rear center console (USB charging socket) -2-  (-arrows A-  ).
   3. 2.3 Pull rear center console (USB charging socket) -2-  out of the trim panel -3-  (-arrow B-  ).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection
