68 Interior Equipment -- Y1A - TAYCAN (Y1A)
>>
WM, 681919 Removing And Installing Cover
>>
Technical Values
Technical Values
Location
Description
Type
Basic value
Tolerance 1
Tolerance 2

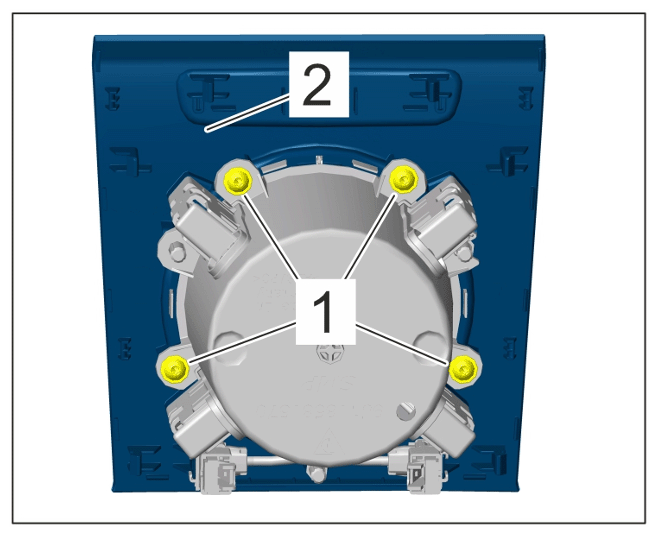

Screw securing cupholder to cover
Item 1
Tightening torque
1.8 Nm (1.3 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
