Removing Glove Box

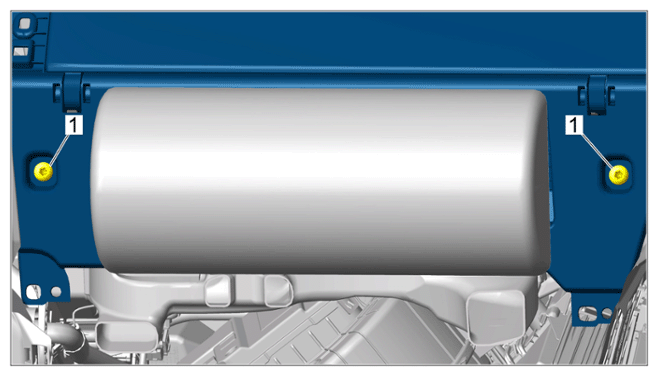

Unscrew screws at the bottom -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bottom screws

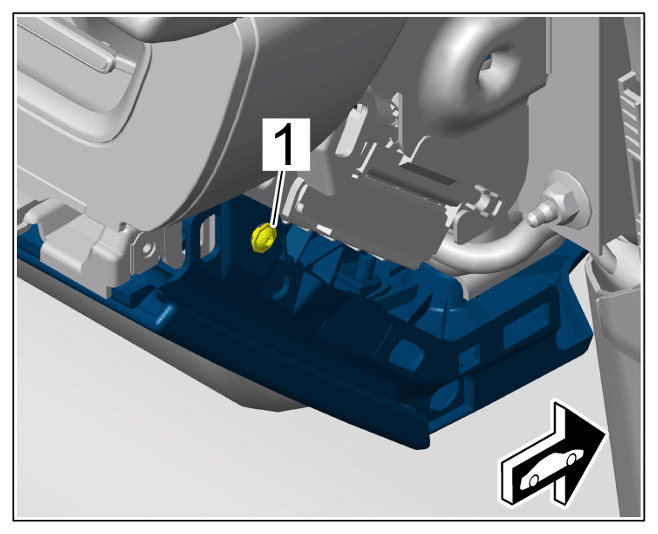

Unscrew screw at the sides -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Side screw

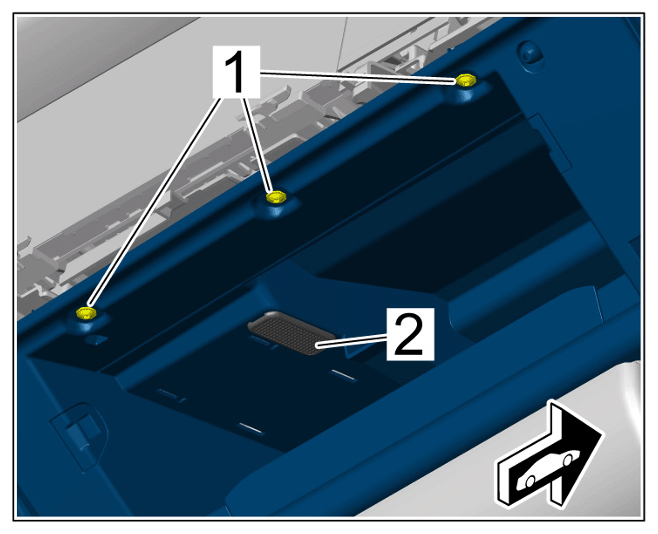

Unscrew screws at the top -1- and remove glove compartment light -2- .
> 964419 REMOVING AND INSTALLING GLOVE COMPARTMENT LIGHT

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Top screws
Lower the glove compartment until the wiring harness is accessible.

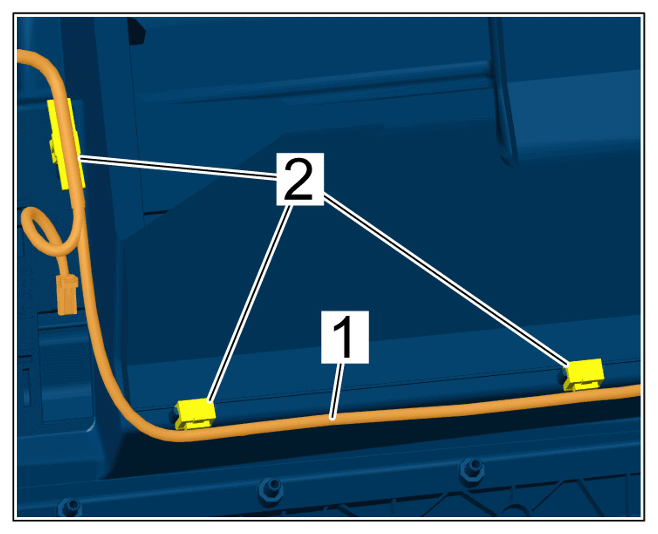

Loosen wiring harness -1- from clips -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Clips
WARNING:
Improper handling of airbag units
- Triggering of airbag unit.
- System faults can occur.
  → Remove ignition key or remote control (hand-held transmitter) and keep it outside of the transmission range.

  → External power supply must be de-energized.

  → Disconnect the battery and isolate the ground strap so that all contact with a ground carrier is avoided.

  → Wait 1 minute after disconnecting the battery.

  → Only pull off connector on the triggering unit after the waiting time has elapsed.

  → Keep space in front of the airbag unit free.

  → Replace damaged parts.

  → Always set airbag units down with the blow-out opening facing upwards.

  → Do not place any objects on the airbag units.

  → Store airbag units in a safe place.

  → Avoid contact with grease, oil, detergents, liquids or similar substances.

  → Store airbag units in a cool place. Maximum temperature: 90 °C.
NOTE:
Voltage peaks
- Risk of damage to electrical load or to the control unit
  → Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).

  → Switch off electrical loads before disconnecting or removing them.

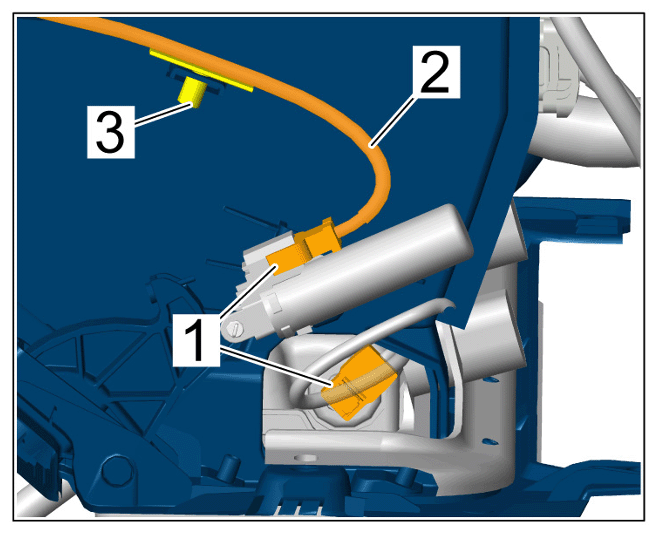

Release and disconnect electric plug connections -1- and loosen wiring harness -2- from clip -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connections
Remove glove compartment.
