Removing Centre Console Trim (Rear) At The Top

  1. Move the seat forward.
  2. Unclip center console trim (rear) at the top -1-  by moving it forward from behind -arrow-  .

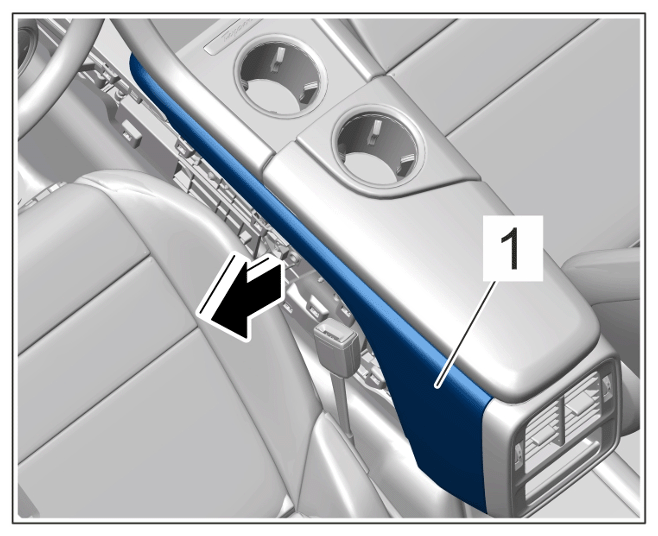

G15564476Courtesy of PORSCHE CARS NORTH AMERICA, INC.

(Rear) center console trim, top
