Removing Centre Console Trim (Rear)

Information

Clips must be levered off carefully. The risk of damage to the rear air vent is very high.

1. Unclip the rear air vent -1-  from the center console panel (rear) -2-  using a suitable tool and pull it out -Arrow-  until the electric plug connection is accessible.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

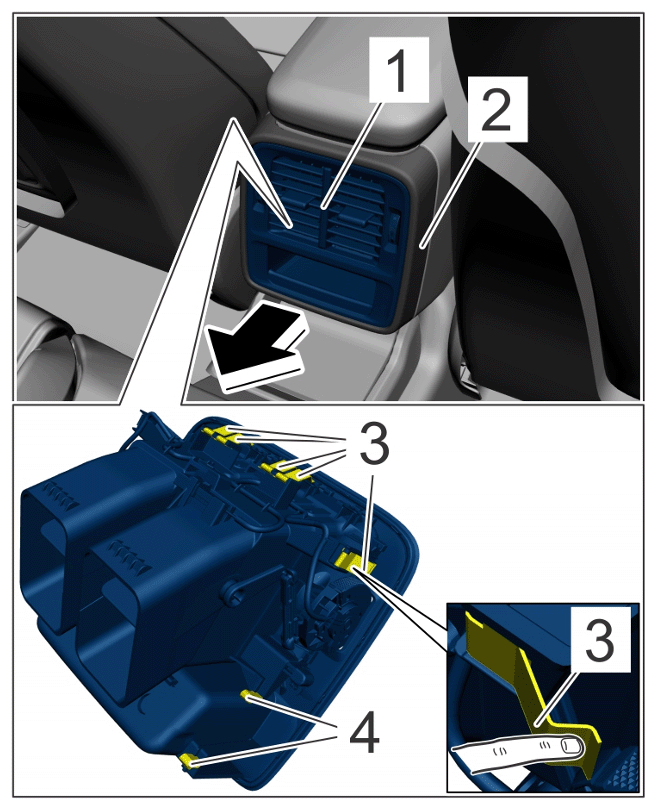

   Rear air vent

   1. 1.1 Removing metal clips -3-  .
   2. 1.2 Unclip locking lugs -4-  .
2. Release electric plug connection -1-  and disconnect it.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

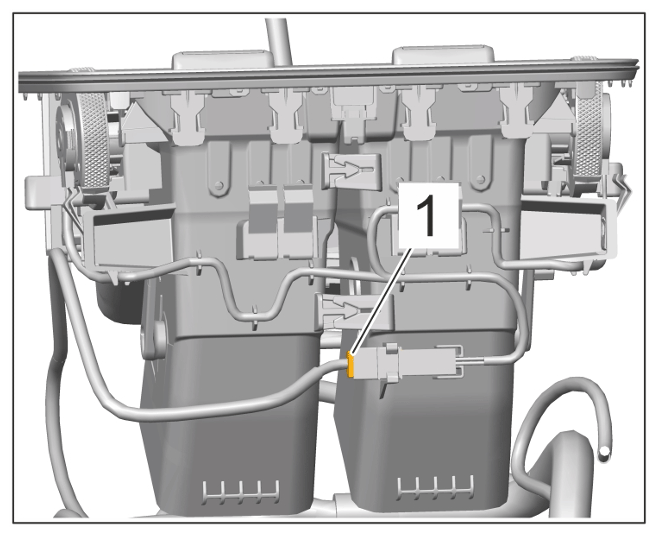

   Electric plug connection

3. Unclip center console trim (rear) -1-  and remove it -Arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

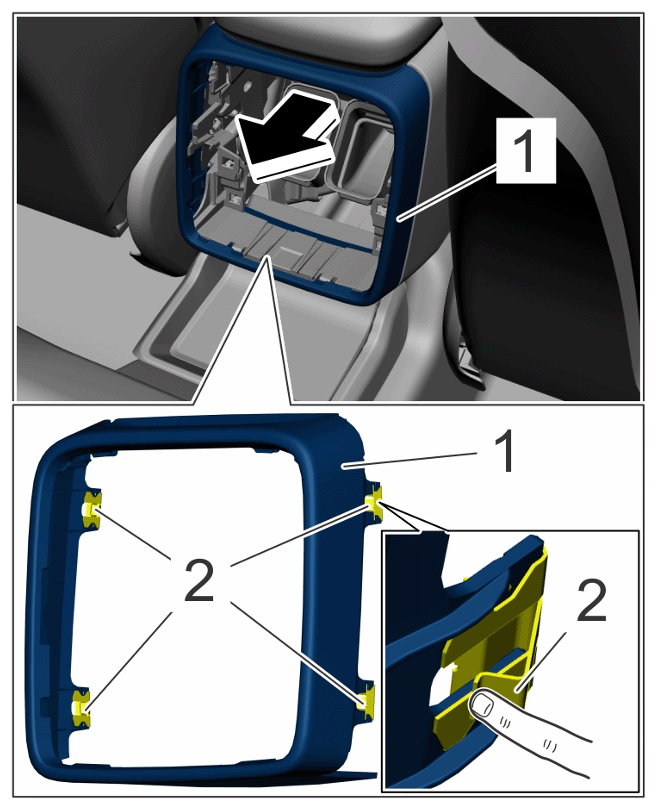

   Centre console trim (rear)

   1. 3.1 Removing metal clips -2-  .
